1
Engine displacement
900
2
Year
2018
3
Trim
RANGER XP 900 BASE / EPS
4
Parts Catalog
BED BOX MOUNTING & LATCH
5
Parts Diagram
Parts Catalog
by
TAILGATE
BED BOX MOUNTING & LATCH
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
20
1
SHORT BOX SUPPORT; BLACK
1020692329
Not Available
2
LATCH BOX WELD; MATTE BLACK
1020691458
Not Available
3
BOX BUMPER
5414343
$10,49 Unit Price incl. VAT
4
BOX BUSHING; LATCH
5434226
$7,34 Unit Price incl. VAT
5
SPRING-LATCH
7044325
$13,64 Unit Price incl. VAT
6
LATCH SPRING
7044324
$13,64 Unit Price incl. VAT
7
SCR-M8X1.25X50 HX/FL-Y
7517793
$10,49 Unit Price incl. VAT
8
RIVET
7621460
$2,09 Unit Price incl. VAT
9
NUT-M8X1.25 HXFLG NYLON INS
7547317
7548028
$5,24 Unit Price incl. VAT
10
SMALL SINGLE LOBE DUMP BOX SHOCK
7044674
7046185
$125,99 Unit Price incl. VAT
11
HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM
7518555
$4,19 Unit Price incl. VAT
12
SCR-TXTH-M6X1.0X45 RIE
7519722
$3,14 Unit Price incl. VAT
13
BOLT
7519650
$7,34 Unit Price incl. VAT
14
HEX FLANGE SCREW 10 MM X 1.25 MM X 80 MM
7519363
7528444
$4,19 Unit Price incl. VAT
15
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
16
HITCH PIN CLIP; .148 X 3 1/16
7661067
$4,19 Unit Price incl. VAT
17
CLEVIS PIN; 1/2 X 1 3/4
7661878
$4,19 Unit Price incl. VAT
18
WASHER .281 X 1.00 X 0.51
7556329
$2,09 Unit Price incl. VAT
19
BOX HANDLE LATCH
5450278
$62,99 Unit Price incl. VAT
20
LIMITER CABLE; DUMP BED
7082244
$20,99 Unit Price incl. VAT

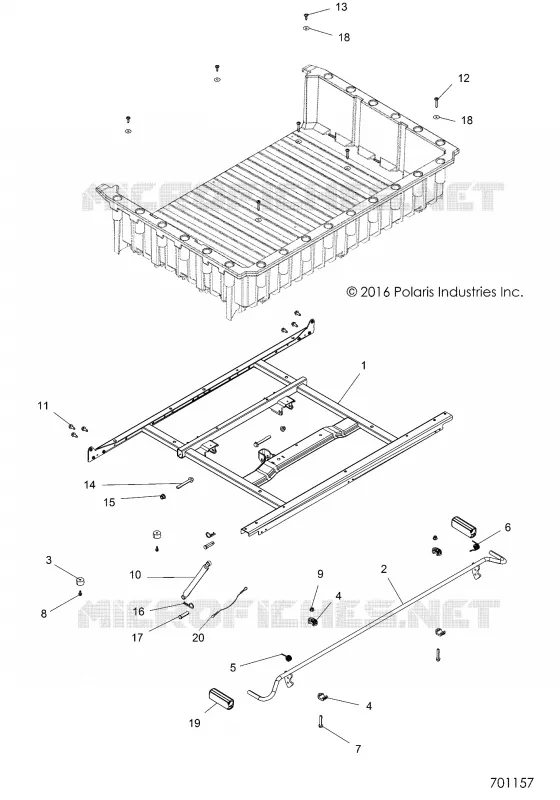

Find the detailed BED BOX MOUNTING & LATCH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
