1
Engine displacement
900
2
Year
2018
3
Trim
RANGER XP 900 BASE / EPS
4
Parts Catalog
ENGINE, ENGINE MOUNTING
5
Parts Diagram
Parts Catalog
HEADLIGHT AND TAILLIGHT
by
EXHAUST
ENGINE, ENGINE MOUNTING
4
5
6
7
8
9
10
10
11
11
12
13
14
15
16
17
1
ENGINE MOUNT WELD; BLACK
1018333329
Not Available
2
ENGINE GEARCASE COUPLER
5137795
5143718
$272,99 Unit Price incl. VAT
3
TRANSMISSION COUPLER BRACKET
5255238
$52,49 Unit Price incl. VAT
4
DRIVELINE ISOLATOR MOUNT
1332955
$136,49 Unit Price incl. VAT
5
M10 X 1.25 X 60 SCREW
7518563
$5,76 Unit Price incl. VAT
6
BOLT-M10X1.5X60MM8.8HEXDRILOCK
7520467
$9,44 Unit Price incl. VAT
7
HEX HEAD SCREW; 8 MM X 1.25 MM X 45 MM
7519097
$3,14 Unit Price incl. VAT
8
HEX FLANGE SCREW 10 MM X 1.25 MM X 40 MM
7519332
$10,49 Unit Price incl. VAT
9
PALNUT
7547030
$9,44 Unit Price incl. VAT
10
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
11
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
12
SCREW M10 X 1.25-6G
7519043
$17,84 Unit Price incl. VAT
13
HEX FLANGE SCREW; 8 MM X 1.25 MM X 60 MM
7519298
$7,34 Unit Price incl. VAT
14
BOLT-M10X1.25X40 HXFLG-OLIVE D
7518595
$10,49 Unit Price incl. VAT
15
WELD NUT PLATE
5259964
$41,99 Unit Price incl. VAT
16
LONG BLOCK KIT; 875
2207361
$10 814,99 Unit Price incl. VAT
17
WASHER
7556153
$3,66 Unit Price incl. VAT

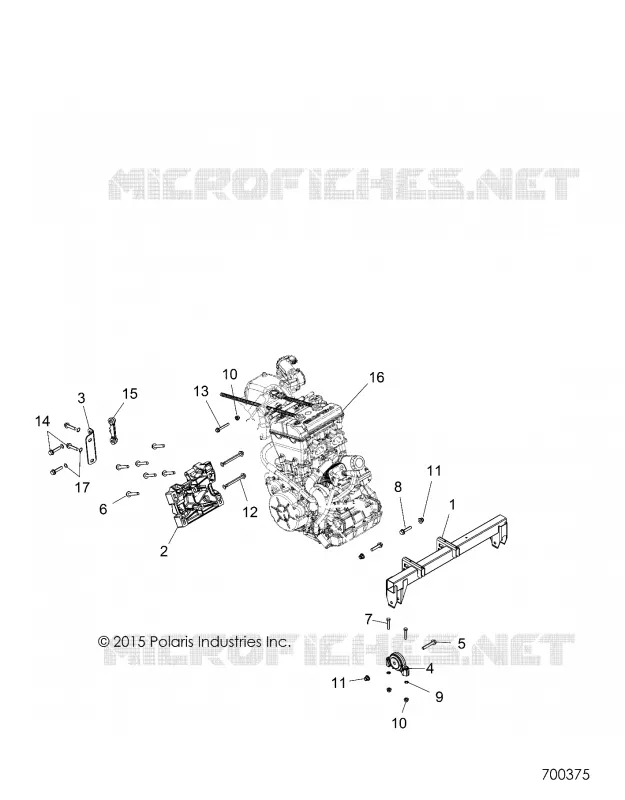

Find the detailed ENGINE, ENGINE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
