1
Engine displacement
800
2
Year
2018
3
Trim
800 AXYS SKS 146
4
Parts Catalog
SUSPENSION, IFS SHOCK W/RESERVOIR
5
Parts Diagram
Parts Catalog
ENGINE, WATER PUMP
by
SUSPENSION, REAR TORQUE ARM
SUSPENSION, IFS SHOCK W/RESERVOIR
-
1
2
3
4
5
6
7
7
8
8
9
10
11
12
13
14
15
16
17
18
19
21
22
23
24
25
26
26
27
27
28
29
30
31
31
32
33
34
35
36
37
38
38
39
40
41
42
43
43
1
2
3
-
IFS PIGGYBACK SHOCK; WALKER EVANS
7044302
9999999
Not Available
1
O-RING BODY
1800027
$3,66 Unit Price incl. VAT
2
SEAL HEAD ASSEMBLY
1800403
$220,49 Unit Price incl. VAT
3
SPRING RETAINER
1800046
$68,24 Unit Price incl. VAT
4
SLEEVE; 1.15L
1800405
$62,99 Unit Price incl. VAT
5
BUSHING
1800406
$9,44 Unit Price incl. VAT
6
TEFLON WEAR BAND
1800297
$62,99 Unit Price incl. VAT
7
CRIMP NUT 3/8 IN
1800031
$7,34 Unit Price incl. VAT
8
BODY O-RING
1800030
$3,66 Unit Price incl. VAT
9
BEVELED SPRING RETAINER RING
1800658
$89,24 Unit Price incl. VAT
10
BODY; IFS 8.495L BLK 1400115
1800653
9999999
Not Available
11
SHAFT; .50 X 8.67
1800732
9999999
Not Available
12
END BEARING
1800040
$152,24 Unit Price incl. VAT
13
END CAP SNAP RING
1800041
$15,74 Unit Price incl. VAT
14
BUMPER SHAFT; .62
1800462
$68,24 Unit Price incl. VAT
15
WIPER SEAL
1800295
$26,24 Unit Price incl. VAT
16
SEAL; U-CUP
1800294
$47,24 Unit Price incl. VAT
17
O-RING
1800095
$2,09 Unit Price incl. VAT
18
SHAFT BUSHING
1800292
9999999
Not Available
19
LOOP SHAFT W GRV (1200115)
1800540
$257,24 Unit Price incl. VAT
21
STUD; CLICKER (400613)
1800352
$57,74 Unit Price incl. VAT
22
KNOB; CLICKER BLACK
1800418
$173,24 Unit Price incl. VAT
23
BODY RES 3.75L BLK(1020334)
1800419
9999999
Not Available
24
PISTON; RES; 2 (620204)
1800355
$152,24 Unit Price incl. VAT
25
PISTON BAND
1800185
$83,99 Unit Price incl. VAT
26
O-RING
1800184
$10,49 Unit Price incl. VAT
27
O-RING BLEED SCREW
1800210
$3,14 Unit Price incl. VAT
28
BLEED SCREW (10)
1800043
$12,59 Unit Price incl. VAT
29
END CAP;RES 2 BLK (1020207)
1800420
9999999
Not Available
30
NEEDLE VALVE
1800329
$62,99 Unit Price incl. VAT
31
O-RING (WER-400614)
1800501
$13,64 Unit Price incl. VAT
32
SCREW-BUTTON HEAD 8/32(10)
1800109
$6,29 Unit Price incl. VAT
33
PISTON CONVEX
1800001
9999999
Not Available
34
RING-SNAP
1800159
$10,49 Unit Price incl. VAT
35
SCREW 10X5/8 BTN SS (500603)
1800357
$6,29 Unit Price incl. VAT
36
CLICKER PISTON
1800353
$173,24 Unit Price incl. VAT
37
BOLT; CLICKER (900606)
1800354
$23,09 Unit Price incl. VAT
38
BALL-D-TENT(10)
1800127
$12,59 Unit Price incl. VAT
39
SNAP RING CLICKER
1800359
$6,29 Unit Price incl. VAT
40
O-RING CLICKER HSG (900605)
1800358
9999999
Not Available
41
SPRING-D-TENT(10)
1800128
$20,99 Unit Price incl. VAT
42
3/8 AN WASHER (10)
1800050
$7,34 Unit Price incl. VAT
43
MATTE BLACK SPRING 10.25
7043460458
Not Available
43
SPRG-COMP IFS 10.25 100# WHT
7043460133
Not Available

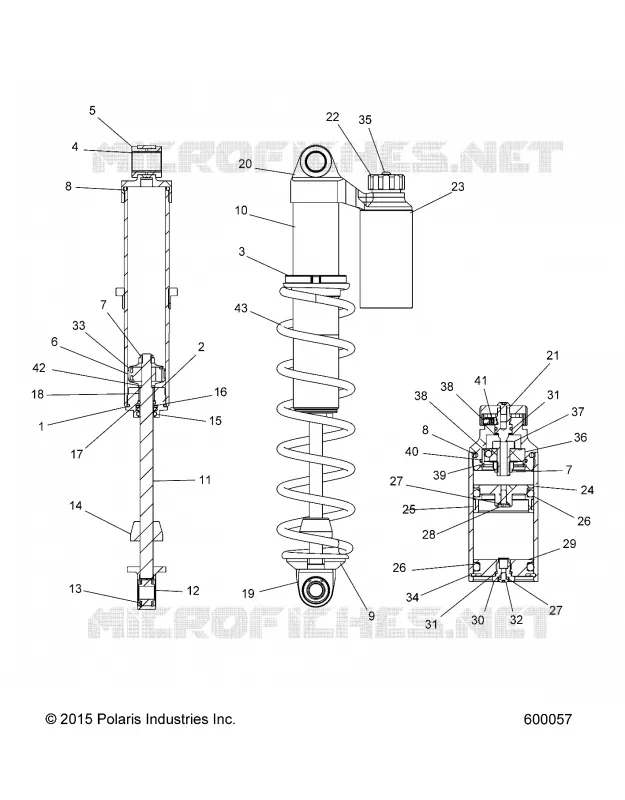

Find the detailed SUSPENSION, IFS SHOCK W/RESERVOIR POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
