1
Engine displacement
800
2
Year
2018
3
Trim
800 AXYS SKS 146
4
Parts Catalog
ENGINE, EXHAUST VALVE ASM.
5
Parts Diagram
Parts Catalog
DECALS, SNOW CHECK, VELOCITY BLUE SIDE PANEL W/LIME SQUEEZE ACCENT SIDE PANEL
by
ENGINE, OIL BOTTLE ASM.
ENGINE, EXHAUST VALVE ASM.
-
1
2
3
12
12
6
7
12
9
10
11
12
13
14
14
15
16
16
17
18
19
20
21
-
EXHAUST VALVE ASSEMBLY KIT
2205698
$703,49 Unit Price incl. VAT
1
CABLE-EV VALVE PUSH/PULL
7081870
7082504
$99,74 Unit Price incl. VAT
2
SCR-HXSOC-M6X1.0X60 8.8 ZY3
7519885
$6,29 Unit Price incl. VAT
3
COVER-EXH VALVE
5632865
$20,99 Unit Price incl. VAT
4
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
5
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
6
NYLOK NUT
7546703
$2,09 Unit Price incl. VAT
7
SCR-SH M6X1.0X30 8.8 ZPY D204
7519058
$7,34 Unit Price incl. VAT
8
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
9
BASE SEAL; CYLINDER
5414680
$13,64 Unit Price incl. VAT
10
EV SPRING; UPPER
7044014
$19,94 Unit Price incl. VAT
11
EXHAUST POWER VALVE
5138524
$99,74 Unit Price incl. VAT
12
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
13
EV COOLANT HOSE SUBASSEMBLY
1205097
$73,49 Unit Price incl. VAT
14
SPRINGBAND CLAMP;12.5/8.4
7082187
$4,19 Unit Price incl. VAT
15
ACTUATOR-EV; SMART
4014355
9999999
Not Available
16
BOLT-M6X1.0X15 PH/TX-OLIVE D
7518656
$7,34 Unit Price incl. VAT
17
ACTUATOR MOUNT; MACHINED; EV
5139022
$68,24 Unit Price incl. VAT
18
SPACER-ISOLATION BUSHING
5139301
$13,64 Unit Price incl. VAT
19
ISOLATION GROMMET
5415111
$20,99 Unit Price incl. VAT
20
HEX FLANGE SCREW; 6 MM X 1.0 MM X 12 MM
7519145
$7,34 Unit Price incl. VAT
21
CLAMP-VINYL COATED
7080998
$6,29 Unit Price incl. VAT

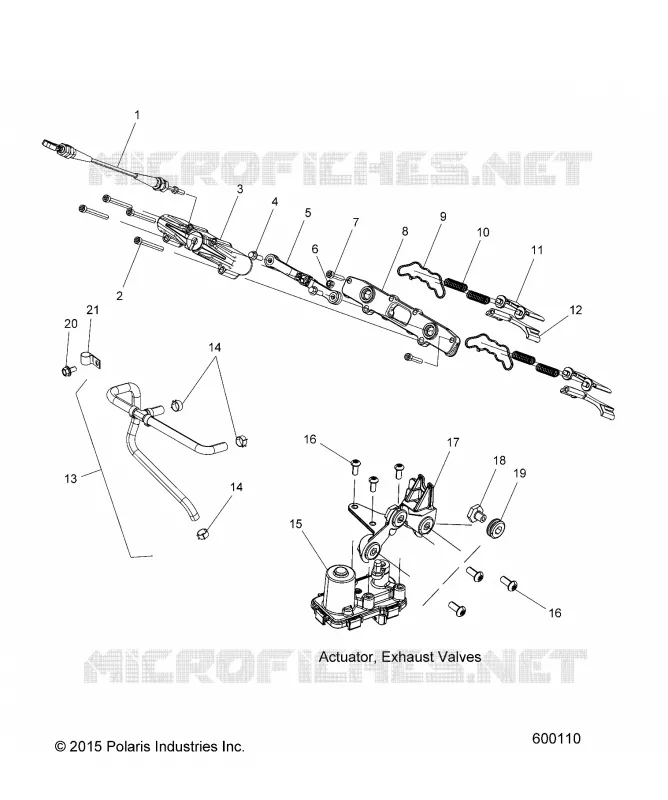

Find the detailed ENGINE, EXHAUST VALVE ASM. POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
