1
Engine displacement
440
2
Year
1995
3
Trim
EURO 440 SKS - E952560
4
Parts Catalog
NOSEPAN ASSEMBLY 440 0952760, 440 SKS 0952560, AND EUROPEAN 440 SKS E95256 (4929032903A011)
5
Parts Diagram
Parts Catalog
NOSEPAN ASSEMBLY 440 0952760, 440 SKS 0952560, AND EUROPEAN 440 SKS E95256 (4929032903A010)
by
STEERING ASSEMBLY 440 0952760, 440 SKS 0952560, AND EUROPEAN 440 SKS E9525 (4929032903B004)
NOSEPAN ASSEMBLY 440 0952760, 440 SKS 0952560, AND EUROPEAN 440 SKS E95256 (4929032903A011)
1
BUMPER FRONT
2670146067
Not Available
2
SCREW
7512307
$7,34 Unit Price incl. VAT
3
BRACE HD.SUPP.LOW BLK.
5222889067
Not Available
4
BOLT
7512298
9999999
Not Available
5
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
6
FLEXLOC NUT
7542103
$10,49 Unit Price incl. VAT
7
MOUNT HINGE BLK.
1011982067
Not Available
8
HINGE ASMHOODBLK.
2635013067
Not Available
9
SCREW(10)
7512310
$4,19 Unit Price incl. VAT
10
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
11
NUT FLEX-LOC
7542303
9999999
Not Available
12
WASHER WROUGHT
7558302
$3,14 Unit Price incl. VAT
13
CARRIAGE BOLT
7512193
$4,19 Unit Price incl. VAT
14
SUPPORT LH BUMPER BLK.
1011968067
Not Available
14
SUPPORT RH BUMPER BLK.
1011969067
Not Available
15
WASHER 13/64X1/2X18GA FL-Y (10
7558212
$1,56 Unit Price incl. VAT
16
TAPE FOIL 215 CM.(85 IN.) (Service)
8360043215
Not Available
17
BRKT RH SIDEPANEL
5240770
9999999
Not Available
18
NUT RETAINER
7542146
9999999
Not Available
19
SHIELDFASTENER
5240769
9999999
Not Available
20
RIVET
7621485
$2,09 Unit Price incl. VAT
21
RIVET
7621318
9999999
Not Available
22
RIVET
7621433
$2,09 Unit Price incl. VAT
23
VIBRATION DAMPENER
5410467
9999999
Not Available
24
BOOT; EXHAUST
5410502
9999999
Not Available
25
BRKT R.MUFFLER SUPPORT
5240715067
Not Available
26
RIVET
7621467
$2,09 Unit Price incl. VAT
27
POP RIVET
7621330
$2,09 Unit Price incl. VAT
28
BELT RETAINER CLIP
5222769
$15,74 Unit Price incl. VAT
29
DECAL ENG/CLUTCH [No Longer Available]
7072871
Not Available
30
SCREW
7515352
9999999
Not Available
31
KNOB; BACKREST
5630386067
Not Available
32
SPACER
5431285
9999999
Not Available
33
KNOB ASMBACKREST
2670130
9999999
Not Available
34
GUARD CLUTCH (EURO)
1011999
9999999
Not Available
34
GUARD CLUTCH
5222903
Not Available
35
RIVET
7621429
$2,09 Unit Price incl. VAT
36
HINGE
5210728
9999999
Not Available
37
MT FR.CLUTCHGUARD
5222904
Not Available
38
BRKT LH SIDEPANEL BLK.
5222897067
Not Available
39
POP RIVET
7621402
$2,09 Unit Price incl. VAT
40
ROSEBUD CLIP
4020139
$9,44 Unit Price incl. VAT
41
RIVET
7621472
$2,09 Unit Price incl. VAT
42
FLANGE NUT
7542321
$2,09 Unit Price incl. VAT
43
RIVET 3/16 X .402
7621432
$2,09 Unit Price incl. VAT
44
RIVET
7661637
$2,09 Unit Price incl. VAT
45
SUPPORT FR.MUFFLER BLK.
5240720067
Not Available

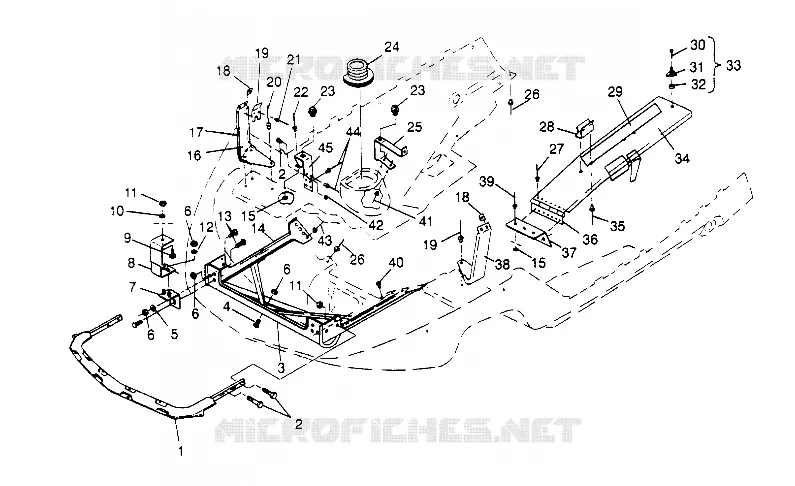

Find the detailed NOSEPAN ASSEMBLY 440 0952760, 440 SKS 0952560, AND EUROPEAN 440 SKS E95256 (4929032903A011) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
