1
Engine displacement
440
2
Year
1995
3
Trim
EURO 440 SKS - E952560
4
Parts Catalog
ENGINE MOUNTING 440 0952760, 440 SKS 0952560, AND EUROPEAN 440 SKS E952560 (4929032903C003)
5
Parts Diagram
Parts Catalog
SUSPENSION ASSEMBLY 440 0952760, 440 SKS 0952560, AND EUROPEAN 440 SKS E95 (4929032903B011)
by
EXHAUST SYSTEM 440 0952760, 440 SKS 0952560, AND EUROPEAN 440 SKS E952560 (4929032903C004)
ENGINE MOUNTING 440 0952760, 440 SKS 0952560, AND EUROPEAN 440 SKS E952560 (4929032903C003)
1
BOLT
7512565
9999999
Not Available
2
WASHER LOCK
7575202
$9,44 Unit Price incl. VAT
3
WASHER CLUTCH RETAINER
5010278
5010287
$18,89 Unit Price incl. VAT
4
O-RING
5410507
$2,09 Unit Price incl. VAT
5
SPACER
5020513
$60,89 Unit Price incl. VAT
6
PRESSURE CAP
2511155
9999999
Not Available
7
SPARKPLUG
3070166
$7,34 Unit Price incl. VAT
8
CONDUIT CONVOL(26 CM)
401005126
Not Available
9
ENG.(S.B.)EC45PL-01/02 [No Longer Available]
3084624
Not Available
10
HANDLE RECOIL
5431499
9999999
Not Available
11
SCREW
7512530
$10,49 Unit Price incl. VAT
12
WASHER
7555740
$3,14 Unit Price incl. VAT
13
MOUNT ENGINE
5410390
9999999
Not Available
14
SPACER (MTR.MT.)
5332778
9999999
Not Available
15
NUT FLANGE
7542522
$10,49 Unit Price incl. VAT
16
PLATE ENG.MT.
5222867
Not Available
17
SPRING LOCK WASHER
7553101
$7,34 Unit Price incl. VAT
18
BOLT
7512539
$7,34 Unit Price incl. VAT
19
FLEXLOC NUT
7542411
$6,29 Unit Price incl. VAT
20
WASHER
7555721
$2,09 Unit Price incl. VAT
21
MOUNT
3110022
9999999
Not Available
22
WASHER
7555720
7555806
$1,56 Unit Price incl. VAT
23
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
24
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
25
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
26
FUEL LINE; 600 CM
8450040600
Not Available
27
CABLE THROTTLE W/OIL
7080552
9999999
Not Available
28
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
29
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
30
FUEL FILTER
2530008
9999999
Not Available
31
FUEL SHUT OFF VALVE
7052039
9999999
Not Available

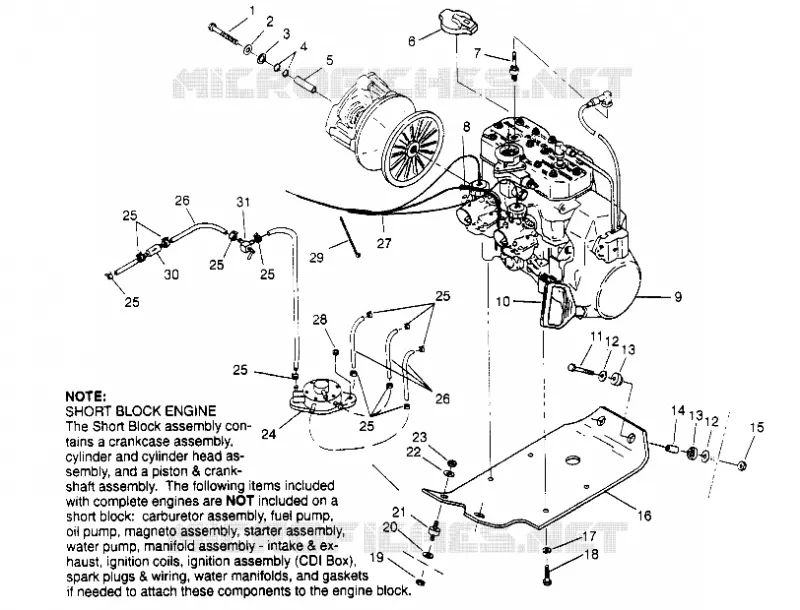

Find the detailed ENGINE MOUNTING 440 0952760, 440 SKS 0952560, AND EUROPEAN 440 SKS E952560 (4929032903C003) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
