SHOCK FRONT TRACK FOX
7041847
Not Available
1
CAP ASM BODY
1500315
Not Available
2
O-RING .103W-1.549ID
1500108
$15,74 Unit Price incl. VAT
3
PISTON-FLOATING
1500187
9999999
Not Available
4
NUT LOCK
1500016
$23,09 Unit Price incl. VAT
5
PLATE BACKUP
1500015
9999999
Not Available
6
PLATE TOP OUT
1500017
9999999
Not Available
7
EYELET BASE
1500164
9999999
Not Available
8
SHAFT .498X6.25 TLG
1500321
9999999
Not Available
9
URETHANE U-CUP
1500266
$52,49 Unit Price incl. VAT
10
WIPER.-4300 URETH
1500268
5433298
$23,09 Unit Price incl. VAT
11
O-RING INNER
1500021
9999999
Not Available
12
SCREW
1500070
9999999
Not Available
13
BALL; (FOX)
1500071
$10,49 Unit Price incl. VAT
14
BEARING-ASSEMBLY
1500186
9999999
Not Available
15
O-RING; .103 X 1.299
1500020
9999999
Not Available
16
KIT VALV.PISTON
2200618
9999999
Not Available
17
DAMPER; PISTON RING
1500002
9999999
Not Available
18
BODY 6.15 TLG 4.7 THD
1500318
9999999
Not Available
19
O-RING ENDCAP
1500003
9999999
Not Available
20
FLOATING PISTON RING
1500006
$34,64 Unit Price incl. VAT
21
O-RING DRUM OUTER
1500022
9999999
Not Available
22
SCREW
1500018
9999999
Not Available
23
SLEEVE .56X.81X1.68
1500312
$40,94 Unit Price incl. VAT
24
BUSHING .35ILG .82TLG
1500308
$10,70 Unit Price incl. VAT
25
RING PRELOAD AL. 1.8 FLG
1500323
9999999
Not Available
26
BUSHING .35ILG .595TLG
1500309
9999999
Not Available
27
SLEEVE .56 X .81 X 1.2
1500310
$40,94 Unit Price incl. VAT

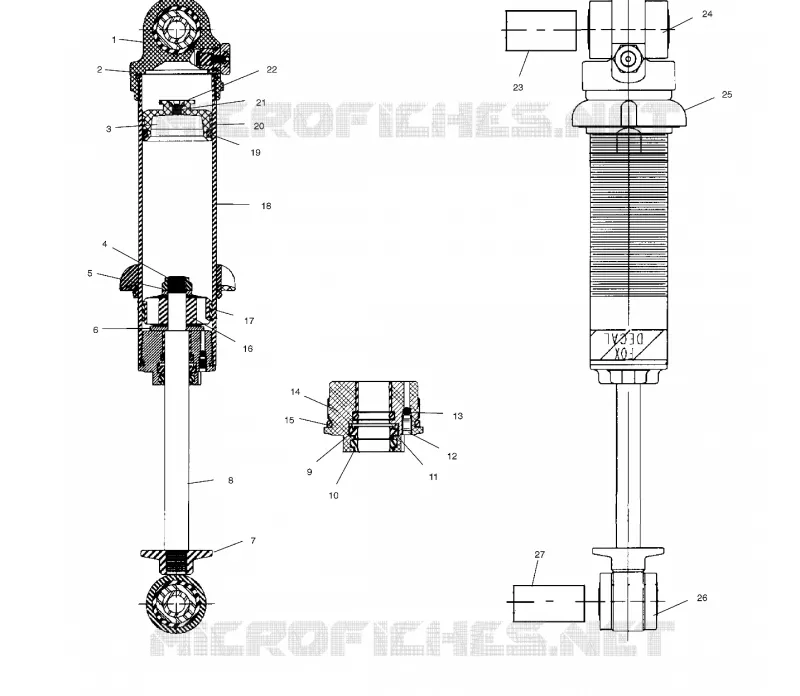

Find the detailed FOX SHOCK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
