Engine displacement
500
2
Year
2001
3
Trim
500 XC SP
4
Parts Catalog
ENGINE MOUNTING
5
Parts Diagram
Parts Catalog
EXHAUST
by
CRANKCASE
ENGINE MOUNTING
1
2
3
4
5
6
7
8
9
9
9
9
9
9
9
9
10
11
12
13
14
14
14
15
15
15
16
17
18
19
20
20
20
20
21
21
22
23
24
24
24
24
24
24
25
26
26
27
28
1
2
3
4
5
6
7
8
9
9
9
9
9
9
9
9
10
11
12
13
14
14
14
15
15
15
16
17
18
19
20
20
20
20
21
21
22
23
24
24
24
24
24
24
25
26
26
27
28
1
2
3
4
5
6
7
8
9
9
9
9
9
9
9
9
10
11
12
13
14
14
14
15
15
15
16
17
18
19
20
20
20
20
21
21
22
23
24
24
24
24
24
24
25
26
26
27
28
1
SCREW M14X1.5X215
7517501
7518412
$52,49 Unit Price incl. VAT
2
WASHER
7556003
$11,54 Unit Price incl. VAT
3
WASHER CLUTCH RET.
5131872
5132441
$41,99 Unit Price incl. VAT
4
SPARK PLUG
3070190
$7,34 Unit Price incl. VAT
5
SHORTBLK S50-44-PO-A1 EV The Short Block assembly contains a crankcase assembly cylinder and cylinder head assembly and a piston and crankshaft assembly. Prior authorization is required for warran
2201657
Not Available
6
HANDLE RECOIL
5431499
9999999
Not Available
7
NYLOK NUT
7542451
$2,09 Unit Price incl. VAT
8
WASHER FLAT(10)
7555893
$1,56 Unit Price incl. VAT
9
STRAP-ENGINE MOUNTS44RH
5244952
9999999
Not Available
9
STRAP-ENGINE MOUNTS44LH
5244951
9999999
Not Available
10
MOUNT-ENGINE 3/8-16 50 DUR
3021290
9999999
Not Available
11
BOLT
7512539
$7,34 Unit Price incl. VAT
12
SPRING LOCK WASHER
7553101
$7,34 Unit Price incl. VAT
13
BRKT-ENGINE MOUNT;RH;FORMED
5245044
9999999
Not Available
14
FLAT WASHER
7555806
$1,56 Unit Price incl. VAT
15
FLEX LOCK; NUT
7547008
$11,54 Unit Price incl. VAT
16
WELD-ENG MOUNT BRKT;LH
1013397
9999999
Not Available
17
SCR-3/8-16X1-P30-SPEC-Y
7517854
$10,49 Unit Price incl. VAT
18
ENGINE MOUNT
3021206
9999999
Not Available
19
THROTTLE CABLE
7080867
$57,95 Unit Price incl. VAT
20
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
21
DESC NOT_AVAILABLE
836005215
Not Available
22
FUEL LINE; 600 CM
8450040600
Not Available
23
PUMPFUEL1 OUTLET
2520135
9999999
Not Available
24
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
25
FUEL LINE; 1/4 ID
84500031525
Not Available
26
LINE; FUEL;600CM;SVC
8350018600
Not Available
27
FUEL VALVE PLASTIC 90 DEGREES 1/4 HOSE
7052249
$52,49 Unit Price incl. VAT
28
FUEL LINE ETHER RED 5/16# Substituted by 8350017-160
8350017600
Not Available

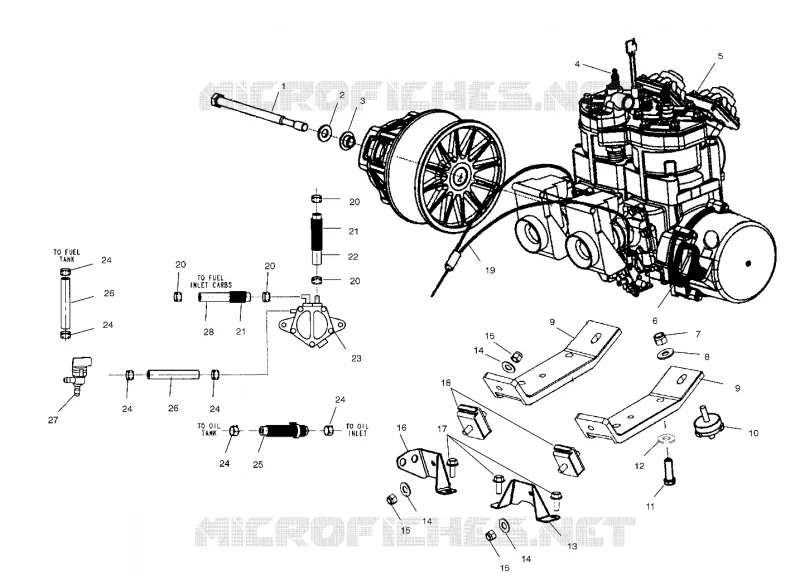

Find the detailed ENGINE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
