STEERING for POLARIS RANGER 1000 DIESEL EU from 2016

STEERING

1

EPAS MOUNT WELD; BLACK

1021526329

Not Available

2

STEERING WHEEL; 14 IN.

1823623

$246,74 Unit Price incl. VAT

3

STEERING SHAFT WITH JOINT; LOWER

1823667

$241,49 Unit Price incl. VAT

4

STEERING SHAFT; UPPER

1823891

$272,99 Unit Price incl. VAT

5

STEERING GEAR BOX ASSEMBLY

1823902

$1 018,49 Unit Price incl. VAT

6

ASM-TILT STEER RVTD M10 EU BLK

1824449458

Not Available

7

ASM-POWER STEERING;RANGER

2413397

9999999

Not Available

8

STEERING WHEEL CAP

5436536

$62,99 Unit Price incl. VAT

9

COLLAR-STEERING LOCK;MATTE BLK

5632295458

Not Available

10

OIL LOCKING SHOCK ASSEMBLY

7044098

$178,49 Unit Price incl. VAT

11

LOCK-STEERING 1000COMBINATIONS

7082045

9999999

Not Available

12

BOLT 10 MM X 1.25 MM X 65 MM

7517909

$10,49 Unit Price incl. VAT

13

SCR-M5X.8X10 TX BTN PIN-IN-HD

7518457

$4,19 Unit Price incl. VAT

14

HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM

7518555

$4,19 Unit Price incl. VAT

15

HEX FLANGE BOLT OLIVE 10MMX1.25MMX20MM

7518558

$7,34 Unit Price incl. VAT

16

HEX FLANGE SCREW 10 MM X 1.50 MM X 35 MM

7518644

$9,44 Unit Price incl. VAT

17

BOLT-M10X1.25X130 HXFLG-OLIVED

7518665

$25,19 Unit Price incl. VAT

18

HEX FLANGE SCREW; 8 MM X 1.25 MM X 35 MM

7519052

$3,14 Unit Price incl. VAT

19

BOLT-SHOULDER M8-15 M6X1.0-BLK

7519980

$13,64 Unit Price incl. VAT

20

NYLOK NUT

7546703

$2,09 Unit Price incl. VAT

21

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

22

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

23

NUT-NY INS;M10X1.5;HEX;ZINC;YW

7547385

$2,09 Unit Price incl. VAT

24

NUT-HEX-M16X2 8 ZC NYL

7547506

$7,34 Unit Price incl. VAT

25

STEERING BUSHING

7556675

$24,14 Unit Price incl. VAT

26

COTTER PIN

7661203

$2,09 Unit Price incl. VAT

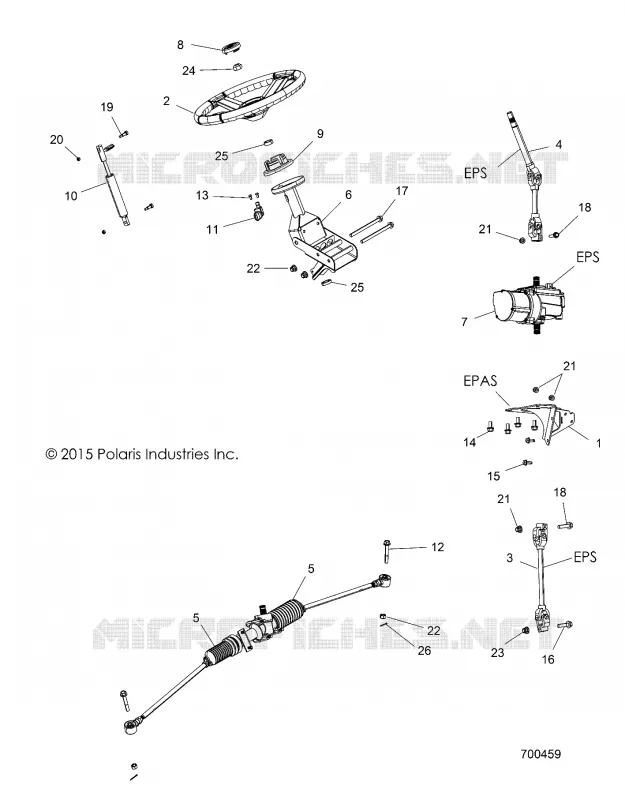

Find the detailed STEERING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
