REAR SUSPENSION for POLARIS RANGER 1000 DIESEL EU from 2016

REAR SUSPENSION

1

SCREW M10 X 1.25-6G

7519043

$17,84 Unit Price incl. VAT

2

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

3

PIVOT SHAFT

5138797

$16,79 Unit Price incl. VAT

4

STANDARD BUSHING; ORV

5439874

$4,19 Unit Price incl. VAT

4

HD BUSHING W/ SEAL ASSEMBLY(4)

1543367

$19,94 Unit Price incl. VAT

5

RETAINER SPRING; STEEL

5251753

$19,94 Unit Price incl. VAT

6

FLANGE SCREW

7519306

$10,49 Unit Price incl. VAT

7

CONTROL ARM WELD UPPER REAR RIGHT MT BLK

1018466458

Not Available

8

CONTROL ARM WELD; REAR; UPPER; LEFT

1018465458

Not Available

9

CONTROL ARM WELD REAR LOWER RIGHT MT BLK

1018461458

Not Available

10

CONTROL ARM; LOWER; LEFT SIDE; MT BLK

1018460458

Not Available

11

REAR SHOCK

7043753

$230,99 Unit Price incl. VAT

12

SPR-200-280# 12.4FL 2ID;M.BLK

7044138458

Not Available

13

CAM ADJUSTING SPRING STEEL

5253768

$68,24 Unit Price incl. VAT

14

PIVOT SHAFT

5138794

$10,49 Unit Price incl. VAT

15

HEX FLANGE BOLT OLIVE 10MMX1.25MMX20MM

7518558

$7,34 Unit Price incl. VAT

16

WHEEL BEARING CARRIER; LEFT

5138501

$414,74 Unit Price incl. VAT

17

RIGHT HAND WHEEL BEARING CARRIER

5138502

$414,74 Unit Price incl. VAT

18

WHEEL BEARING; 40 MM X 74 MM X 40 MM

3514635

$73,49 Unit Price incl. VAT

19

INTERNAL RETAINING RING

7710780

$17,84 Unit Price incl. VAT

19

RETAINING RING

7710440

$18,89 Unit Price incl. VAT

20

SCREW

7519365

$25,19 Unit Price incl. VAT

21

PIVOT SHAFT

5138796

$23,09 Unit Price incl. VAT

22

SCREW

7519042

$17,84 Unit Price incl. VAT

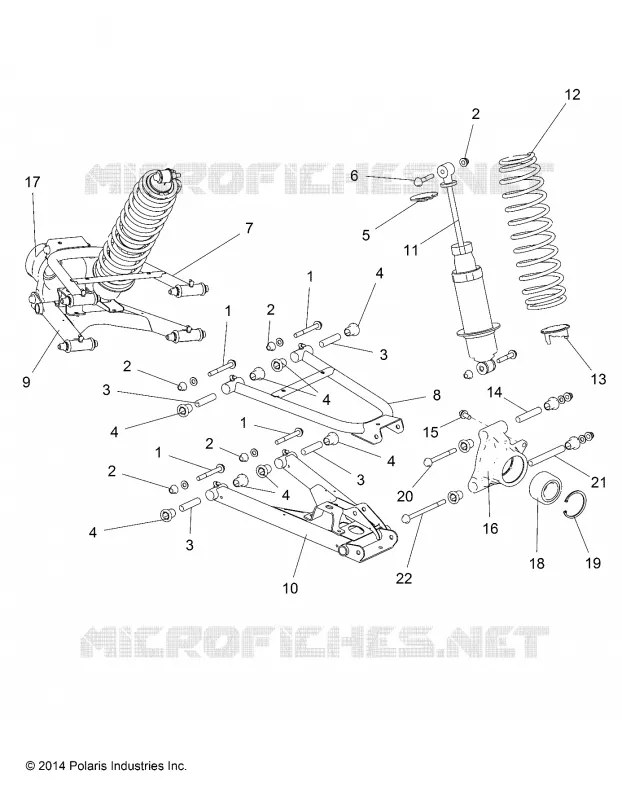

Find the detailed REAR SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
