1
Engine displacement
2400
2
Year
2018
3
Trim
SLINGSHOT SL / SLR / SLR LE
4
Parts Catalog
FRONT WING
5
Parts Diagram
Parts Catalog
BRAKES, MASTER CYLINDER AND ABS MODULE
by
WHEELS, FRONT
FRONT WING
1
1
1
1
1
2
2
2
3
4
4
4
4
4
4
4
4
4
4
4
5
6
6
7
7
7
7
7
7
7
7
7
7
7
8
8
9
1
BOLT M6 X 1.0 X 15
7520011
$4,19 Unit Price incl. VAT
2
U-CLIP SPEED NUT
7081305
$3,66 Unit Price incl. VAT
3
WING FRONT LOWER
5451990
5458826
$1 102,49 Unit Price incl. VAT
4
WING FRONT UPPER RIGHT
5439700727
Not Available
4
WING FRT UPR RHT TTNM MET GLOSS
5439700653
Not Available
4
WING FRONT UPPER RIGHT ORG MDN
5439700589
Not Available
4
WING FRT UPR RIGHT COMPETITION YELLOW
5439700743
Not Available
4
WING FRONT UPPER RIGHT
5439700520
Not Available
4
WING-FRNT UPPER RH PURPLE THND
5439700381
Not Available
4
WING FRT UPR RHT ELECTRIC BLUE METALLIC
5439700696
Not Available
4
WING-FRT UPPER RH MATTE PRL WH
5439700675
Not Available
4
WING-FRONT UPPER RH MNSO
5439700625
Not Available
4
WING UPPER RIGHT CRUISER BLACK
5439700266
Not Available
4
WING; FRONT; UPPER; RIGHT; DRAGON GREEN
5439700740
Not Available
5
GRILL; FRONT
5439864
9999999
Not Available
6
SCREW
7512026
$2,09 Unit Price incl. VAT
7
WING FRONT UPPER LEFT SUNSET RED
5439699520
Not Available
7
WING-FRONT UPPER LH MNSO
5439699625
Not Available
7
WING FRONT UPPER LEFT ORANGE MADNESS
5439699589
Not Available
7
WING; FRONT; UPPER; LEFT; DRAGON GREEN
5439699740
Not Available
7
WING-FRONT UPPER LH CMP YLW
5439699743
Not Available
7
WING FRT UPR LFT TTNM MET GLOSS
5439699653
Not Available
7
WING-FRT UPPER LH PURPLE THNDR
5439699381
Not Available
7
WING-FRT UPPER LH MATTE PRL WH
5439699675
Not Available
7
WING FRT UPR LEFT ELECTRIC BLUE METALLIC
5439699696
Not Available
7
WING FRONT UPPER LEFT
5439699727
Not Available
7
WING FRONT UPPER LEFT CRUISER BLACK
5439699266
Not Available
8
SCREW M6 X 1.0; L-20MM
7516822
$4,19 Unit Price incl. VAT
9
HOOD ADJUSTMENT BUMPER
5414577
$17,84 Unit Price incl. VAT

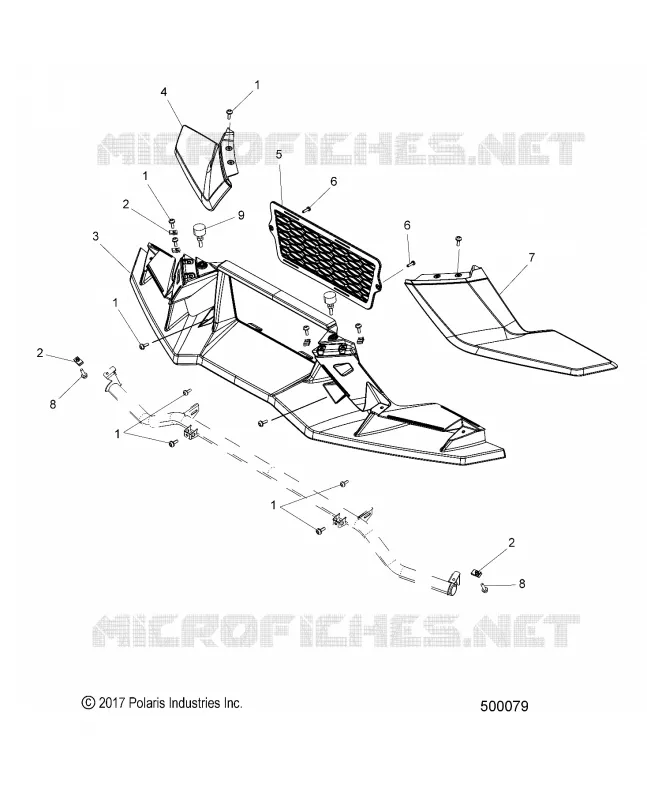

Find the detailed FRONT WING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
