1
Engine displacement
2400
2
Year
2018
3
Trim
SLINGSHOT SL / SLR / SLR LE
4
Parts Catalog
FUEL SYSTEM, FUEL TANK ASM.
5
Parts Diagram
Parts Catalog
WIRE HARNESS
by
REAR WHEEL

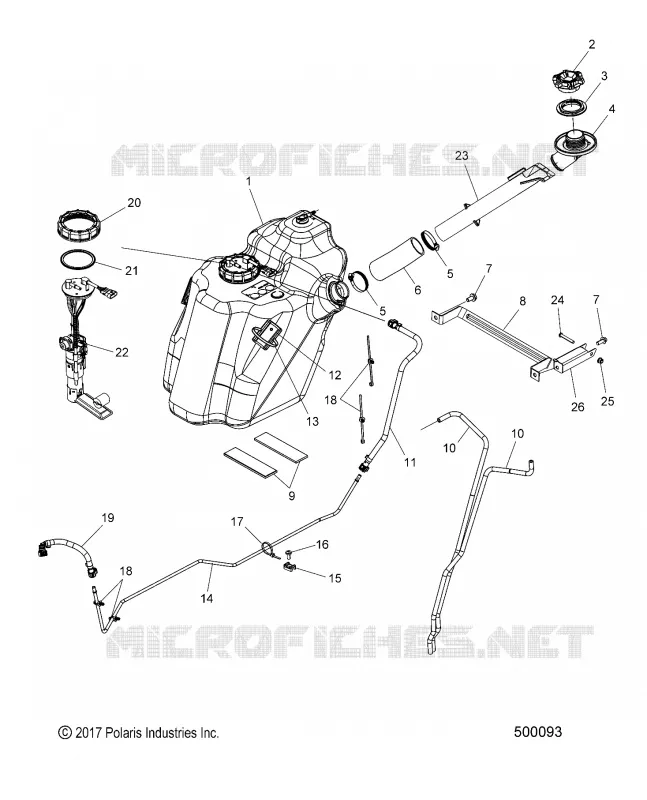

FUEL SYSTEM, FUEL TANK ASM.
1
2
2
2
3
4
5
5
6
7
7
8
9
10
10
11
12
13
14
15
16
13
18
18
19
20
21
22
23
24
25
26
1
FUEL TANK WELD
1018856
$3 863,99 Unit Price incl. VAT
2
NON VENTER FUEL CAP; BLACK PEARL
2521278666
Not Available
2
FUEL CAP; NON VENTED
2521278
$89,24 Unit Price incl. VAT
2
NON VENTED FUEL CAP; LIME SQUEEZE
2521278630
Not Available
3
NUT-FILLER NECK
5435156
$9,44 Unit Price incl. VAT
4
FILLER NECK FUEL CAP
2521383
5465067
$68,24 Unit Price incl. VAT
5
CLAMP BAND; NARROW
7080413
$5,76 Unit Price incl. VAT
6
HOSE-FUEL FILL
5414709
$115,49 Unit Price incl. VAT
7
HEX FLANGE HEAD SCREW; 10 MM X 25 MM
7518908
$3,14 Unit Price incl. VAT
8
STRAP-FUEL TANK
5262540
$52,49 Unit Price incl. VAT
9
PAD-FUEL TANK;MNT BRKT
5813873
$36,74 Unit Price incl. VAT
10
HOSE-FUEL FILL OVERFLOW
5414578
5526651
Not Available
11
TANK FUEL LINE
5414454
9999999
Not Available
12
PAD-FUEL TANK; FRAME TUBE
5814171
$36,74 Unit Price incl. VAT
13
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
14
FUEL LINE; FRAME
8450181
9999999
Not Available
15
CLIP-CABLE TIE
5439713
$9,44 Unit Price incl. VAT
16
SCR-M6X1X14 PN/TX TRI-LOB
7518914
$6,29 Unit Price incl. VAT
17
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
18
ROUTING CLIP
7081496
$9,44 Unit Price incl. VAT
19
ENGINE FUEL LINE
5416285
9999999
Not Available
20
MASON JAR NUT
5437138
$68,24 Unit Price incl. VAT
21
GASKET-PFA RIBBED
5413451
$20,99 Unit Price incl. VAT
22
FUEL PUMP
2521242
$839,99 Unit Price incl. VAT
23
INSERT-FUEL FILL
5450366
$68,24 Unit Price incl. VAT
24
SCR-HXBH-M8X1.25X55 10.9 ZY3
7520293
$10,49 Unit Price incl. VAT
25
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
26
REAR BRACE; SUB FRAME; BLACK
5260730329
Not Available

Find the detailed FUEL SYSTEM, FUEL TANK ASM. POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
