Engine displacement
500
2
Year
2002
3
Trim
500 WIDETRAK LX
4
Parts Catalog
CYLINDER
5
Parts Diagram
Parts Catalog
OIL TANK/AIR BOX
by
PISTON CRANKSHAFT
CYLINDER
1
BOLT FLANGE
3085582
9999999
Not Available
2
HEAD CYLINDER
3085584
9999999
Not Available
3
PLUG
3084491
9999999
Not Available
4
GASKET ALUMINUM
3084492
9999999
Not Available
5
NUT
3080285
9999999
Not Available
6
LOCK WASHER
3080530
9999999
Not Available
7
EXHAUST GASKET
3086995
9999999
Not Available
8
PIN; DOWEL
3080103
9999999
Not Available
9
STUD
3085326
9999999
Not Available
10
CYLINDER
3085583
9999999
Not Available
11
FLANGE NUT
3082911
7547013
$3,14 Unit Price incl. VAT
12
GASKET BASE
3084768
9999999
Not Available
13
VALVE CHECK ASSEMBLY
3086785
7051020
$68,24 Unit Price incl. VAT
14
ASM-ADAPTER BAND
3083166
7082340
$36,74 Unit Price incl. VAT
15
PAN HEAD SCREW
3081497
9999999
Not Available
16
CABURETOR ADAPTER
3085044
9999999
Not Available
17
O-RING
3085619
5418045
$36,74 Unit Price incl. VAT
18
SOCKET HEAD BOLT
3081330
9999999
Not Available
19
SWITCH THERMAL
3084284
9999999
Not Available
20
PIPE; WATER
3083452
9999999
Not Available
21
GASKET HEAD
3085585
9999999
Not Available

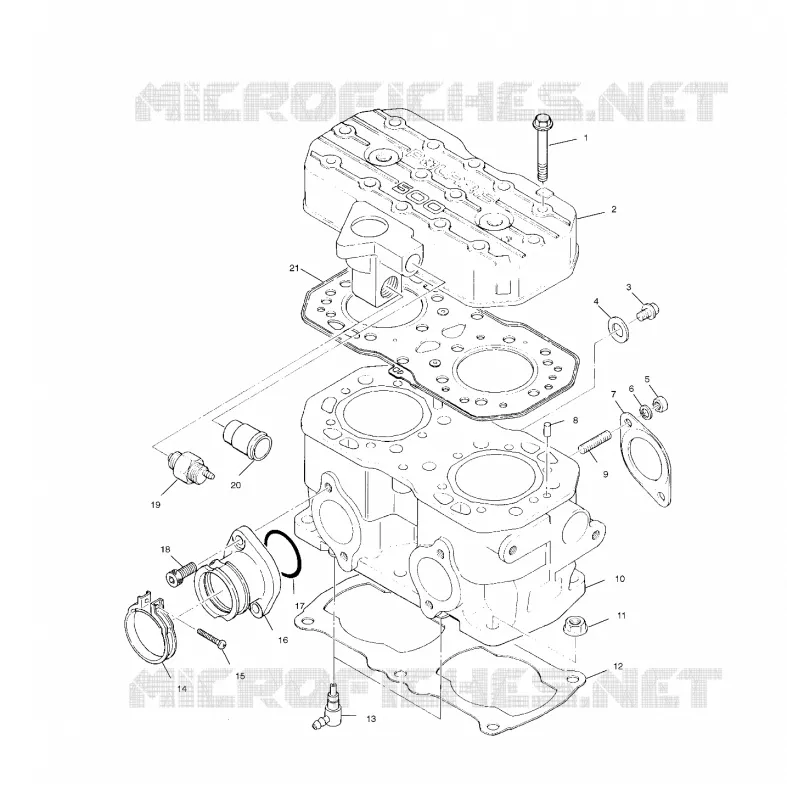

Find the detailed CYLINDER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
