DRIVEN CLUTCH 500 SP/500 SKS (4921262126032A) for POLARIS 500 SKS - 0920574 from 1992

DRIVE CLUTCH 500 SP/500 SKS (4921262126031A)

CRANKCASE 500 SP/500 SKS (4921262126039A)

DRIVEN CLUTCH 500 SP/500 SKS (4921262126032A)

1

CLUTCH-DRIVEN-36DEG.

1322105

9999999

Not Available

2

RETAINING RING

7714804

9999999

Not Available

3

WASHER 1.505 X 2.00 X 0.30

7556804

$1,56 Unit Price incl. VAT

4

HELIX 36 DEG.DRIVEN

5630185

9999999

Not Available

5

KEY SQUARE

7721103

9999999

Not Available

6

CLUTCH SPRING; RED

7041198

$104,99 Unit Price incl. VAT

7

DRIVEN BUSHING; LARGE

3569803

9999999

Not Available

8

SCREW

7511953

9999999

Not Available

9

RAMP BUTTON

5430466

$12,59 Unit Price incl. VAT

10

PLATE

5210749

9999999

Not Available

11

CAP DRIVEN (600 600 SE)

5230101

Not Available

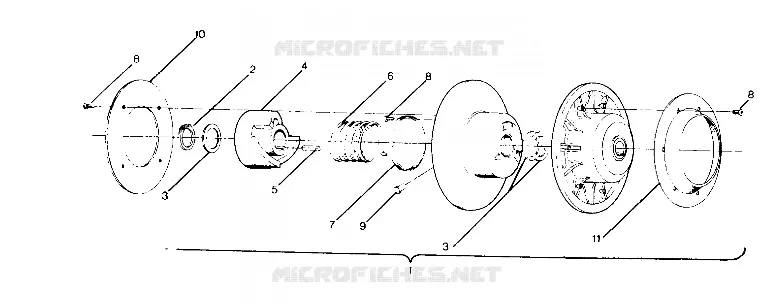

Find the detailed DRIVEN CLUTCH 500 SP/500 SKS (4921262126032A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
