FRONT TORQUE ARM 500 SP/500 SKS (4921262126029A) for POLARIS 500 SKS - 0920574 from 1992

FRONT SUSPENSION AND SKI 500 SP/500 SKS (4921262126017A)

REAR TORQUE ARM 500 SP/500 SKS (4921262126030A)

FRONT TORQUE ARM 500 SP/500 SKS (4921262126029A)

1

STRAP LIMITER

5410397

9999999

Not Available

2

BOLT

7515307

$7,34 Unit Price incl. VAT

3

WASHER

7555716

$3,14 Unit Price incl. VAT

4

NYLOK NUT

7542324

$1,56 Unit Price incl. VAT

5

BUSHING SUSPENSION

5010212

Not Available

6

RETAINER SPRING

5210953

$11,54 Unit Price incl. VAT

7

SUSPENSION SHOCK

7041142

9999999

Not Available

8

TOP RETAINER

5220225

$19,94 Unit Price incl. VAT

9

ARM FRONT TORQUE

1540667067

Not Available

10

IDLER WHEEL; 5.35 IN

1543018

$115,49 Unit Price incl. VAT

11

BUSHING

7556301

$6,29 Unit Price incl. VAT

12

SPACER OUTER

5332784

9999999

Not Available

13

PIVOT TUBE BUSHING

5020561

9999999

Not Available

14

SPACER

5333028

9999999

Not Available

15

NYLOCK NUT

7542439

$2,09 Unit Price incl. VAT

16

SHAFT MOUNTING

5010149

9999999

Not Available

17

SCREW

7515415

9999999

Not Available

18

BOLT

7515438

$9,44 Unit Price incl. VAT

19

BOLT NYLOC BLACK

7515493

9999999

Not Available

20

SPRING-SHOCK

7041127

9999999

Not Available

21

SPRING SHIELD

5430671

9999999

Not Available

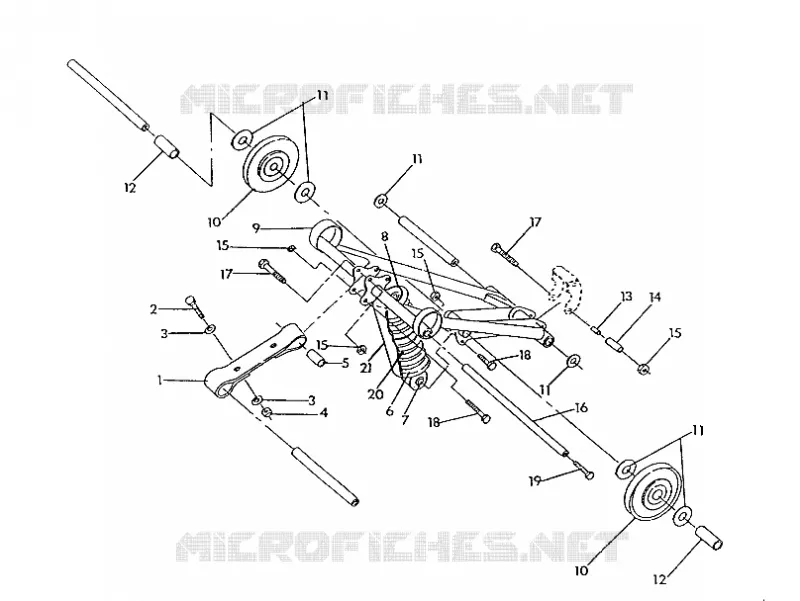

Find the detailed FRONT TORQUE ARM 500 SP/500 SKS (4921262126029A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
