Engine displacement
autre
2
Year
1992
3
Trim
XLT SP - 0920767
4
Parts Catalog
BRAKE CHAINCASE 500 XLT (4921662166019A)
5
Parts Diagram
Parts Catalog
CONSOLE 500 XLT (4921662166011A)
by
CHAINCASE ASSEMBLY 500 XLT (4921662166021A)
BRAKE CHAINCASE 500 XLT (4921662166019A)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
21
22
23
24
25
26
27
28
28
29
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
1
CLIP-SPRING
1930562
Not Available
2
PIN PAD RETAINING
1930563
Not Available
3
SWITCH STOPLIGHT
4110089
Not Available
4
HOUSING PISTON SIDE [No Longer Available]
1930699
Not Available
5
SCREW-BLEEDER
1930564
Not Available
6
SEAL-PISTON
1930567
9999999
Not Available
7
PISTON
1930568
Not Available
8
PLUG(10) 1/2-14 NPT
7051520
$15,74 Unit Price incl. VAT
9
SCREW
7512242
$4,19 Unit Price incl. VAT
10
LINE BRAKE
1930696
Not Available
11
COOLER-BRAKE
2511154
9999999
Not Available
12
BRAKE PAD; INDIVIDUAL
1930569
9999999
Not Available
13
SPACER
5210999
Not Available
14
CASTING-CARRIER
1930570
Not Available
15
NUT
1930558
Not Available
16
BUSHING
1930559
9999999
Not Available
17
BRACKET
5223986
Not Available
18
BOLT-BRIDGE
1930561
Not Available
19
RECOIL GUIDE
5431385
$19,94 Unit Price incl. VAT
20
JACKSHAFT ASM.
1332141
9999999
Not Available
21
OIL SEAL
3610030
$36,74 Unit Price incl. VAT
22
BOLT
7512240
9999999
Not Available
23
SPRING LOCK WASHER
7552801
$3,14 Unit Price incl. VAT
24
CHAINCASE
5130795
Not Available
25
BRACKET Substituted by 5222686-067
5222686
Not Available
26
SCREW(10)
7515511
$7,34 Unit Price incl. VAT
27
NUT
7542404
$3,14 Unit Price incl. VAT
28
BEARING CHAINCASE #6205
3514306
9999999
Not Available
29
RETAINING RING
7718406
$11,54 Unit Price incl. VAT
30
SPACER SPROCKET
5010270
9999999
Not Available
31
SPKT 21T (13W)
3221054
9999999
Not Available
32
CHAIN 66P (13W) SILENT
3224051
9999999
Not Available
33
TIGHTENER ASM.
1332078
9999999
Not Available
34
WASHER SPRING
7571620
$13,64 Unit Price incl. VAT
35
SLOTTED NUT
7542810
$5,76 Unit Price incl. VAT
36
COTTER PIN
7661401
$1,56 Unit Price incl. VAT
37
CHAINCASE GASKET
5410277
9999999
Not Available
38
COVER
5130817
9999999
Not Available
39
RIVET (50)
7621477
9999999
Not Available
40
PLUG; MAGNETIC
7051518
7052045
$26,24 Unit Price incl. VAT
41
CAP STUD COVER
5020569
9999999
Not Available
42
SCREW
7511909
9999999
Not Available
43
WASHER FLAT
7558201
$9,44 Unit Price incl. VAT
44
NUT-WELL
7541918
9999999
Not Available
45
SCREW; CARRIAGE
7515477
9999999
Not Available
46
BUSHING
7556509
$3,14 Unit Price incl. VAT
47
SCREW
7515350
7517979
$7,34 Unit Price incl. VAT
48
SPRING WASHER
7571618
$11,54 Unit Price incl. VAT
49
SPROCKET 39T (13W)
3222052
9999999
Not Available

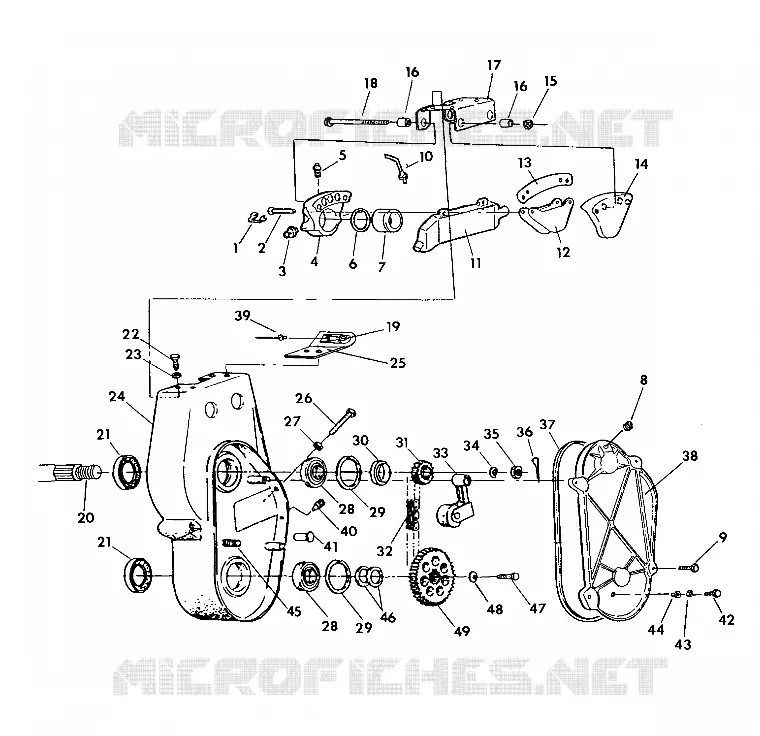

Find the detailed BRAKE CHAINCASE 500 XLT (4921662166019A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
