1
Engine displacement
570
2
Year
2022
3
Trim
SPORTSMAN 570 X2 EU/ZUG TRACTOR
4
Parts Catalog
BED BOX FRAME AND PIVOT
5
Parts Diagram
Parts Catalog
BED BOX
by
BODY, CLOSE OFF PANEL and ACCESS PANEL
BED BOX FRAME AND PIVOT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
1
WELD-BOX PIVOT;REAR;BLK
1024842329
Not Available
2
SPRING
7041687
$12,59 Unit Price incl. VAT
3
BOLT-5/16-18X1-3/4 HXFLNG GR5
7518341
$9,44 Unit Price incl. VAT
4
BUSHING STRAP BRACKET
5262582
$52,49 Unit Price incl. VAT
5
STEERING BUSHING; UPPER
5438904
$9,44 Unit Price incl. VAT
6
HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM
7518555
$4,19 Unit Price incl. VAT
7
WELD-LATCH BOX REAR M.BLK
1024841458
Not Available
8
BOX BUSHING; LATCH
5434226
$7,34 Unit Price incl. VAT
9
WELD-BOX FRAME E-COAT
1024244329
Not Available
10
SCREW
7515346
$10,49 Unit Price incl. VAT
11
SCR-5/16-18X1.75 TX-M
7518235
$3,14 Unit Price incl. VAT
12
FLANGE NUT
7542343
$9,44 Unit Price incl. VAT
13
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
14
BUMPER SHORT RUBBER
5412067
$7,34 Unit Price incl. VAT
15
SHOCK-DUMP BOX
7044142
7046193
$89,24 Unit Price incl. VAT
16
SPACER-.34 ID X .56 OD X .31
7556373
$6,29 Unit Price incl. VAT
17
PIN-CLEVIS 5/16X1 1/2 (10)
7661163
$7,34 Unit Price incl. VAT
18
HITCH PIN
7661644
$4,19 Unit Price incl. VAT
19
BRKT-LATCH BUSHING LINER
5259801
$12,59 Unit Price incl. VAT
20
WELD-ROD PASS SEAT M.BLK
1016335458
Not Available
21
WELD-LATCH X2 M.BLK
1025369458
Not Available
22
SEAT PIVOT BRACKET; LEFT
5250563
$19,94 Unit Price incl. VAT
23
SEAT PIVOT BRACKET; RIGHT
5250564
$19,94 Unit Price incl. VAT
24
BOLT
7512130
$7,34 Unit Price incl. VAT
25
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
26
BOLT
7512232
$2,09 Unit Price incl. VAT
27
SPRING LATCH
7041370
$17,84 Unit Price incl. VAT
28
SPACER
7556091
$7,34 Unit Price incl. VAT
29
PAD-FOAM 10 INCHES
552178810
Not Available
30
SPACER-D18XD8 0XH19 ZNC BLK
5339706
$5,55 Unit Price incl. VAT
31
COVER-REAR BOX X2 LH BLK
5456325070
Not Available
32
COVER-REAR BOX X2 RH BLK
5456326070
Not Available
33
SCREW
7517386
$2,09 Unit Price incl. VAT
34
TIE CABLE; 14 IN
7080761
$5,24 Unit Price incl. VAT

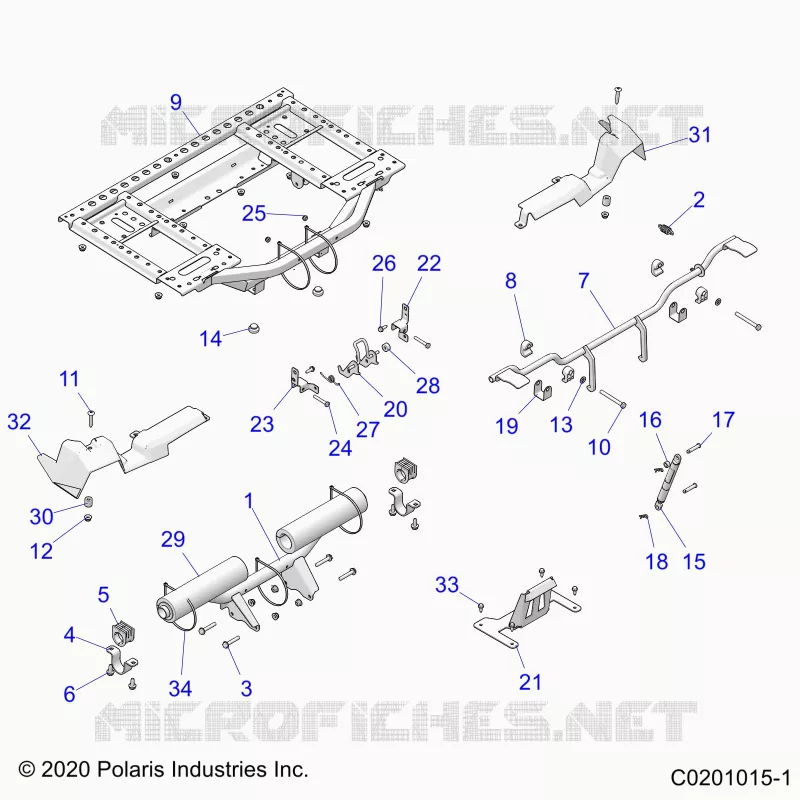

Find the detailed BED BOX FRAME AND PIVOT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
