1
Engine displacement
570
2
Year
2022
3
Trim
SPORTSMAN 570 X2 EU/ZUG TRACTOR
4
Parts Catalog
ELECTRICAL, BATTERY
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, SECONDARY CLUTCH
by
ELECTRICAL, BULBS
ELECTRICAL, BATTERY
1
2
3
4
4
5
6
7
8
9
10
10
11
11
12
13
14
15
16
17
18
19
20
20
21
22
23
24
25
26
27
1
TERMINAL BLOCK; 3 POST
4011892
$62,99 Unit Price incl. VAT
2
NUTS-10-32 KEPS
7547341
$1,56 Unit Price incl. VAT
3
CABLE-BATT 6GA RD BATT/SOL/TB
4014935
$104,99 Unit Price incl. VAT
4
INSUL.CABLE SOL.
5410346
9999999
Not Available
4
CABLE-BATT 6GA RD FLAT FLAT M6
4014424845
Not Available
5
SOLENOID STARTER; C1100 W/ WASHER
4014471
4081641
$59,84 Unit Price incl. VAT
6
SCREW
7512084
$2,09 Unit Price incl. VAT
7
BATTERY KIT BOLT
2202213
$6,29 Unit Price incl. VAT
8
STRAP-GROUND
5260167
$26,24 Unit Price incl. VAT
9
CABLE-BATT 6GA BK BAT/START/TB
4014937
$60,89 Unit Price incl. VAT
10
BATTERY; 14AH; 190 CCA
4018695
Not Available
10
SEALED BATTERY 14 AMP HOUR TYPE ETX15
4011138
$178,49 Unit Price incl. VAT
11
BATTERY HOLD DOWN STRAP
5412499
5418182
$9,44 Unit Price incl. VAT
11
STRAP-BATTERY HOLD DOWN
5418182
$9,44 Unit Price incl. VAT
12
FOAM-COVER
5813265
9999999
Not Available
13
SCREW
7517386
$2,09 Unit Price incl. VAT
14
CABLE TIE; 11 IN
7080492
$5,24 Unit Price incl. VAT
15
TIE CABLE; 14 IN
7080761
$5,24 Unit Price incl. VAT
16
NYLOCK FLANGE NUT; 6 MM
7547274
7548027
$3,14 Unit Price incl. VAT
17
BRKT-FUSE BLOCK
5269848
Not Available
18
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
19
BATTERY GUARD BRACKET
5259571
$62,99 Unit Price incl. VAT
20
BATTERY-COVER
5453577
Not Available
20
BATTERY COVER
5431769
$29,39 Unit Price incl. VAT
21
BATTERY STRAP HOOK
7010032
9999999
Not Available
22
BOLT
7512232
$2,09 Unit Price incl. VAT
23
CLAMP-HOSE 1.0
7081869
$5,99 Unit Price incl. VAT
24
HEX FLANGE SCREW; 6 MM X 1.0 MM X 20 MM
7519121
$7,34 Unit Price incl. VAT
25
PLUG-HARNESS BATTERY CHARGE
2415060
$62,99 Unit Price incl. VAT
26
NYLOK NUT
7546703
$2,09 Unit Price incl. VAT
27
FLANGE NUT
7542343
$9,44 Unit Price incl. VAT

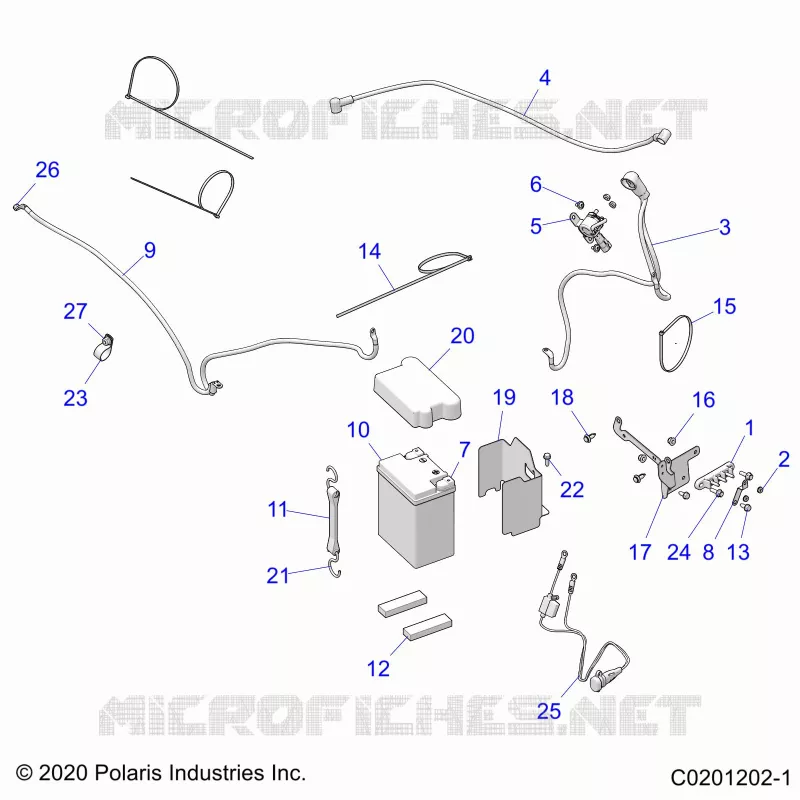

Find the detailed ELECTRICAL, BATTERY POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
