1
Engine displacement
800
2
Year
2020
3
Trim
800 INDY XC 129
4
Parts Catalog
SUSPENSION, RAIL, LH/RH
5
Parts Diagram
Parts Catalog
FRONT WISHBONES
by
TOOLS, BELT HOLDER & OWNERS MANUAL
SUSPENSION, RAIL, LH/RH
1
2
3
4
4
4
4
4
5
6
6
7
8
8
9
9
10
10
10
10
10
10
11
11
12
13
13
14
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
1
SCR-TXTH-M6X1.0X25 8.8 ZPB
7520133
$6,29 Unit Price incl. VAT
2
RAIL TIP CAP
5452441
$26,24 Unit Price incl. VAT
3
WASHER
7556064
$9,44 Unit Price incl. VAT
4
NUT-M6X1.0 FLG-NYLOC-OLIVE D
7547339
$2,09 Unit Price incl. VAT
5
NUT NYLOK 10-24 Y
7541925
$1,56 Unit Price incl. VAT
6
WASHER FLAT
7555783
$7,34 Unit Price incl. VAT
7
BUMPER-JOUNCE FTA PROG
5522253
$16,79 Unit Price incl. VAT
8
HEX FLANGE SCREW; 6 MM X 1.0 MM X 70 MM
7519908
7521331-70
$1,56 Unit Price incl. VAT
9
WSHR-M6 OFFSET 2.01 ZOD
7556799
$6,29 Unit Price incl. VAT
10
BEARING; .7874 X 1.6535 X .4724
3515142
$34,64 Unit Price incl. VAT
10
RETAINING RING
7710444
$15,74 Unit Price incl. VAT
10
ASM-WHEEL SPOKED 5.62
1590632
$66,66 Unit Price incl. VAT
11
SCREW
7517510
$9,44 Unit Price incl. VAT
12
CL8.8 OLV-D
7518906
$6,29 Unit Price incl. VAT
13
WHEEL MOUNT BLOCK
5633278
$47,24 Unit Price incl. VAT
14
SCR-TXTH-M8X1.25X20 8.8 BLK
7519997
$7,34 Unit Price incl. VAT
15
ASM-RAIL 129 BSC LH GHOST GRAY
1543909728
Not Available
15
BASIC RAIL ASSEMBLY; LEFT; INDY RED; 129
1543909293
Not Available
15
ASM-RAIL 129 SVC LH NAT
1543909309
Not Available
15
ASM-RAIL 129 BSC RH GHOST GRAY
1543910728
Not Available
15
BASIC RAIL ASM LEFT WHITE LIGHTNING 129
1543909599
Not Available
15
BASIC RAIL ASSEMBLY; LEFT; ORANGE BURST
1543909647
Not Available
15
BASIC RAIL ASM RIGHT INDIAN SKY BLUE
1543910737
Not Available
15
ASM-RAIL 129 BSC LH BLK
1543909067
Not Available
15
BASIC RAIL ASM RIGHT WHITE LIGHTNING 129
1543910599
Not Available
15
ASM-RAIL 129 SVC RH NAT
1543910309
Not Available
15
BASIC RAIL TRACK; 129 IN; RIGHT; BLACK
1543910067
Not Available
15
BASIC RAIL ASM LEFT LIME SQUEEZE 129
1543909630
Not Available
15
BASIC RAIL ASM RIGHT LIME SQUEEZE 129
1543910630
Not Available
15
BASIC RAIL ASM LEFT INDIAN SKY BLUE 129
1543909737
Not Available
15
BASIC RAIL ASSEMBLY; RIGHT; ORANGE BURST
1543910647
Not Available
15
BASIC RAIL ASM RIGHT INDY RED 129
1543910293
Not Available
16
SOCKET HEAD SCREW 10 MM X 1.5 MM X 30 MM
7519844
$9,44 Unit Price incl. VAT
17
MOUNT-BUMPER METRIC
5136571
$18,89 Unit Price incl. VAT
18
PIVOT ARM BUMPER
5410925
$26,24 Unit Price incl. VAT
19
BLOCK-IDLER BOLT ADJ METRIC
5136570
$62,99 Unit Price incl. VAT
20
NUT-HH M10X1.5 NYLOC ZOD
7547442
$7,34 Unit Price incl. VAT
21
RIVET
7621501
$4,19 Unit Price incl. VAT
22
SPACER-IDLER ADJ ALUM
5141837
$13,64 Unit Price incl. VAT
23
HEX NUT; 10 MM X 1.5 MM
7547707
$7,34 Unit Price incl. VAT
24
HEX SCREW; 10 MM X 1.5 MM X 100 MM
7520083
$23,09 Unit Price incl. VAT
25
BUMPER
5432166
$9,44 Unit Price incl. VAT
26
SCREW
7515199
$2,09 Unit Price incl. VAT
27
PLATE-RAIL REINF LW
5141475
$104,99 Unit Price incl. VAT
28
HITCH PIN
7661644
$4,19 Unit Price incl. VAT
29
PIN-CLEVIS 3/16X1 1/4
7661123
$7,34 Unit Price incl. VAT
30
SPRING ROLLER SHAFT
5136687
$19,94 Unit Price incl. VAT
31
SPRING SQUARE GUIDE
5434334
$62,99 Unit Price incl. VAT
32
SCREW
7512025
$9,44 Unit Price incl. VAT
33
SLIDER GLOSS BLACK
5522230070
Not Available
34
SCR-M6X1.0X20 TR/TX/TAP ZOD
7518976
$6,29 Unit Price incl. VAT

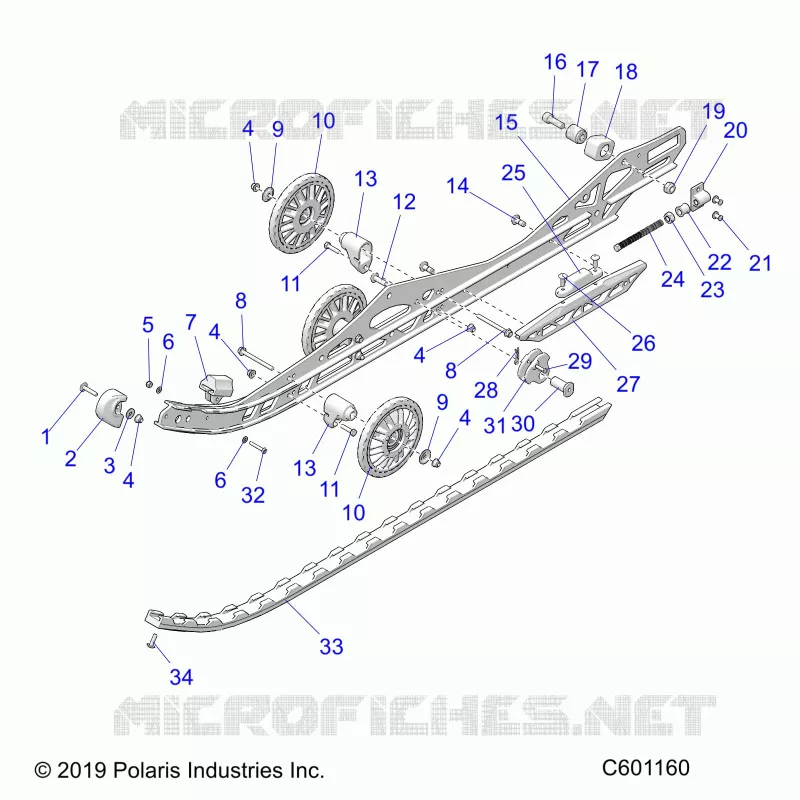

Find the detailed SUSPENSION, RAIL, LH/RH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
