REAR SUSPENSION for POLARIS 800 INDY XC 129 from 2020

REAR SUSPENSION

1

HEX FLANGE SCREW; 10 MM X 1.5 MM 35 MM

7518957

$6,29 Unit Price incl. VAT

2

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

3

WASHER 10.5 X 24 X 1.2446

7556545

$6,29 Unit Price incl. VAT

4

HEX FLANGE SCREW; 10 MM X 1.5 MM X 40

7519216

$9,44 Unit Price incl. VAT

5

CLIP-TRACK FLAT 012-0107 (10

5251273

$18,89 Unit Price incl. VAT

5

LONG GUIDE TRACK CLIP

5251274

$13,64 Unit Price incl. VAT

5

TRACK-15X129 1.5 STORM 2.86

5416605

$1 202,24 Unit Price incl. VAT

5

TRACK-15X129 1.25 ICE RIP XT

5416993

$1 157,09 Unit Price incl. VAT

5

TRACK; 15 IN X 129 IN

5416604

$972,29 Unit Price incl. VAT

6

WASHER

7556153

$3,66 Unit Price incl. VAT

7

SCR-M10X1.5X35 TX/TRUSS ZODP30

7520369

$11,54 Unit Price incl. VAT

8

SPRING WASHER; .406 X 1.25 X .125

7556490

$9,44 Unit Price incl. VAT

9

BEARING-.7874X1.6535X.4724 NTN

3514384

3515142

$34,64 Unit Price incl. VAT

9

WHEEL SPOKE ASSEMBLY; 7.25

1590459

$82,94 Unit Price incl. VAT

9

RETAINING RING

7710444

$15,74 Unit Price incl. VAT

10

SPACER; IDLER

5432535

$20,99 Unit Price incl. VAT

11

SHAFT-IDLER M10X1.5THDX336 LG

5136745

$62,99 Unit Price incl. VAT

12

IDLER SPACER; LONG

5333285

$20,99 Unit Price incl. VAT

13

BUSHING

7555918

$3,14 Unit Price incl. VAT

14

HEX FLANGE SCREW 10MM X 1.25MM X 250MM

7519327

$36,74 Unit Price incl. VAT

15

CROSS SHAFT; RMK

5137418

$62,99 Unit Price incl. VAT

16

CROSS SHAFT; MACHINED

5139172

$47,24 Unit Price incl. VAT

17

PIVOT ARM WELD; REAR; BLACK

1543905329

Not Available

17

LUBRICATION FITTING

7080424

$9,44 Unit Price incl. VAT

18

WELD-H-BRACKET ECOAT

1544014329

Not Available

19

WSHR-M10.5X25X2.4 ZPC

7556559

$6,29 Unit Price incl. VAT

20

SHAFT-H-BRKT CC AL

5140492

$68,24 Unit Price incl. VAT

21

SFT-M10X1.5IDX17.47ODX220.1 LG

5136572

$52,49 Unit Price incl. VAT

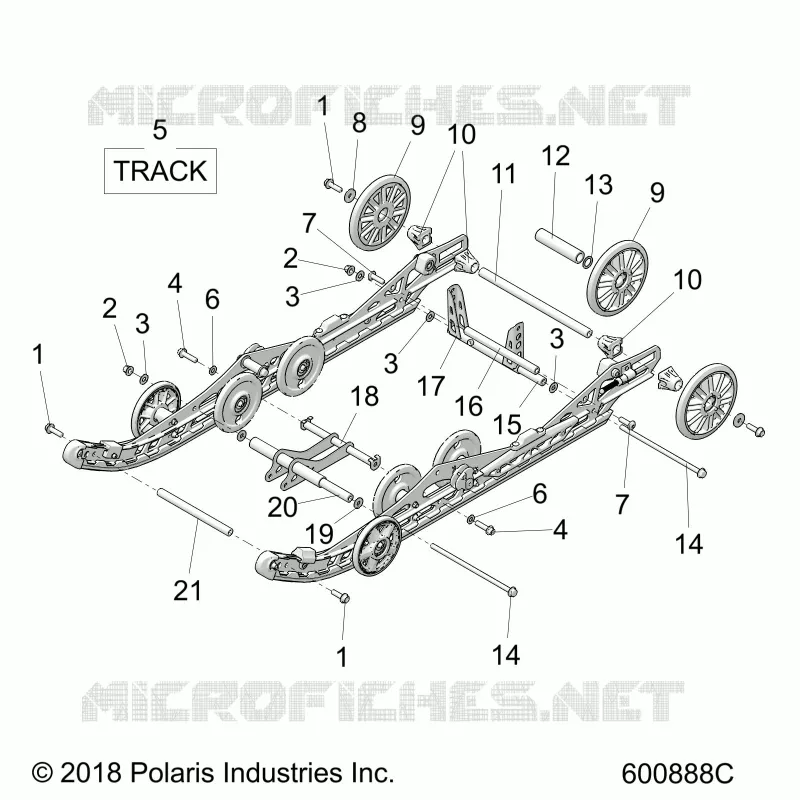

Find the detailed REAR SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
