Engine displacement
570
2
Year
2017
3
Trim
SPORTSMAN 570 SP TOURING
4
Parts Catalog
WHEELS, REAR TIRE AND BRAKE DISC
5
Parts Diagram
Parts Catalog
ENGINE, THROTTLE BODY AND FUEL RAIL
by
BODY, RIGHT HAND SIDE PANEL HEAT SHIELD AND HARDWARE 2 UP
WHEELS, REAR TIRE AND BRAKE DISC
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
TIRE 26 X 1-14
5415601
9999999
Not Available
2
RIM; REAR; 14 X 7.5
1522455458
Not Available
3
HUB COVER; MATTE BLACK
5451374458
Not Available
4
CASTLE NUT; 18 MM X 1.5 MM
7547337
$3,66 Unit Price incl. VAT
5
COTTER PIN
7661404
$9,44 Unit Price incl. VAT
6
CONE WASHER
7555796
$14,69 Unit Price incl. VAT
7
REAR WHEEL HUB ASSEMBLY MACHINED
5135113
5143629
$157,49 Unit Price incl. VAT
8
PRESS FIT STUD
7518378
$3,14 Unit Price incl. VAT
9
RETAINING RING
7710440
$18,89 Unit Price incl. VAT
10
WHEEL BEARING; 40 MM X 74 MM X 40 MM
3514635
$73,49 Unit Price incl. VAT
11
WHEEL CARRIER BEARING; MACHINED
5135563
$121,79 Unit Price incl. VAT
12
BOLT-3/8-16X3/4-HX/CP/LK-GR5-Y
7518903
$7,34 Unit Price incl. VAT
13
REAR BRAKE DISC 8.625 IN.
5248250
$141,74 Unit Price incl. VAT
14
RIM VALVE
1525017
$12,59 Unit Price incl. VAT
15
WHEEL NUT
7547309
$6,81 Unit Price incl. VAT

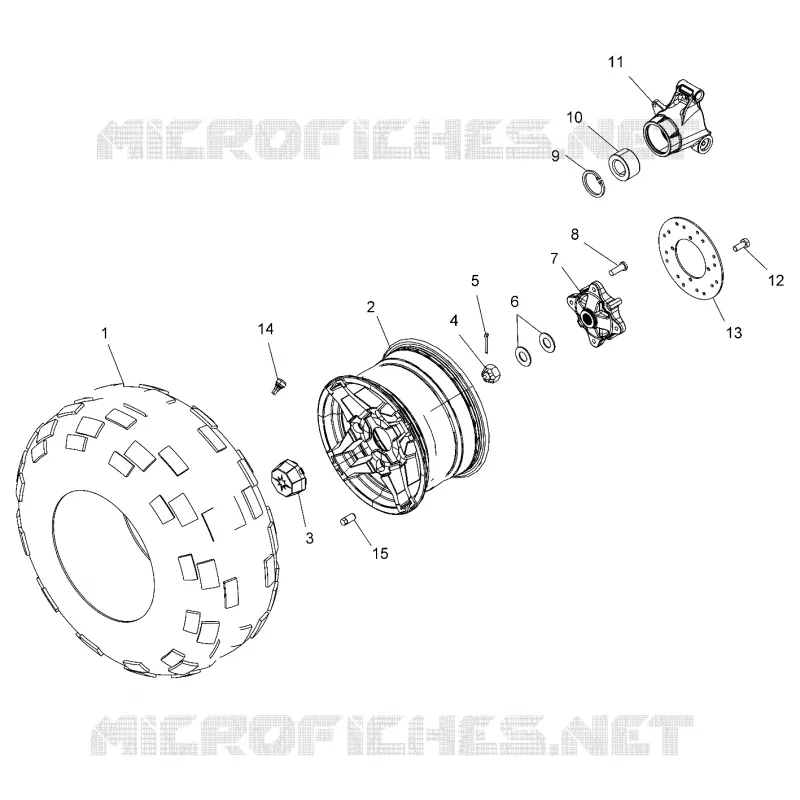

Find the detailed WHEELS, REAR TIRE AND BRAKE DISC POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
