1
Engine displacement
570
2
Year
2017
3
Trim
SPORTSMAN 570 SP TOURING
4
Parts Catalog
SUSPENSION, TORSION BAR
5
Parts Diagram
Parts Catalog
REFERENCE, OWNERS MANUAL
by
WHEELS, FRONT TIRE AND BRAKE DISC

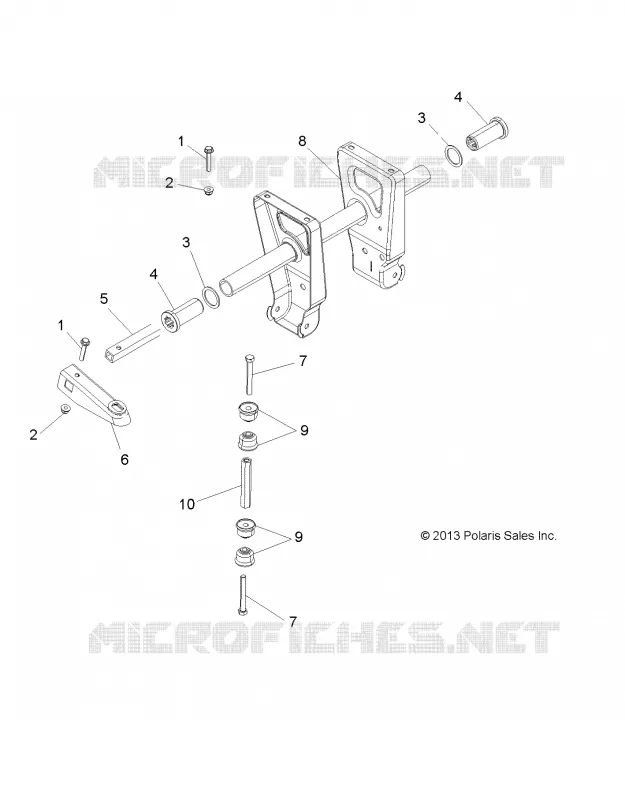

SUSPENSION, TORSION BAR
1
BOLT-5/16-18X1-3/4 HXFLNG GR5
7518341
$9,44 Unit Price incl. VAT
2
FLANGE NUT
7542343
$9,44 Unit Price incl. VAT
3
WASHER
7555939
9999999
Not Available
4
TUBE STABILIZER BUSHING; BLACK
5438901
$16,79 Unit Price incl. VAT
5
STABILIZER BAR TUBE; BLACK
5334114329
Not Available
6
ARM STABILIZER BAR WELD
1543119067
Not Available
7
SCREW
7517231
$13,64 Unit Price incl. VAT
8
STABILIZER SUPPORT; GS BLK
1542848067
Not Available
9
BUSHING-WSHR TORBARDURO80ITW
5414877
5415885
$6,29 Unit Price incl. VAT
10
LINKAGE ROD STABILIZER
5020827
$99,74 Unit Price incl. VAT

Find the detailed SUSPENSION, TORSION BAR POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
