SEAT ASM. AND SLIDER for POLARIS RZR XP TURBO from 2017

SEAT ASM. AND SLIDER

1

SEAT FRAME WELD

1021289

$136,49 Unit Price incl. VAT

2

SEAT BACK ASSEMBLY

2686772

9999999

Not Available

2

ASM-SEAT BACKHAV RED/BLK

2686791

2687887

$309,74 Unit Price incl. VAT

2

SEAT BACK ASSEMBLY

2687283

9999999

Not Available

3

ASM-SEAT BTMHAV RED/BLK

2686794

2687890

$467,24 Unit Price incl. VAT

3

SEAT BOTTOM ASSEMBLY; TITANIUM/ BLACK

2686775

9999999

Not Available

3

ASM-SEAT BTM;BLK/V.BLUE

2687286

9999999

Not Available

4

SCREW

7515177

$5,76 Unit Price incl. VAT

5

SEAT SLIDER BASE ASSEMBLY

2685704

$388,49 Unit Price incl. VAT

6

SEAT BASE

5450170

$67,48 Unit Price incl. VAT

7

SEAT LATCH PLATE

5258647

$12,59 Unit Price incl. VAT

8

SEAT BASE GROMMET

5413441

$7,34 Unit Price incl. VAT

9

SEAT LATCH LEVER

5437121

$9,44 Unit Price incl. VAT

10

SEAT LATCH SPRING

7081466

$57,74 Unit Price incl. VAT

11

SCREW

7517610

$3,14 Unit Price incl. VAT

12

NYLOK NUT

7546703

$2,09 Unit Price incl. VAT

13

BRKT-SEAT SLIDER ADJ PLATE

5257975

5270634

$31,49 Unit Price incl. VAT

14

BOLT-CARR M6X1.0X20 8.8 ZOD

7518994

$6,29 Unit Price incl. VAT

15

NUT-M6X1.0 FLG-NYLOC-OLIVE D

7547339

$2,09 Unit Price incl. VAT

16

SEAT SLIDER MOUNTING PLATE BRACKET

5261437

$115,49 Unit Price incl. VAT

17

SLIDER LEVER SEAT BRACKET

5260733

$52,49 Unit Price incl. VAT

18

SPRING

7044099

$10,49 Unit Price incl. VAT

19

SHOULDER BOLT; 8-16 MM; 6 MM X 1.0 MM

7518786

$4,19 Unit Price incl. VAT

20

BOLT-M6X1.0X15 HX/FLG/TX SHLDR

7518897

$3,14 Unit Price incl. VAT

21

SPACER TUBE

5340145

$10,49 Unit Price incl. VAT

22

SCR-1/4-20X1-BH-TRX-GR5-Z

7519296

$3,14 Unit Price incl. VAT

23

SPRING LOCK WASHER

7552801

$3,14 Unit Price incl. VAT

24

FLAT WASHER

7555859

$2,09 Unit Price incl. VAT

25

COVER PLATE LATCH; GLOSS BLACK

5450510070

Not Available

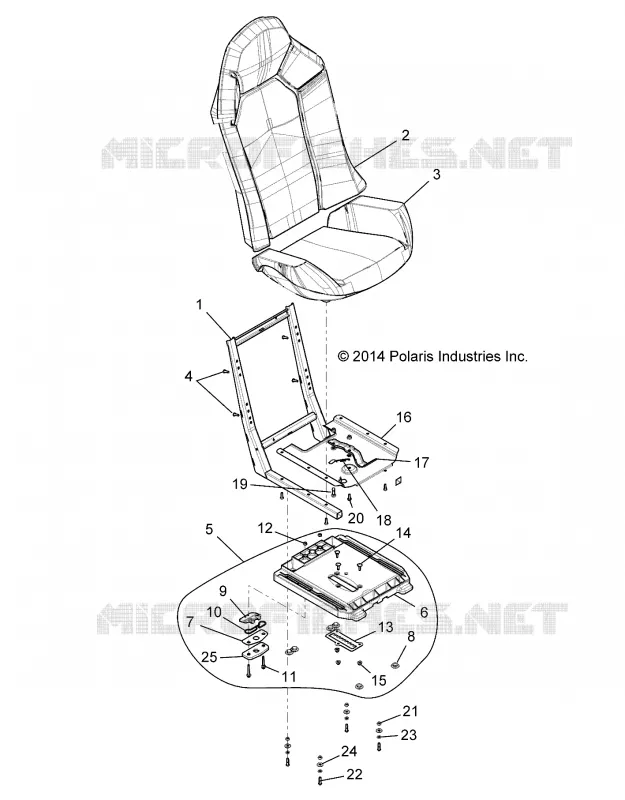

Find the detailed SEAT ASM. AND SLIDER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
