FRONT SUSPENSION CONTROL ARMS for POLARIS RZR XP TURBO from 2017

ENGINE, TURBO CHARGER MOUNTING

SUSPENSION, FRONT SHOCK MOUNTING

FRONT SUSPENSION CONTROL ARMS

1

CONTROL ARM WELD FRT FRT LEFT INDY RED

1021478293

Not Available

1

CTRL ARM WELD UPR FRT LFT 64 VEL BLUE

1021478689

Not Available

1

CONTROL ARM WELD FRT UPR LEFT CLD SLV

1021478385

Not Available

2

CONTROL ARM WELD FRT UPR RIGHT CLD SLV

1021479385

Not Available

2

CTRL ARM WELD FRT UPR RHT VELOCITY BLUE

1021479689

Not Available

2

CTRL ARM WELD FRT UPR RIGHT 64 INDY RED

1021479293

Not Available

3

CONTROL ARM FRT LWR LEFT SIDE INDY RED

1021480293

Not Available

3

CTRL ARM WELD FRT LWR LFT 64 VEL BLUE

1021480689

Not Available

3

CONTROL ARM; FRONT; LOWER; CLOUD SILVER

1021480385

Not Available

4

CONTROL ARM FRT LWR RIGHT SIDE CLD SLV

1021481385

Not Available

4

CONTROL ARM FRT LWR RIGHT SIDE INDY RED

1021481293

Not Available

4

CONTROL ARM WELD; FRONT; LOWER; RIGHT

1021481689

Not Available

5

SHORT PIVOT SHAFT

5139966

5144658

$10,49 Unit Price incl. VAT

6

CV SHIELD; FRONT; GLOSS BLACK

5438641070

Not Available

7

SEALED PIVOT CAP ASSEMBLY; 10 MM

1543611

$10,49 Unit Price incl. VAT

8

SEAL PIVOT CAP ASSEMBLY; 10 MM

1543735

$26,24 Unit Price incl. VAT

9

SCREW

7512084

$2,09 Unit Price incl. VAT

10

SCREW M10 X 1.25-6G

7519043

$17,84 Unit Price incl. VAT

11

HEX FLANGE SCREW 10 MM X 1.25 MM X 55 MM

7519285

$4,19 Unit Price incl. VAT

12

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

13

WASHER

7556153

$3,66 Unit Price incl. VAT

14

BALL-JOINT HARDENED

7081992

7082892

$89,24 Unit Price incl. VAT

15

FLANGE SCREW

7519306

$10,49 Unit Price incl. VAT

16

RETAINING RING

7710716

$15,74 Unit Price incl. VAT

17

SPIRAL RING; 28 MM; STEEL

7710845

$6,81 Unit Price incl. VAT

18

STANDARD SUSPENSION BUSHING; 10 MM

5452233

$5,24 Unit Price incl. VAT

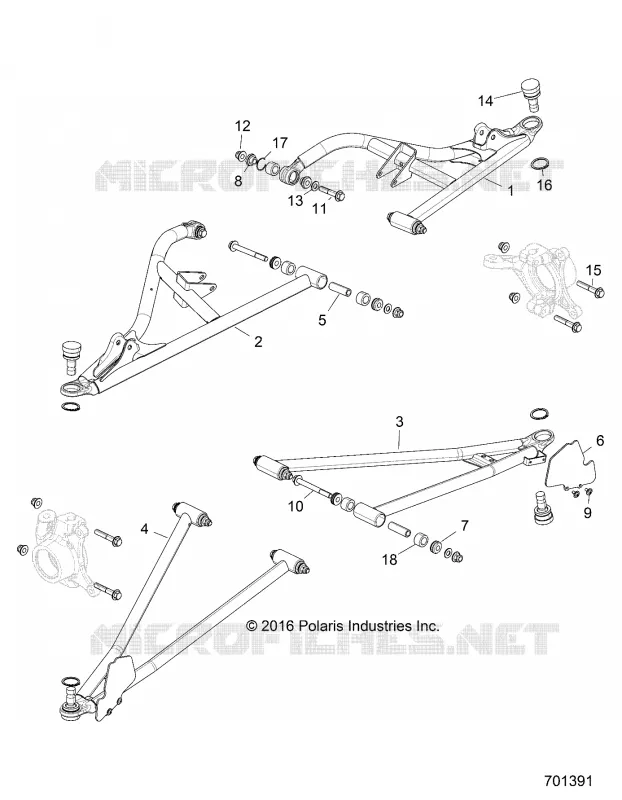

Find the detailed FRONT SUSPENSION CONTROL ARMS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
