Engine displacement
850
2
Year
2016
3
Trim
SCRAMBLER 850
4
Parts Catalog
ENGINE, COOLING SYSTEM
5
Parts Diagram
Parts Catalog
BALANCE SHAFT
by
ENGINE, CRANKSHAFT AND PISTON
ENGINE, COOLING SYSTEM
14
15
16
17
18
19
20
1
HOSE-RADIATOR ENGINE OUT 25MM
5414392
$104,99 Unit Price incl. VAT
2
RADIATOR HOSE; ENGINE IN; 25 MM
5414391
$104,99 Unit Price incl. VAT
3
BOTTLE ASSEMBLY; COOLANT RECOVERY
1240406
$141,74 Unit Price incl. VAT
4
SPRINGBAND CLAMP; 35/12
7080844
$19,94 Unit Price incl. VAT
5
GROMMET AND INSERT ASSEMBLY
5413509
$30,23 Unit Price incl. VAT
6
NYLOCK FLANGE NUT; 6 MM
7547274
7548027
$3,14 Unit Price incl. VAT
7
SCR-HXFL-M6X1.0X30 RIE DGPNT
7519202
$7,34 Unit Price incl. VAT
8
PRESSURE CAP; 13 PSI
1240466
$104,99 Unit Price incl. VAT
9
ASM-RADIATOR
1240596
1241437
$1 118,24 Unit Price incl. VAT
9
RADIATOR
1240404
$871,49 Unit Price incl. VAT
10
RADIATOR MOUNT GROMMET; LOWER
5413510
$30,23 Unit Price incl. VAT
11
CLAMP-HOSE 1.312 VINYL COATED
7080851
9999999
Not Available
12
BOLT-M6X1.0X15 HXFLG TAP/R-OD
7518513
9999999
Not Available
13
SPRING BAND CLAMPS; 32/12
7080843
$7,34 Unit Price incl. VAT
14
OVERFLOW CAP
5430743
$10,49 Unit Price incl. VAT
15
GASKET
5810279
$4,19 Unit Price incl. VAT
16
CAP PLUG9X(GRN) FLEX TEMP(10)
5433774
$10,49 Unit Price incl. VAT
17
BOTTLE-COOLANT RECOVERY
5437257
1240406
$141,74 Unit Price incl. VAT
18
RADIATOR FAN SHROUD ASM SPORTSMAN XP
2411578
2415279
$467,24 Unit Price incl. VAT
19
HOSE CLAMP; 25-40 MM
7081192
$14,69 Unit Price incl. VAT
20
COOLANT LINE; 27 CM
845012827
Not Available

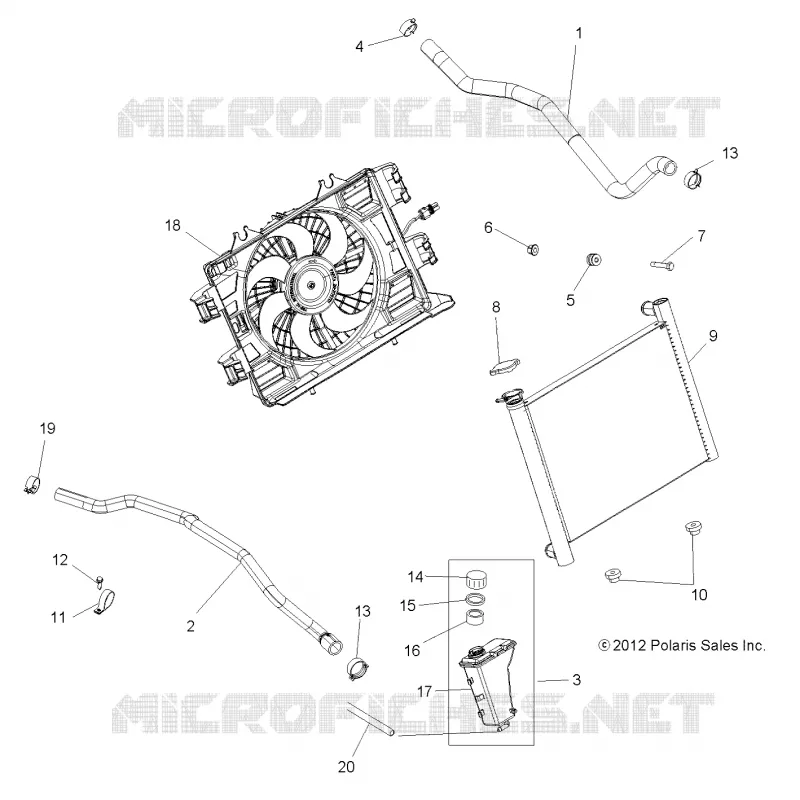

Find the detailed ENGINE, COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
