1
Engine displacement
850
2
Year
2016
3
Trim
SCRAMBLER 850
4
Parts Catalog
ELECTRICAL, BATTERY
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, SECONDARY CLUTCH
by
ELECTRICAL, IGNITION SYSTEM
ELECTRICAL, BATTERY
2
3
3
4
4
5
6
7
8
9
9
9
10
11
12
13
1
SOLENOID BATTERY CABLE
4012710
$83,99 Unit Price incl. VAT
2
SCR-6MMX1X20 HX/CP
7518925
$6,29 Unit Price incl. VAT
3
BATTERY STRAP
5253372
$20,99 Unit Price incl. VAT
3
BATTERY BRACKET
5253600
$68,24 Unit Price incl. VAT
4
BATTERY YTX20HL 18AH 310 CC
4015961
4081963
$230,25 Unit Price incl. VAT
4
BATTERY-SEALED 30-AH 360 CCA
4011224
4014609
$283,49 Unit Price incl. VAT
5
BATTERY COVER
5438299
$29,39 Unit Price incl. VAT
6
BATTERY BOLT KIT
2201357
$20,99 Unit Price incl. VAT
7
BOLT RETAINER; 1/4 -20
7670154
$2,09 Unit Price incl. VAT
8
HEX HEAD FLANGE SCREW; 6 MM X 16 MM
7518591
$6,29 Unit Price incl. VAT
9
NYLOCK FLANGE NUT; 6 MM
7547274
7548027
$3,14 Unit Price incl. VAT
10
BATTERY SPACER
5438228
9999999
Not Available
11
CABLE-BATT 6GA BK 85 85 M6
4014525360
Not Available
12
CABLE; BLACK; 23 IN
4012709
$62,99 Unit Price incl. VAT
13
STUD-M6X1.0X19-M6 TAPTITE
7519333
$14,69 Unit Price incl. VAT

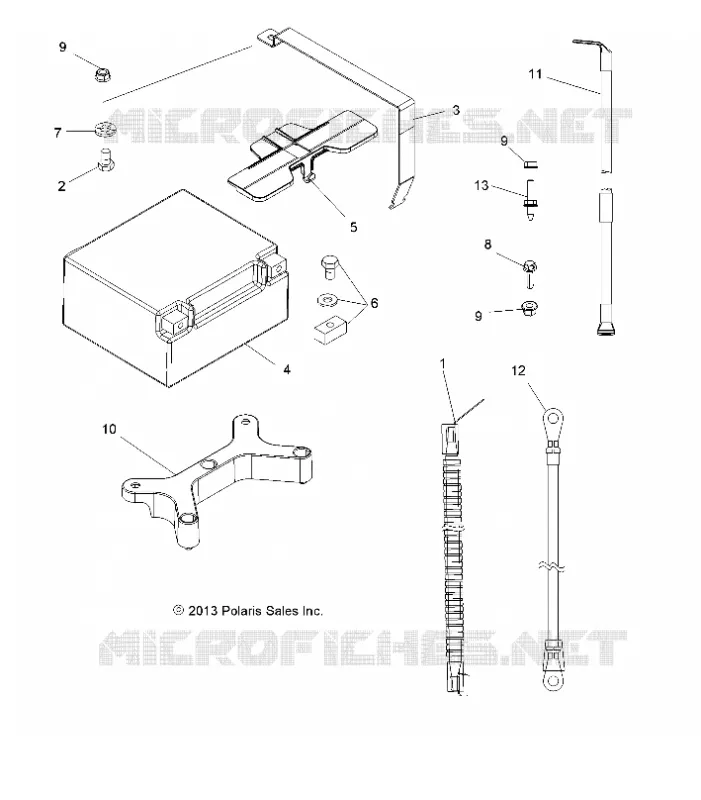

Find the detailed ELECTRICAL, BATTERY POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
