1
Engine displacement
800
2
Year
2020
3
Trim
800 AXYS SKS 155
4
Parts Catalog
ENGINE, AIR INTAKE SYSTEM
5
Parts Diagram
Parts Catalog
SWITCHES, SENSORS AND COMPONENTS
by
OIL BOTTLE ASM.
ENGINE, AIR INTAKE SYSTEM
1
2
2
3
3
4
5
6
6
6
7
7
7
7
7
7
7
8
9
10
10
11
11
12
13
13
14
15
16
17
18
19
20
21
21
22
1
INTAKE VENT RIGHT
5450473
$68,24 Unit Price incl. VAT
2
INTAKE VENT; FOAM
5814024
$26,24 Unit Price incl. VAT
3
INTAKE VENT BACKER
5814025
$10,49 Unit Price incl. VAT
4
INTAKE VENT; LEFT
5450472
$68,24 Unit Price incl. VAT
5
SCR-TXTH-M6X1.0X20 T40 ZPB
7519112
$6,29 Unit Price incl. VAT
6
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
7
PLENUM; UPPER; GHOST GRAY
5452078728
Not Available
7
PLENUM UPPER WHITE LIGHTNING
5452078599
Not Available
7
PLENUM; UPPER; INDY RED; RMK
5452078293
Not Available
7
PLENUM; UPPER; LIME SQUEEZE
5452078630
Not Available
7
PLENUM; UPPER; INDIAN SKY BLUE; RMK
5452078737
Not Available
7
PLENUM; UPPER; MIDNIGHT BLUE METALLIC
5452078469
Not Available
7
IN-MOLD PLENUM; UPPER; GLOSS BLACK; RMK
5450683070
Not Available
8
U CLIP; 6.0 MM X 1.0 MM
7547366
$9,44 Unit Price incl. VAT
9
SCREW
7516823
$5,76 Unit Price incl. VAT
10
1/4 TURN CLIP; 6 MM
7710808
$9,44 Unit Price incl. VAT
11
BOLT 5/8 LONG TORX PAN HEAD
7518238
$7,34 Unit Price incl. VAT
12
TORX SCREW; #14 X 3/4
7519045
$6,29 Unit Price incl. VAT
13
DRAIN PLUG
5414472
$10,49 Unit Price incl. VAT
13
ASM-TUBE INTAKE
1205327
1206198
$188,99 Unit Price incl. VAT
14
AIR SILENCER ASSEMBLY
1204766
9999999
Not Available
15
INTAKE; LOWER; FOAM
5813962
$26,24 Unit Price incl. VAT
16
SEAL FOAM
5810947
$8,39 Unit Price incl. VAT
17
CLAMP NARROW BAND
7080909
$14,69 Unit Price incl. VAT
18
ROSEBUD CLIP
4010589
$3,77 Unit Price incl. VAT
19
PLENUM; LOWER
5452415
$194,24 Unit Price incl. VAT
20
PLENUM SUPPORT BRACKET
5261169
$19,94 Unit Price incl. VAT
21
RIVET 4.8 MM
7661973
$2,09 Unit Price incl. VAT
22
DART CLIP
7670067
$7,34 Unit Price incl. VAT

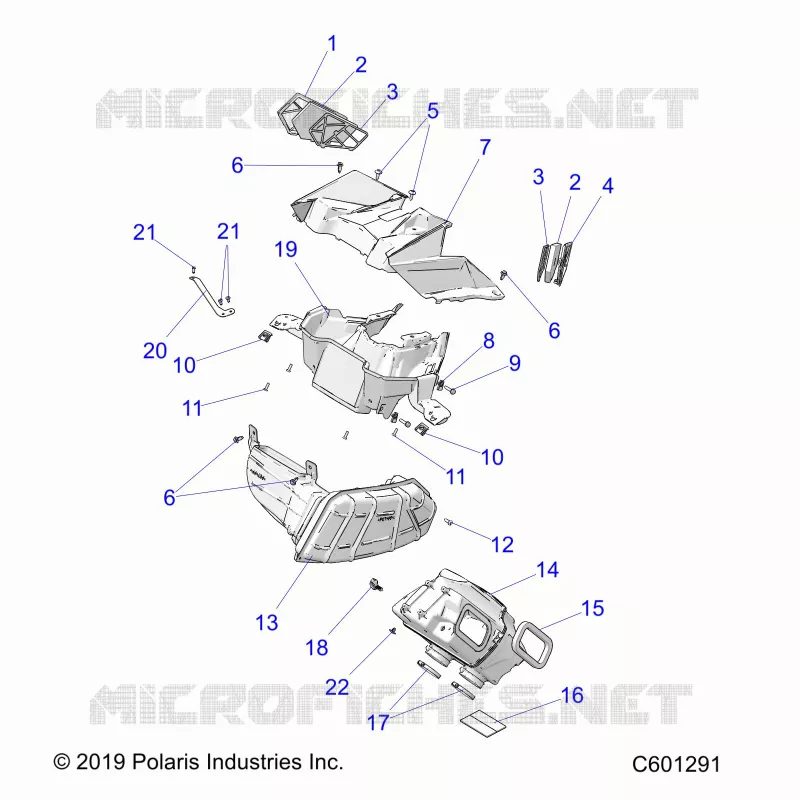

Find the detailed ENGINE, AIR INTAKE SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
