CHASSIS, BULKHEAD ASM. for POLARIS 800 AXYS SKS 155 from 2020

CHASSIS, BULKHEAD ASM.

-

LORD 406 REPAIR KIT; 50 ML

2204171

2830614

$517,64 Unit Price incl. VAT

-

MIXING NOZZLES KIT

2204172

2830615

$14,69 Unit Price incl. VAT

-

ADJESIVE CARTRIDGE KIT

2204400

672204400

Not Available

1

CROSSOVER TUBE; EXTRUDED

5140781

$173,24 Unit Price incl. VAT

2

WHEEL STUD; 8 MM X 1.25 MM X 48

7519204

$36,74 Unit Price incl. VAT

3

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

4

CL8.8 OLV-D

7518906

$6,29 Unit Price incl. VAT

5

BOLT-CARR M8X1.25X25 8.8 ZOD

7520297

$7,34 Unit Price incl. VAT

6

BRACE ASSEMBLY; LEFT; LOWER

1019183

$220,49 Unit Price incl. VAT

7

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$11,54 Unit Price incl. VAT

8

CLIP WITH STUD ASSEMBLY; LEFT; RMK

1019665

$482,99 Unit Price incl. VAT

9

ASM-NUT PLATE M8 47MM

1020829

$23,09 Unit Price incl. VAT

10

SCR-TXTH-M8X1.25X15 8.8ZOD P80

7519109

$3,14 Unit Price incl. VAT

11

BRACKET IDLER ASSEMBLY; TOP

1019666

1026546

$47,24 Unit Price incl. VAT

12

SCREW

7516732

$3,14 Unit Price incl. VAT

13

CLIP W/ STUD ASSEMBLY; RIGHT

1019182

$488,24 Unit Price incl. VAT

14

BOLT-M6X1.0X15 PH/TX-OLIVE D

7518656

$7,34 Unit Price incl. VAT

15

SCR-TXTH M8X1.25X35 8.8ZOD P80

7519049

$13,64 Unit Price incl. VAT

16

BULKHEAD FLOOR

5256849

$47,24 Unit Price incl. VAT

17

RIVET

7661637

$2,09 Unit Price incl. VAT

18

CHAINCASE ASSEMBLY; INTERMD; RMK

1333255

9999999

Not Available

19

STUD-CLINCH M6X1.0X22 HT

7519291

9999999

Not Available

20

NUT-HEX-M6X1.0 8 ZOD NYL

7547505

$4,19 Unit Price incl. VAT

21

STEPPED STUD PLATE ASM 6 MM X 4 MM

1020066

$26,24 Unit Price incl. VAT

22

BULKHEAD COOLER WELD

1240874

9999999

Not Available

23

FLANGETTE-3BOLT 0MM OFFSET

5258020

$23,09 Unit Price incl. VAT

24

PAD-40X90

5814424

9999999

Not Available

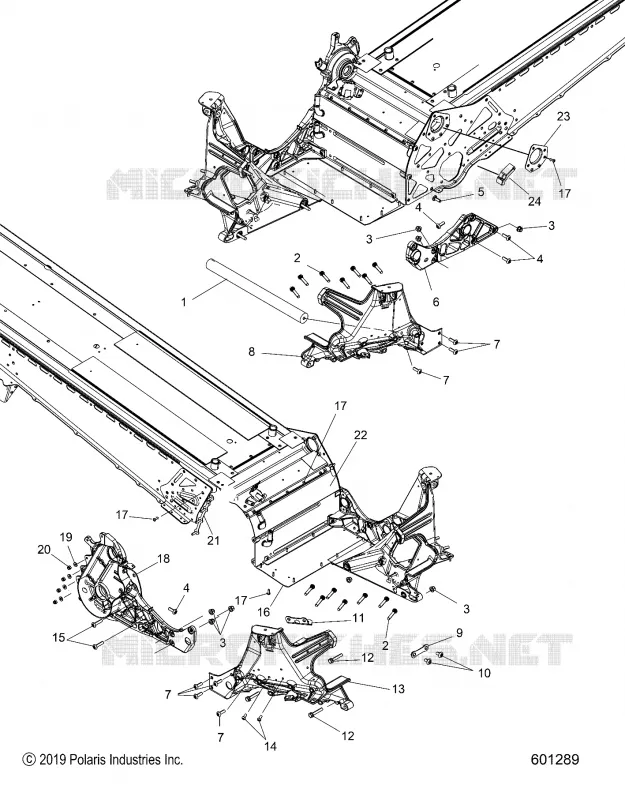

Find the detailed CHASSIS, BULKHEAD ASM. POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
