STEERING, SKI ASM. for POLARIS 550 INDY 144 ES from 2019

ELECTRICAL, BATTERY BOX ASM.

STEERING, H-BAR, STEERING POST, TIE ROD

STEERING, SKI ASM.

1

TOE; PLASTIC; LIME SQUEEZE

5435681630

Not Available

2

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

3

NUT-HEX-M6X1.0 ZOD NYL

7547650

$7,34 Unit Price incl. VAT

4

WSHR-FLAT M6.35X14.30X1.2 ZOD

7556737

$4,19 Unit Price incl. VAT

5

WASHER .406 X 1.25 X .125

7556130

$11,54 Unit Price incl. VAT

6

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$7,34 Unit Price incl. VAT

7

SKI STOP RUBBER

5414375

$47,24 Unit Price incl. VAT

8

PLASTIC SKI BUSHING

5136908

$27,29 Unit Price incl. VAT

9

SKI ASSEMBLY GLOSS BLACK

1823916070

Not Available

10

BOLT 10 MM X 1.5 MM X 155 MM

7519098

$23,09 Unit Price incl. VAT

11

3 STUD SKI RUNNER 8MM CARBIDE 60 DEG PNT

2879025

$120,74 Unit Price incl. VAT

12

WASHER-.344X.688X.063 FL-ZOD

7556524

$1,56 Unit Price incl. VAT

13

SCR-HXFL-M6X1.0X105 8.8 ZOD

7520233

$11,54 Unit Price incl. VAT

14

CL8.8 OLV-D

7518906

$6,29 Unit Price incl. VAT

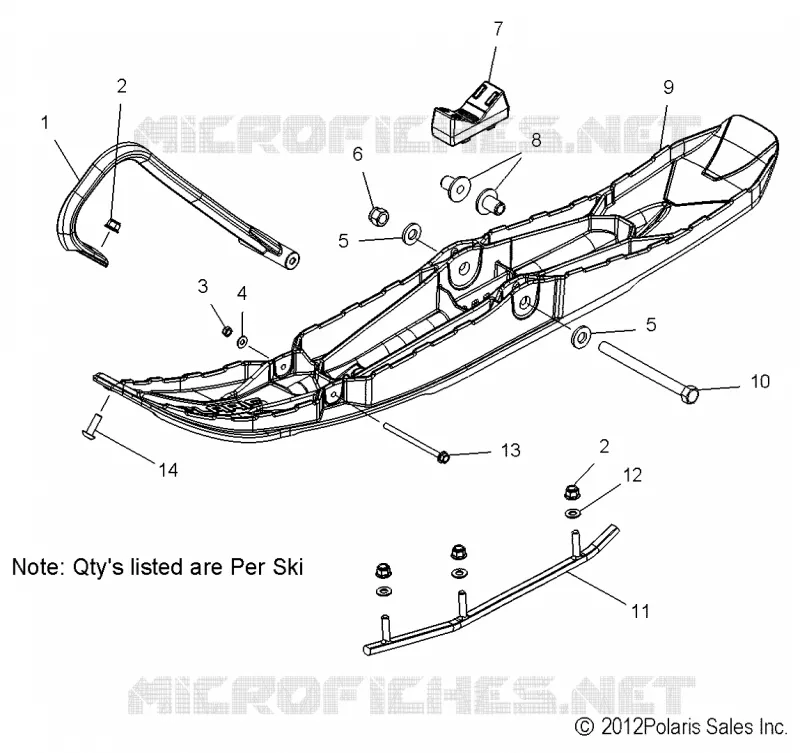

Find the detailed STEERING, SKI ASM. POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
