CHASSIS, CHASSIS ASM. AND OVER STRUCTURE for POLARIS 550 INDY 144 ES from 2019

CHASSIS, CHASSIS ASM. AND OVER STRUCTURE

1

SCR-HXFL-M8X1.25X50 DP ZODP30

7519245

$7,34 Unit Price incl. VAT

2

TUBE CAST SPACER

5632200

$26,24 Unit Price incl. VAT

3

ASM-FRAME TUBLR REAR;550

1024043

1024447

$1 186,49 Unit Price incl. VAT

4

PAD-RUBBER 1.88X1.38X.5

5813178

$52,49 Unit Price incl. VAT

5

STUD PLATE ASSEMBLY

1018776

$27,29 Unit Price incl. VAT

6

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

7

PAD-5X5CM

5813593

$8,39 Unit Price incl. VAT

8

PAD-6.5X25CM

5813662

$7,34 Unit Price incl. VAT

9

KIT-CHASSIS 144 F/C;NAT

2205277309

Not Available

9

ASM-TUNNEL 144 F/C SVC NAT

1018223309

Not Available

10

RIVET 4.8 MM

7661973

$2,09 Unit Price incl. VAT

11

SUPPORT AND GRIPPER TUBE; LEFT

5137724

$414,74 Unit Price incl. VAT

12

TUBULAR FRAME ASSEMBLY; FRONT; 550

1023095

$488,24 Unit Price incl. VAT

13

HEX FLANGE SCREW; 8 MM X 1.25 MM X 25 MM

7519243

$7,34 Unit Price incl. VAT

14

NUT-M6X1.0 FLG-NYLOC-OLIVE D

7547339

$2,09 Unit Price incl. VAT

15

BOLT-M6X1.0X15 HXFLG TAP/R-OD

7518513

9999999

Not Available

16

BRKT-COIL MOUNT

5256520

$26,24 Unit Price incl. VAT

17

SCR-HXFL-M6X1.0X55 8.8 ZOD

7519171

7521331-55

$10,49 Unit Price incl. VAT

18

RESONATOR MOUNT; UPPER

5137797

$68,24 Unit Price incl. VAT

19

RIVET

7661637

$2,09 Unit Price incl. VAT

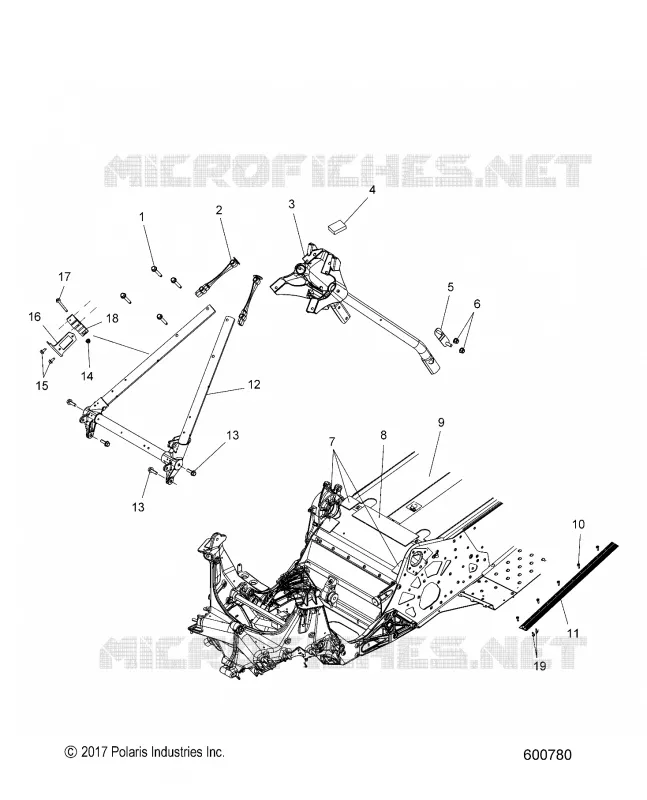

Find the detailed CHASSIS, CHASSIS ASM. AND OVER STRUCTURE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
