1
Engine displacement
800
2
Year
2004
3
Trim
800 FRONTIER CLASSIC
4
Parts Catalog
CONSOLE WIRE HARNESS
5
Parts Diagram
Parts Catalog
NOSEPAN
by
FRONT SUSPENSION
CONSOLE WIRE HARNESS
1
SCREW
7515199
$2,09 Unit Price incl. VAT
2
ASM-CONSOLE W/FOIL
2632649
9999999
Not Available
2
FOIL-CONSOLE SIDE1.5 X 11.25
5812401
9999999
Not Available
2
FOIL-CONSOLE LOUVER
5812402
9999999
Not Available
3
DECAL; NO PASS. WARN;BLK(10)
7075438
9999999
Not Available
4
KIT IGN.SWITCH
2200358
2205055
$141,74 Unit Price incl. VAT
5
DECAL-IGNITION
7170039
9999999
Not Available
6
DART CLIP; PLASTIC
7670090
$2,09 Unit Price incl. VAT
7
POD RECEPTACLE MOUNT; 12 VOLT
4010638
$52,49 Unit Price incl. VAT
8
NUT IGNITION
7547035
$15,74 Unit Price incl. VAT
9
CAP W/KEY
5410611
9990000
Not Available
10
PLUG-RECOIL
5434438
9999999
Not Available
11
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
12
SINGLE POLE SINGLE THROW SEALED RELAY
4010725
$89,24 Unit Price incl. VAT
12
FUSIBLE LINK HARNESS
2461076
9999999
Not Available
13
HARNESS-MAIN W/ACE
2461170
9999999
Not Available
14
HOUSING PACK
4020063
9999999
Not Available
15
HOUSING-CONNECTOR PAC#12186213
4010193
9999999
Not Available
16
NUT NYLOK 10-24 Y
7541925
$1,56 Unit Price incl. VAT
17
SCREW W/WASHER
7512050
9999999
Not Available
18
CONTROLLER-M-10 ACEELECTRIC
4010597
9999999
Not Available
19
HARNESS-ENG 4-STROKE ACS SNO
2461169
9999999
Not Available

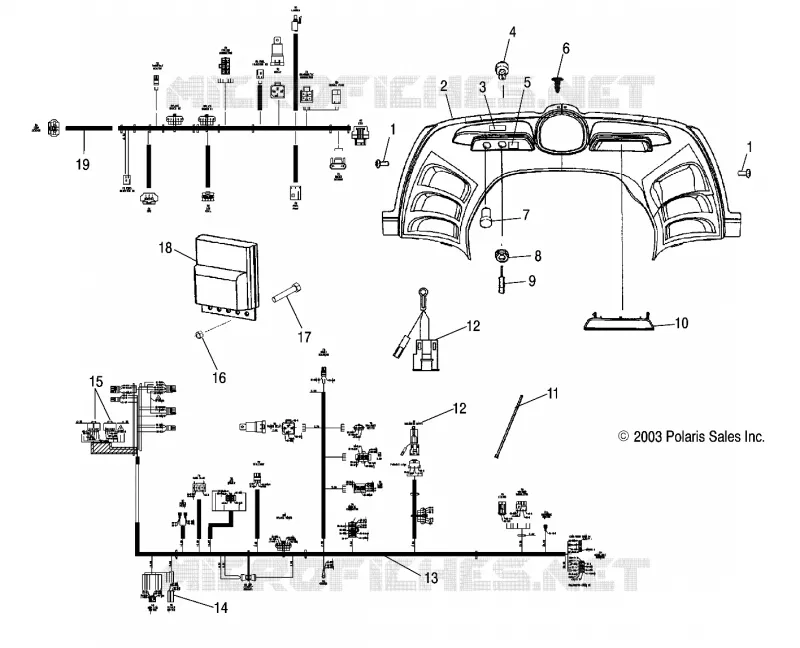

Find the detailed CONSOLE WIRE HARNESS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
