1
Engine displacement
800
2
Year
2004
3
Trim
800 FRONTIER CLASSIC
4
Parts Catalog
DRIVEN CLUTCH
5
Parts Diagram
Parts Catalog
DRIVE CLUTCH
by
ELECTRIC MODULE (M-10)(ACE)
DRIVEN CLUTCH
-
1
1
1
2
3
13
13
13
13
5
6
7
8
9
10
11
12
13
14
-
ASM-DRIVEN CLUTCHBSC204 W/B
1321927
9999999
Not Available
1
SCREW
7512048
9999999
Not Available
2
PLATE-DRIVEN VENTED
5243158
9999999
Not Available
3
DRIVEN BUSHING; LARGE
3569803
9999999
Not Available
4
WASHER-1.50X3.00X.075 FL-Y
7555865
9999999
Not Available
4
WASHER 1.505 X 2.00 X 0.30
7556804
$1,56 Unit Price incl. VAT
4
WASHER 1.50 X 2.00 X .025
7556076
$9,44 Unit Price incl. VAT
4
WASHER 1.5 X 2.0 X .020
7555898
$2,09 Unit Price incl. VAT
5
PIN-ADJUSTABLE DRIVEN
5020653
$52,49 Unit Price incl. VAT
6
CAP-DRIVEN VENTED
5243157
9999999
Not Available
7
SCREW
7515133
$7,34 Unit Price incl. VAT
8
CAM DRIVEN ADJUSTABLE
5222878
9999999
Not Available
9
RAMP BUTTON
5430466
$12,59 Unit Price incl. VAT
10
CLUTCH SPRING
7041499
9999999
Not Available
11
KEY SQUARE
7721103
9999999
Not Available
12
RAMP DRIVEN R11 MACH
5131297
9999999
Not Available
13
WASHER 1.505 X 2.00 X 0.30
7556804
$1,56 Unit Price incl. VAT
14
RETAINING RING
7714804
9999999
Not Available

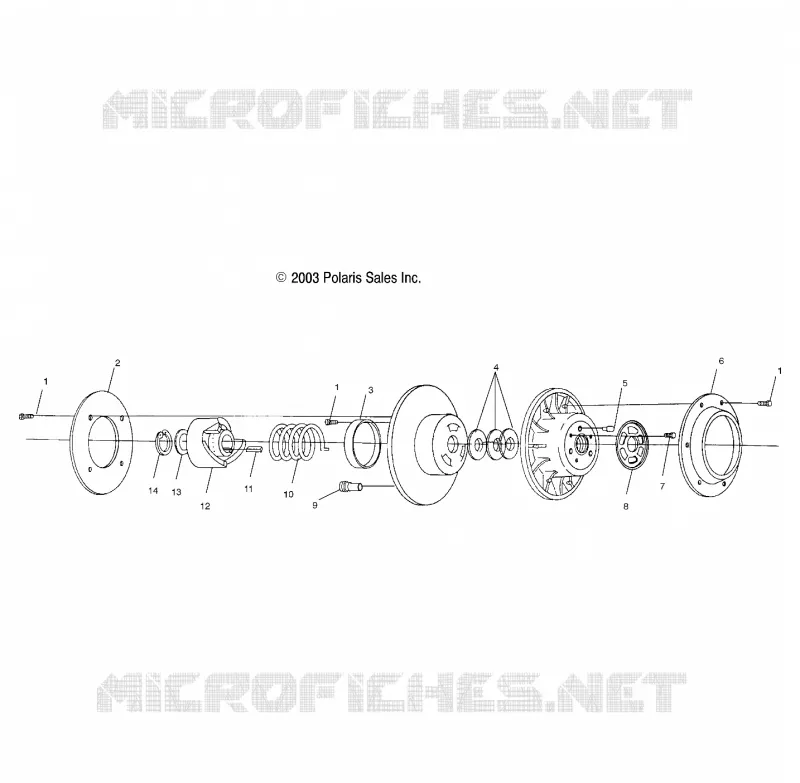

Find the detailed DRIVEN CLUTCH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
