Parts Catalog
BRAKES, BRAKE LINES AND MASTER CYLINDER
5
Parts Diagram
Parts Catalog
BODY, STEERING BOOT
by
DRIVE TRAIN, REAR HALF SHAFT
BRAKES, BRAKE LINES AND MASTER CYLINDER
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
20
21
1
BANJO BOLT; 10 MM X 1.00
1910499
$10,49 Unit Price incl. VAT
2
BANJO BOLT; 10 MM X 1.25-6G
1910958
$14,69 Unit Price incl. VAT
3
SWITCH
4014225
$167,99 Unit Price incl. VAT
4
ASM-M/CYL TANDEM 5/8 SHORT FLG
1912656
9999999
Not Available
5
LINE-BRK RL 36 20F 70B 225 JF
1912679
9999999
Not Available
6
LINE-BRK RR 43 90F 70B 45 JF
1912680
9999999
Not Available
7
LINE-BRK MCT 64 45B 20F 270 JF
1912681
$141,74 Unit Price incl. VAT
8
LINE-BRK FL 34 70B 45B 140 JF
1912712
9999999
Not Available
9
LINE-BRK FR 31 70B 45B 50 JF
1912713
9999999
Not Available
10
SEAL
5413212
9999999
Not Available
11
TEE FITTING BRAKE
7052293
$110,24 Unit Price incl. VAT
12
STRAP-PANDUIT DBL LOOP 260MM
7081916
$9,44 Unit Price incl. VAT
13
CLAMP CABLE
7080499
$10,49 Unit Price incl. VAT
14
WIRE/TUMB CLAMP; .25
7081246
$2,09 Unit Price incl. VAT
15
CLIP-RETAINING DUAL .250 LINE
7670126
$9,44 Unit Price incl. VAT
16
SCREW
7512025
$9,44 Unit Price incl. VAT
17
SCREW
7512084
$2,09 Unit Price incl. VAT
18
POP RIVET
7621323
$2,09 Unit Price incl. VAT
19
CLIP
7670102
$4,19 Unit Price incl. VAT
20
HOSE CLAMP
7080683
$4,19 Unit Price incl. VAT
21
SCREW 10-24X5/8 (10)
7517756
$2,09 Unit Price incl. VAT

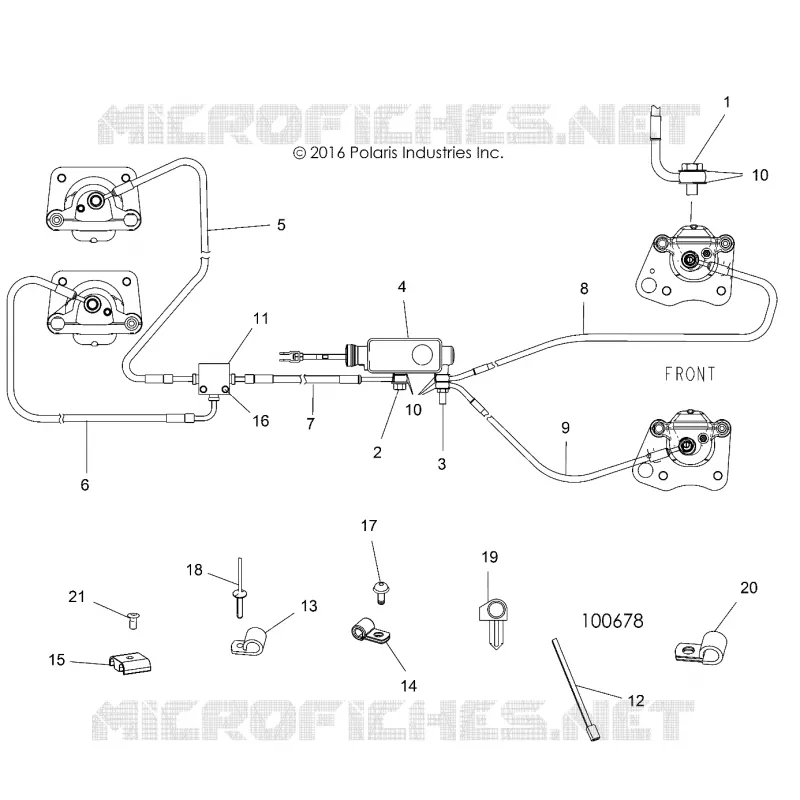

Find the detailed BRAKES, BRAKE LINES AND MASTER CYLINDER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
