Engine displacement
570
2
Year
2018
3
Trim
ACE 570
4
Parts Catalog
REAR BODYWORK RACK AND FENDERS
5
Parts Diagram
Parts Catalog
FUEL TANK
by
BARKE CALIPER MOUNTING
REAR BODYWORK RACK AND FENDERS
1
2
3
4
5
6
7
8
9
10
11
12
13
13
13
13
14
15
16
17
1
CARGO BOX; REAR; GLOSS BLACK
5454129070
Not Available
2
FENDER; REAR; LEFT; WHITE LIGHTNING
5450076599
Not Available
3
FENDER; REAR; RIGHT; WHITE LIGHTNING
5450077599
Not Available
4
CLOSEOFF PANEL ASSEMBLY
2636632
9999999
Not Available
5
BOX-MAINT PANEL;REMOVABLE;BLK
5452377070
Not Available
6
UNDERSEAT COVER PANEL; LEFT; GLOSS BLACK
5450299070
Not Available
7
PANEL-UNDERSEAT COVER;RH;BLK
5454089070
Not Available
8
GRILL INTAKE; COVER; LEFT; GLOSS BLACK
5450392070
Not Available
9
INTAKE GRILL COVER; RIGHT; GLOSS BLACK
5450393070
Not Available
10
LATCH GROMMET
5413428
$6,29 Unit Price incl. VAT
11
TURN LATCH 1/4TH
5451143
$20,99 Unit Price incl. VAT
12
WASHER
7555919
$7,34 Unit Price incl. VAT
13
BOLT
7519650
$7,34 Unit Price incl. VAT
14
U-TYPE NUT; M6-1.0
7547674
$2,09 Unit Price incl. VAT
15
GROMMET
5412507
$12,59 Unit Price incl. VAT
16
CLOSEOFF PANEL SHIELD
5814322
$83,99 Unit Price incl. VAT
17
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT

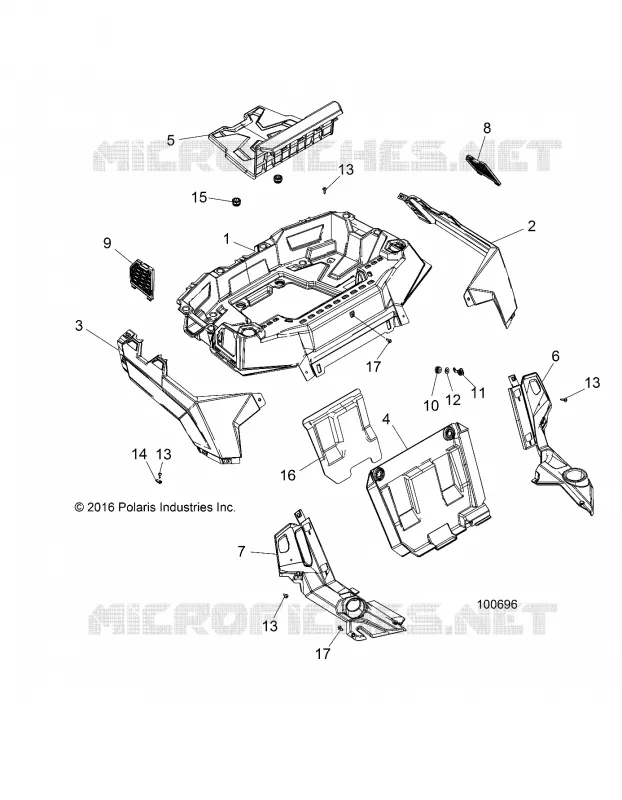

Find the detailed REAR BODYWORK RACK AND FENDERS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
