IGNITION SYSTEM for POLARIS SPORTSMAN TOURING EPS 850 - A12DN8EAF/EAH/EAR/EAW from 2012

SWITCHES, SENSORS, ECU AND CONTROL MODULES

IGNITION SYSTEM

1

TUBING-NYLON 5MMX144MM BLK

8360077

8360209

$27,29 Unit Price incl. VAT

2

FLYWHEEL-450W 165MM W/ENCODRNG

4011428

2205188

$902,99 Unit Price incl. VAT

3

COUPLER-WATERPUMP FLYWHEEL

5136307

$52,49 Unit Price incl. VAT

4

BOLT-WATERPUMP DRIVE LH

5137471

9999999

Not Available

5

SCR-M6X1.0X30 HX/SOC/CP-Y/D

7518544

7527860

$5,24 Unit Price incl. VAT

6

STATOR-450W W/GROMMET

4011427

9999999

Not Available

7

SCR-M6X1.0X10 SHCS

7518765

7527859

$9,44 Unit Price incl. VAT

8

RETAINER-STATOR WIRE

5250018

9999999

Not Available

9

STATOR COVER GASKET

5813680

$73,49 Unit Price incl. VAT

10

FITTING-6MM BRASS

7052463

$17,84 Unit Price incl. VAT

11

SPARK PLUG(4)

3022438

9999999

Not Available

12

HEX FLANGE SCREW; 6 MM X 20 MM

7518576

$6,29 Unit Price incl. VAT

13

SPARKPLUG WIRE

4013327

$99,74 Unit Price incl. VAT

14

SPARKPLUG WIRE; PTO SIDE

4013328

$115,49 Unit Price incl. VAT

15

COIL-EFI

4010425

2876049

$451,49 Unit Price incl. VAT

16

SCR-10X1.00 TX PN HI/LO-Y

7518922

$6,29 Unit Price incl. VAT

17

BOLT-WATERPUMP DRIVE;LH

5137241

$68,24 Unit Price incl. VAT

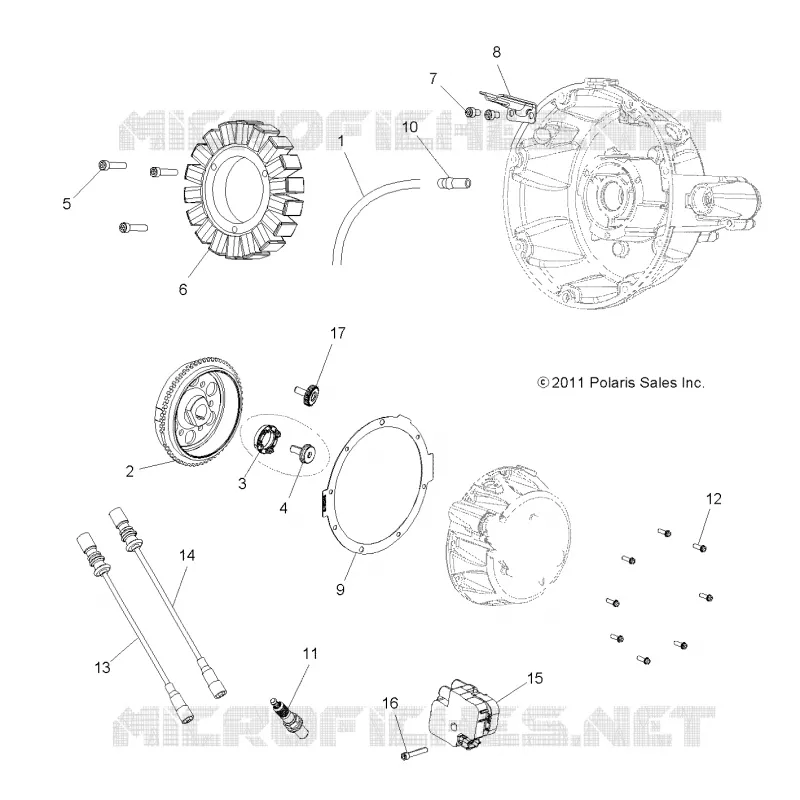

Find the detailed IGNITION SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
