1
Engine displacement
570
2
Year
2019
3
Trim
SPORTSMAN 570 SP TOURING
4
Parts Catalog
WHEELS, FRONT TIRE AND BRAKE DISC
5
Parts Diagram
Parts Catalog
TOOL KIT
by
WHEELS, REAR TIRE AND BRAKE DISC
WHEELS, FRONT TIRE AND BRAKE DISC
1
2
3
4
5
6
7
8
9
10
11
12
1
TIRE 26 X 8 X 14
5415600
$250,94 Unit Price incl. VAT
2
14 X 5.5 FRONT WHEEL; MATTE BLACK
1522456458
Not Available
3
HUB COVER; MATTE BLACK
5451374458
Not Available
4
COTTER PIN
7661404
$9,44 Unit Price incl. VAT
5
CONE WASHER
7555796
$14,69 Unit Price incl. VAT
6
AWD WHEEL HUB
5134310
5143612
$157,49 Unit Price incl. VAT
7
PRESS FIT STUD
7518378
$3,14 Unit Price incl. VAT
8
FRONT DISC BRAKE
5244314
$141,74 Unit Price incl. VAT
9
BOLT
7512325
$4,19 Unit Price incl. VAT
10
CASTLE NUT; 18 MM X 1.5 MM X 13 MM
7547406
$9,44 Unit Price incl. VAT
11
RIM VALVE
1525017
$12,59 Unit Price incl. VAT
12
WHEEL NUT
7547309
$6,81 Unit Price incl. VAT

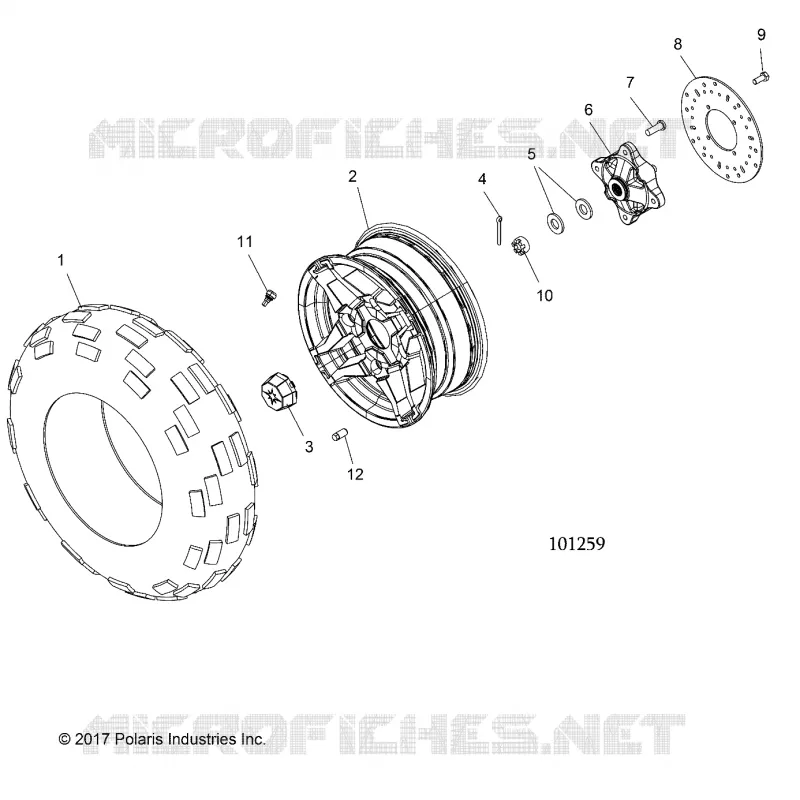

Find the detailed WHEELS, FRONT TIRE AND BRAKE DISC POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
