1
Engine displacement
570
2
Year
2019
3
Trim
SPORTSMAN 570 SP TOURING
4
Parts Catalog
SWITCHES, SENSORS AND ECM
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, REAR DRIVE SHAFT
by
ENGINE, AIR INTAKE SYSTEM
SWITCHES, SENSORS AND ECM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
TRANSMISSION SPEED SENSOR
4013908
4082135
$204,74 Unit Price incl. VAT
2
IGNITION SWITCH NUT
5433733
9999999
Not Available
3
STOPLIGHT SWITCH
4110164
2890637
$325,49 Unit Price incl. VAT
4
KEY SWITCH KEY COVER
5433534
5465307
$26,24 Unit Price incl. VAT
5
3 POSITION KEY SWITCH
4012165
4083589
$202,64 Unit Price incl. VAT
6
SCREW TAPPINGHEXHEAD1/4-20X.75
3234247
$10,49 Unit Price incl. VAT
7
O-RING
3234302
$13,64 Unit Price incl. VAT
8
GEAR POSITION SWITCH PIN
7661999
$220,49 Unit Price incl. VAT
9
RETAINING RING
3233834
$19,94 Unit Price incl. VAT
10
ELECTRONIC CONTROL UNIT (ECU) BASE
4012838
$892,49 Unit Price incl. VAT
11
MNT-ECM REAR BLK
5438708070
Not Available
12
SCR-#10X1/2-HI/LO-PN-T25 TRX-M
7519091
$6,29 Unit Price incl. VAT
13
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
14
CABLE CLAMP
7080367
$4,19 Unit Price incl. VAT
15
HEX FLANGE SCREW; 6 MM X 20 MM
7518576
$6,29 Unit Price incl. VAT
16
FLANGE NUT
7542343
$9,44 Unit Price incl. VAT
17
THEMISTER SENSOR
4010644
$141,74 Unit Price incl. VAT
18
TMAP SENSOR
2411528
$178,49 Unit Price incl. VAT
19
BOLT(1)
7516603
$19,94 Unit Price incl. VAT
20
THROTTLE POSITION SENSOR ASSEMBLY
3131705
$367,49 Unit Price incl. VAT
21
SCREW
3131628
$9,44 Unit Price incl. VAT
22
CRANK POSITION SENSOR
2411719
$194,24 Unit Price incl. VAT

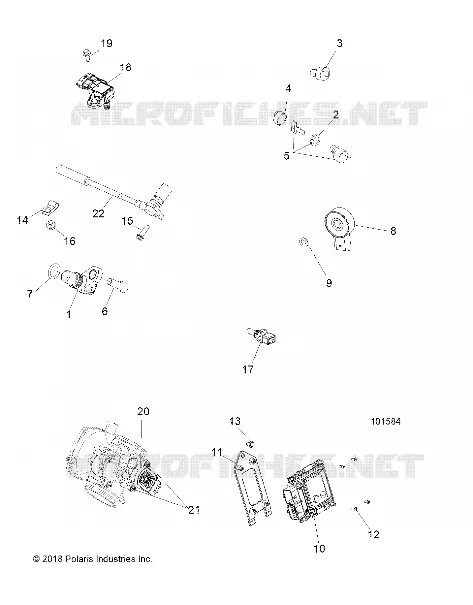

Find the detailed SWITCHES, SENSORS AND ECM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
