1
Engine displacement
autre
2
Year
1992
3
Trim
SWE LITE - S923033
4
Parts Catalog
STEERING INDY LITE/STAR LITE (4921332133011A)
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION AND SKI INDY LITE/STAR LITE (4921332133009A)
by
SUSPENSION INDY LITE/STAR LITE (4921332133013A)
STEERING INDY LITE/STAR LITE (4921332133011A)
1
GRIP H BAR BLACK
5410272067
Not Available
1
HEATER GRIP ASM.
2460313
9999999
Not Available
2
HANDLEBARADJBLK.
1843036067
Not Available
3
BLOCK THROTTLE/BRAKE
5431265
5431592
$73,49 Unit Price incl. VAT
4
LEVER-BRAKE
5430602
9999999
Not Available
5
SWITCH DIMMER
4110104
9999999
Not Available
6
SWITCH; BRAKE LIGHT
4110105
9999999
Not Available
7
RETAINING PIN
7661624
$23,09 Unit Price incl. VAT
8
WASHER
7555730
$7,34 Unit Price incl. VAT
9
RETAINING RING
7710401
$7,34 Unit Price incl. VAT
10
SWITCH AUXILIARY SHUT-OFF
4110106
9999999
Not Available
11
ADAPTER BLOCK
5430604
$26,24 Unit Price incl. VAT
12
THROTTLE LEVER
5430601
9999999
Not Available
13
COVER H#BAR(W/O SPEEDO) (WO/Speedometer)
5431233070
Not Available
13
COVER H#BAR W/SPEEDO (W/Speedometer)
5431232070
Not Available
14
SCREW
7512024
$9,44 Unit Price incl. VAT
15
BOOT STRG.POST
5431234070
Not Available
16
SCREW
7511848
$7,34 Unit Price incl. VAT
17
HANDLEBAR BLOCK; MEDIUM GLOSS BLACK
5630187067
Not Available
18
SCREW SET
7512465
$7,34 Unit Price incl. VAT
19
BRKT UP.STRG.BUSH BLK.
5220887067
Not Available
20
BUSHING STRG. UPPER
5430966
5433416
$16,79 Unit Price incl. VAT
21
BUSHING UPPER STRG.
5431138
5433415
$16,79 Unit Price incl. VAT
22
BOLT
7515321
9999999
Not Available
23
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
24
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
25
BOLT
7512265
9999999
Not Available
26
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
27
POST STEERING BLK. [No Longer Available] (Star)
1823149067
Not Available
27
POST STRG BLK. (Indy)
1823150067
Not Available
28
SPEEDOMETER
3280112
9999999
Not Available
29
SPACER
5410592
Not Available
30
SPACER SPEEDO.MTG.
5810442
9999999
Not Available
31
PLATE MTG (SPEEDO)
5211189
9999999
Not Available
32
WASHER FLAT
7558201
$9,44 Unit Price incl. VAT
33
HAIRPIN COTTER
7660701
9999999
Not Available
34
BRKT BOLT RETAINER
5222421
9999999
Not Available
35
BOLT
7512394
7512377
$9,44 Unit Price incl. VAT
36
FROG; LH STRG.
5222402
9999999
Not Available
36
FROG; RH STRG.
5222403
9999999
Not Available
37
ROD; DRAG LINK
5333005
9999999
Not Available
38
ROD END RH
7060125
7060165
$99,74 Unit Price incl. VAT
38
ROD END; LH
7060151
7060166
$99,74 Unit Price incl. VAT
39
NUT LH (10)
7542424
$1,56 Unit Price incl. VAT
39
NUT HEX RH(10)
7542401
$4,19 Unit Price incl. VAT
40
ROD TIE BLK.
5333006067
Not Available
41
ROD END;LH
7060124
7060164
$99,74 Unit Price incl. VAT
42
O RING (10)
5410591
9999999
Not Available
43
BOOT; TIE ROD
5410639
9999999
Not Available
44
RETAINER BOOT
5222283
Not Available
45
BOLT
7512404
$7,34 Unit Price incl. VAT
46
NUT; FLEXLOC
7542452
7542411
$6,29 Unit Price incl. VAT
47
BUSHING; SPACER
5333009
9999999
Not Available
48
BUSHING
5630371
9999999
Not Available
49
WASHER
7555817
9999999
Not Available
50
BOLT
7512572
9999999
Not Available
51
NUT FLANGE
7542423
$7,34 Unit Price incl. VAT
52
COTTER PIN
7661203
$2,09 Unit Price incl. VAT
53
HOOP STRG BLK.
1011782067
Not Available
54
BOLT
7512298
9999999
Not Available
56
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
57
NUT LOCK
7542403
9999999
Not Available
58
CLIP (10)
5222672
Not Available
59
BLOCK H BAR UPPER BLK.
5630382067
Not Available
60
RINGMOUNT RECOIL BLK.
5224442067
Not Available
61
WASHER WROUGHT
7558302
$3,14 Unit Price incl. VAT
62
CARRIAGE BOLT
7512193
$4,19 Unit Price incl. VAT
63
RIVET
7661617
$7,34 Unit Price incl. VAT
64
CLIP-SPEED
7670044
9999999
Not Available
65
CLIP; STRG.BOOT
7670073
9999999
Not Available
66
SCREW
7515434
9999999
Not Available
68
WASHER
7555746
7555904
$1,56 Unit Price incl. VAT
68
DRIVE ANGLE (STARLITE)
3280114
Not Available
68
CABLE SPEEDOMETER
3280113
Not Available

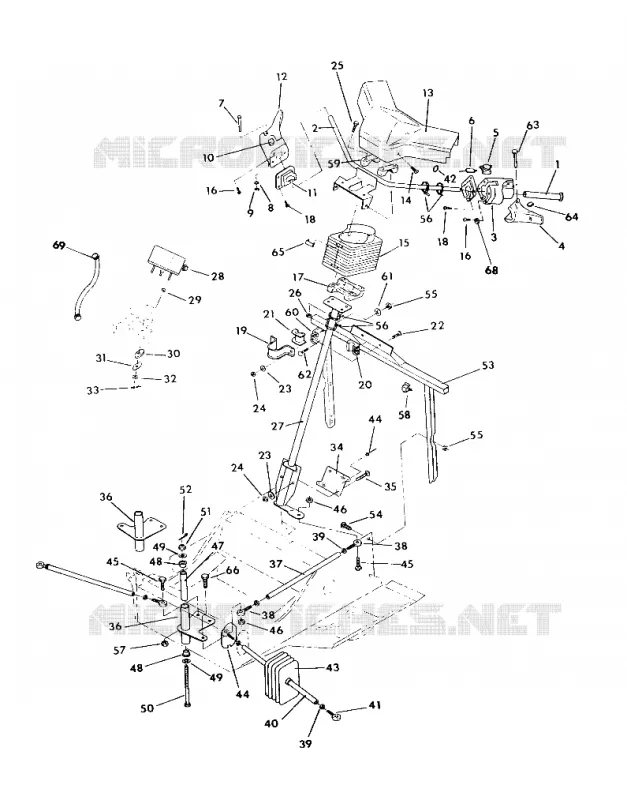

Find the detailed STEERING INDY LITE/STAR LITE (4921332133011A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
