1
Engine displacement
autre
2
Year
1992
3
Trim
SWE LITE - S923033
4
Parts Catalog
ENGINE MOUNTING STAR LITE (4921332133021A)
5
Parts Diagram
Parts Catalog
SUSPENSION INDY LITE/STAR LITE (4921332133013A)
by
HOOD _ FOAM/FOIL INDY LITE/STAR LITE (4921332133023A)
ENGINE MOUNTING STAR LITE (4921332133021A)
1
DESC NOT_AVAILABLE
1260559067
Not Available
2
MANIFOLD WELD.
1260566029
Not Available
3
GASKET EXHAUST
5830001
9999999
Not Available
4
NUT
7542323
9999999
Not Available
5
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
6
ENG. EC25PS-01 [No Longer Available]
1211474
Not Available
7
PLATE ENG.MT BLK.
5222539067
Not Available
8
BOLT
7512539
$7,34 Unit Price incl. VAT
9
SPRING LOCK WASHER
7553101
$7,34 Unit Price incl. VAT
10
CLAMP-HOSE
7080134
9999999
Not Available
11
FUEL LINE-50FT.PKG.
2870563
8450003-1525
$136,49 Unit Price incl. VAT
12
FUEL FILTER
2530008
9999999
Not Available
13
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
14
FUEL SHUT OFF VALVE
7052039
9999999
Not Available
15
FUEL LINE3/16ID-2FT.
5521133
9999999
Not Available
16
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
17
PUMP FUEL (Incl. 2-5)
3083436
Not Available
18
SMALL IN-LINE FILTER
2530009
$12,59 Unit Price incl. VAT
19
BOLT
7512566
9999999
Not Available
20
WASHER LOCK
7575202
$9,44 Unit Price incl. VAT
21
WASHER
5210748
$7,34 Unit Price incl. VAT
22
BUSHING
5430261
$13,64 Unit Price incl. VAT
23
DESC NOT_AVAILABLE
1260558067
Not Available
24
TANK OIL
5431225
Not Available
25
STRAP ENG.MT BLK.
5211266067
Not Available
26
MOUNT; ENGINE
5222540
5222540-067
Not Available
27
MOUNT-MTR.
3110020
Not Available
28
SCR-3/8-24X1 1/4-HX CAP(10)
7512405
$6,29 Unit Price incl. VAT
29
BOLT
7512457
$7,34 Unit Price incl. VAT
30
WASHER
7555720
7555806
$1,56 Unit Price incl. VAT
31
LOCK WASHER
7571611
9999999
Not Available
32
NUT LOCK
7542403
9999999
Not Available
33
OIL CAP GASKET
5810141
$4,19 Unit Price incl. VAT
34
OIL TANK CAP
5430779
$31,49 Unit Price incl. VAT
35
FITTING OUTLET
7052042
$13,64 Unit Price incl. VAT
36
BOLT
7512240
9999999
Not Available
37
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
38
WASHER WROUGHT
7558302
$3,14 Unit Price incl. VAT
39
HANDLE-RECOIL
5430520
Not Available
40
HOSE-SILENCER
5410340
Not Available
41
VIBRATION DAMPENER
5410467
9999999
Not Available
42
PAD
5810249
Not Available
43
BOLT-CARRIAGE
7512263
9999999
Not Available
45
FLEXLOC NUT
7542103
$10,49 Unit Price incl. VAT
46
BOX SILENCER
5431237
Not Available
47
SPRING HOLDDOWN
7041244
9999999
Not Available
48
BOOT-SILENCER
5410311
9999999
Not Available
49
LINE VENT (38.0 )
5521087
8360009-600
$83,99 Unit Price incl. VAT
50
LINE FUEL GOODYEAR 1/4SAE#30R
8450040
8450040-600
$136,49 Unit Price incl. VAT
51
SPRING
7042029
$10,49 Unit Price incl. VAT
52
SPRING; EXHAUST
7042031
7041687
$12,59 Unit Price incl. VAT
53
MOUNT ENGINE
3110028
9999999
Not Available
54
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
55
DECAL SILENCER [No Longer Available]
7072087
Not Available
56
BR8ES SPARK PLUG; NGK(4)
3070156
$7,34 Unit Price incl. VAT
57
CABLE; THROTTLE
7080410
9999999
Not Available

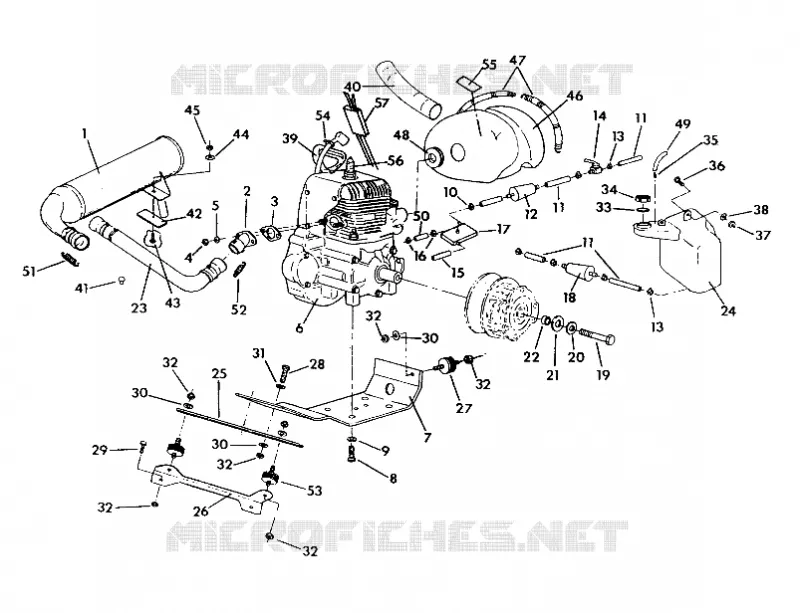

Find the detailed ENGINE MOUNTING STAR LITE (4921332133021A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
