DRIVE TRAIN, MAIN GEARCASE INTERNALS for POLARIS SPORTSMAN 850 SP from 2017

DRIVE TRAIN, MAIN GEARCASE INTERNALS

1

ASM-TRANS 850;BOSS/LUK

1332848

$4 866,74 Unit Price incl. VAT

2

INPUT SHAFT

3235194

$435,74 Unit Price incl. VAT

3

EXTERNAL RETAINING RING

3234318

$5,76 Unit Price incl. VAT

4

RING; RETAINING BASIC; EXTERNA

3234327

$13,64 Unit Price incl. VAT

5

INTERNAL RETAINING RING

3234741

$17,84 Unit Price incl. VAT

6

RING-RETAINING

3233699

$13,64 Unit Price incl. VAT

7

EXTERNAL RETAINING RING

3234641

$26,24 Unit Price incl. VAT

8

THRUST WASHER; 1.300 X .995 X .065

3234248

$17,84 Unit Price incl. VAT

9

SHIM

3234643

$68,24 Unit Price incl. VAT

10

SHIM

3234644

$26,24 Unit Price incl. VAT

11

WASHER; THRUST

3234646

$41,99 Unit Price incl. VAT

12

INPUT SHAFT SHIM PACK KIT

2204343

$54,59 Unit Price incl. VAT

13

SHIM KIT

2204268

$68,24 Unit Price incl. VAT

14

SNAP RING

3233106

$10,49 Unit Price incl. VAT

15

WASHER; THRUST

3234757

$20,99 Unit Price incl. VAT

16

DOG-ENGAGEMENT GTO HIGH

3235190

$136,49 Unit Price incl. VAT

17

BEARING

3233019

$54,59 Unit Price incl. VAT

18

BEARING

3233020

$80,84 Unit Price incl. VAT

19

BALL BEARING

3233265

$68,24 Unit Price incl. VAT

20

BALL BEARING

3234651

$27,29 Unit Price incl. VAT

21

BEARING; BALL; 17 X 40 X 12

3234274

$47,24 Unit Price incl. VAT

22

NEEDLE BEARING

3234759

$27,29 Unit Price incl. VAT

23

BALL BEARING

3234652

$27,29 Unit Price incl. VAT

24

BEARING; NEEDLE

3234655

$27,29 Unit Price incl. VAT

25

NEEDLE BEARING

3234656

$27,29 Unit Price incl. VAT

26

BEARING

3233018

$47,24 Unit Price incl. VAT

27

SPROCKET; 44 TOOTH

3234998

$125,99 Unit Price incl. VAT

28

SPRING; WAVE

3234688

$19,94 Unit Price incl. VAT

29

PRIMARY SHAFT SUB ASSEMBY; 50 TOOTH

3235191

$577,49 Unit Price incl. VAT

30

OUTPUT ASSEMBLY; FRONT

3234723

$414,74 Unit Price incl. VAT

31

SUB ASSSEMBLY; BEARING COVER

3235198

$40,94 Unit Price incl. VAT

32

OUTPUT SHAFT

3235195

$430,49 Unit Price incl. VAT

33

REVERSE SHAFT; 53 TOOTH

3234774

$367,49 Unit Price incl. VAT

34

INPUT SHAFT; 25 TOOTH

3235063

$593,24 Unit Price incl. VAT

35

SILENT CHAIN

3234737

$314,99 Unit Price incl. VAT

36

SILENT CHAIN

3234738

$456,74 Unit Price incl. VAT

37

HELICAL GEAR; 42T

3235133

$152,24 Unit Price incl. VAT

38

GEAR; 67T

3234706

$173,24 Unit Price incl. VAT

39

SPROCKET; 48 TOOTH

3234707

$68,24 Unit Price incl. VAT

40

SPROCKET 23 TOOTH

3234708

3235544

$73,49 Unit Price incl. VAT

41

DOG; ENGAGEMENT; LOW

3234718

$346,49 Unit Price incl. VAT

42

DOG-ENGAGEMENT GTO REV/LOW

3235341

$335,99 Unit Price incl. VAT

43

SUB ASSSEMBLY; BEARING COVER

3235198

$40,94 Unit Price incl. VAT

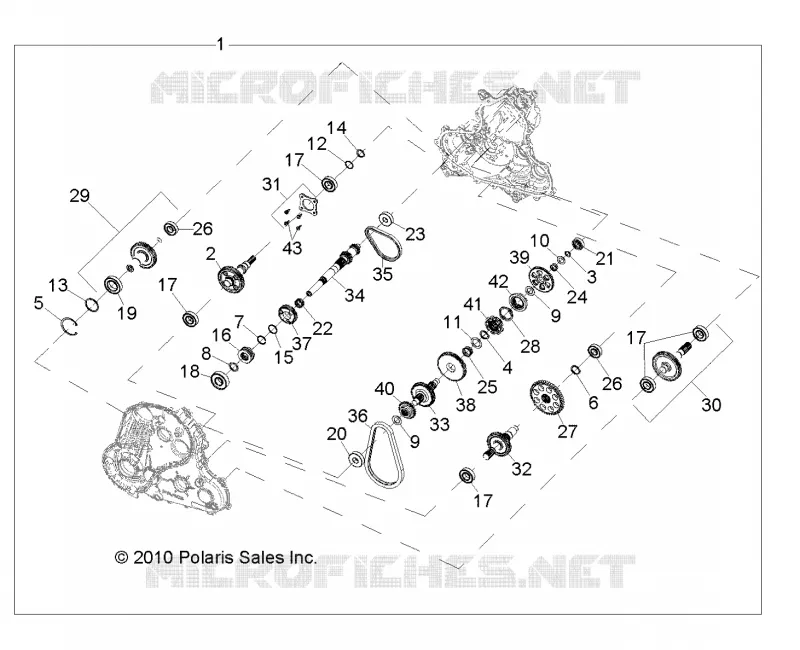

Find the detailed DRIVE TRAIN, MAIN GEARCASE INTERNALS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
