1
Engine displacement
850
2
Year
2017
3
Trim
SPORTSMAN 850 SP
4
Parts Catalog
DRIVE TRAIN, SECONDARY CLUTCH
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, REAR GEARCASE INTERNALS
by
ENGINE, COOLING SYSTEM AND WATER PUMP
DRIVE TRAIN, SECONDARY CLUTCH
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
2
3
4
5
6
7
8
9
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
11
12
13
14
15
16
17
18
1
ENG BRAKING SYSTEM (EBS) DRIVING CLUTCH
1323422
$766,49 Unit Price incl. VAT
2
ORV DRIVE BELT
3211160
$209,99 Unit Price incl. VAT
3
HEX FLANGE BOLT OLIVE 10MMX1.25MMX60MM
7519210
$3,14 Unit Price incl. VAT
4
WASHER-FLAT 400X1.75X.188THK Z
7556936
$14,69 Unit Price incl. VAT
5
WASHER-0.75X.400X.03 FL-Y
7556976
$9,44 Unit Price incl. VAT
6
SCREW-HELIX; PATCH
3234754
$10,49 Unit Price incl. VAT
7
SLOTTED SPRING PIN; .125 X .625
3234202
$7,34 Unit Price incl. VAT
8
RETAINER E-RING
7710523
$5,24 Unit Price incl. VAT
9
THRUST WASHER
7556226
$10,49 Unit Price incl. VAT
10
SPRING-DRIVEN 140-220
7044511
$141,74 Unit Price incl. VAT
11
SPIDER-9.5 20T MACH
3235862
$167,99 Unit Price incl. VAT
12
ROLLER PIN
3234201
$31,49 Unit Price incl. VAT
13
CAM ASSEMBLY
3235971
$803,24 Unit Price incl. VAT
14
PUCK; SQUARE TIED; DRIVEN CLUTCH
3514926
$26,24 Unit Price incl. VAT
15
ROLLER
3514929
$52,49 Unit Price incl. VAT
16
RETAINING RING
3235859
$25,19 Unit Price incl. VAT
17
WASHER-THRUST .796X2.43X.120
3235860
$20,99 Unit Price incl. VAT
18
SHIM; 38 X 62 X 1.50
3235861
$52,49 Unit Price incl. VAT

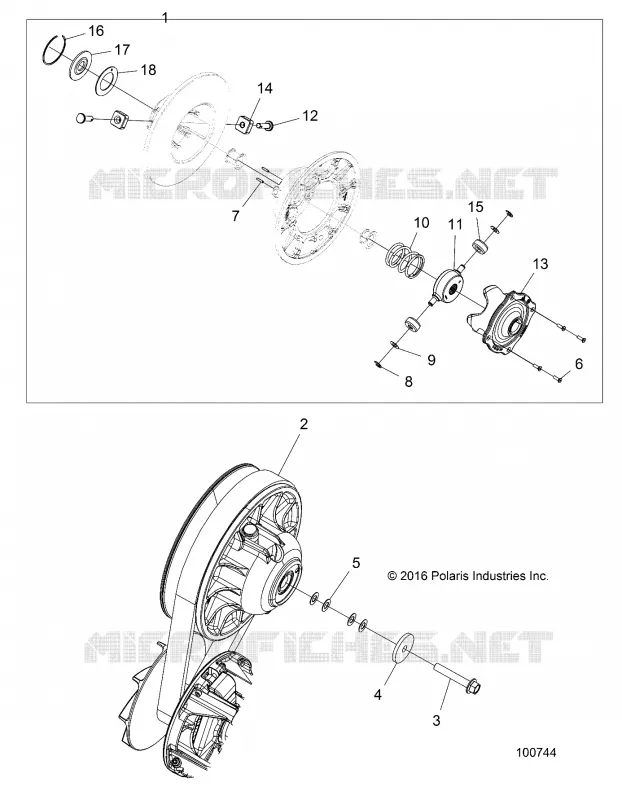

Find the detailed DRIVE TRAIN, SECONDARY CLUTCH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
