1
Engine displacement
500
2
Year
2018
3
Trim
ACE 500 SOHC
4
Parts Catalog
ENGINE, EXHAUST SYSTEM
5
Parts Diagram
Parts Catalog
ENGINE, ENGINE AND TRANSMISSION MOUNTING
by
ENGINE, EXHAUST SYSTEM, SHIELDS
ENGINE, EXHAUST SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
EXHAUST PIPE ASSEMBLY
1262956
9999999
Not Available
2
WELD-EXHAUST SILENCER
1263118
9999999
Not Available
3
BOLT-1/2-13 X5/8 HHCS 304 SS
7520756
$10,49 Unit Price incl. VAT
4
WASHER-CLEAN OUT .51X75X.09
7557077
$14,69 Unit Price incl. VAT
5
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
6
EXHAUST SOCKET SEAL
3610181
$57,74 Unit Price incl. VAT
7
EXHAUST SEALING GASKET
5263806
9999999
Not Available
8
WASHER 15.4 X 38.1 X 7.9 RUB
5414945
$9,44 Unit Price incl. VAT
9
SPRING
7041789
$16,79 Unit Price incl. VAT
10
HX SCREW 8MMX1.25PX22MML
7518984
$14,69 Unit Price incl. VAT
11
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
12
WASHER
7555716
$3,14 Unit Price incl. VAT
13
SILENCER MOUNT GROMMET
5413383
$9,44 Unit Price incl. VAT
14
BOLT
7515316
$4,19 Unit Price incl. VAT
15
VIBRATION DAMPER
5414946
$9,44 Unit Price incl. VAT
16
BUSHING
5010192
$12,59 Unit Price incl. VAT
17
MOUNT-EXHAUST LOWER
5258177
9999999
Not Available

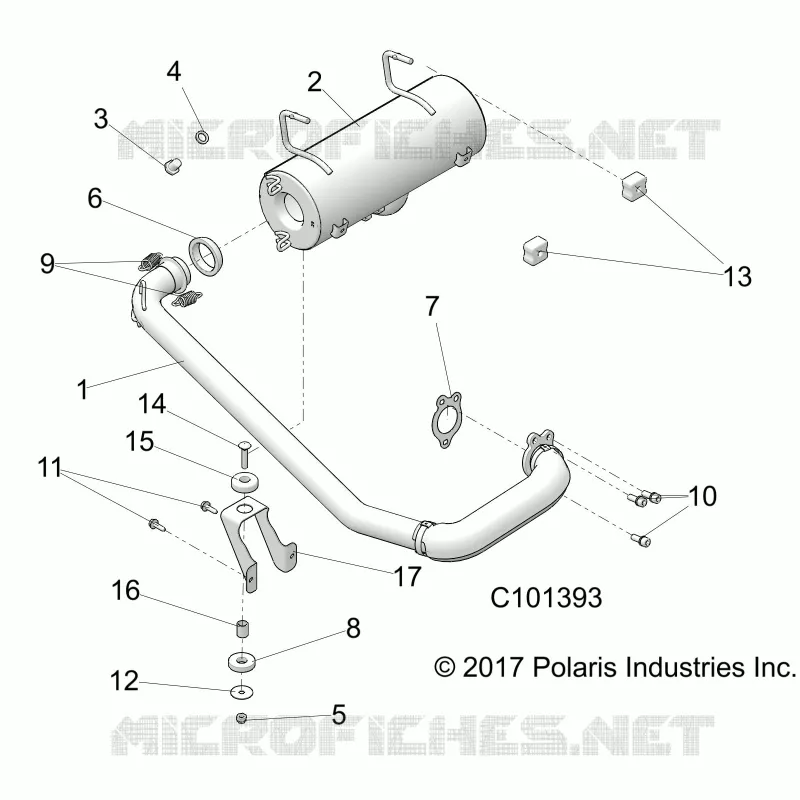

Find the detailed ENGINE, EXHAUST SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
