1
RADIATOR ASSEMBLY; CORE
1241012
9999999
Not Available
2
FAN AND MOTOR ASSEMBLY
2411330
$303,96 Unit Price incl. VAT
3
SPACER-6.6IDX19ODX15 NYL BLK
5137361
$10,49 Unit Price incl. VAT
4
RADIATOR MOUNT BUSHING; LOWER
5410584
$10,49 Unit Price incl. VAT
5
SCREW
7516827
$12,59 Unit Price incl. VAT
6
PRESSURE CAP
1240300
$73,49 Unit Price incl. VAT
7
TUBE-COOLANT 3/4 ENG OUT
5140811
9999999
Not Available
8
HOSE-COOLANT REAR ENG OUT
5416035
9999999
Not Available
9
HOSE-COOLANT
5415709
9999999
Not Available
10
TUBE-COOLANT 3/4 ENG IN
5140812
9999999
Not Available
11
HOSE-COOLANT REAR ENG IN
5416033
9999999
Not Available
12
HOSE-COOLANT ENGINE INLET
5415129
$73,49 Unit Price incl. VAT
13
HOSE-COOLANT BYPASS
5415447
9999999
Not Available
14
HOSE-RADIATOR ACE 570
5416034
9999999
Not Available
15
CLAMP-HOSE 13/16 -1 1/2
7081174
$13,64 Unit Price incl. VAT
16
SURGE TANK
5436936
$152,24 Unit Price incl. VAT
17
FITTING 90 DEGREE
7052065
$13,64 Unit Price incl. VAT
18
OVERFLOW CAP
5430743
$10,49 Unit Price incl. VAT
19
CAP PLUG9X(GRN) FLEX TEMP(10)
5433774
$10,49 Unit Price incl. VAT
20
COOLANT REMOTE FILLER; SMALL
5439079
$62,99 Unit Price incl. VAT
21
GASKET
5810279
$4,19 Unit Price incl. VAT
22
FUEL LINE; 1/4 ID
84500031525
Not Available
23
RADIATOR MOUNT; BLACK
5262753329
Not Available
24
RADIATOR MOUNT; UPPER; BLACK
5262754329
Not Available
25
BATTERY PAD
5810290
5810290-CO
$13,64 Unit Price incl. VAT
26
CLAMP-COOLANT LINES
5258169
9999999
Not Available
27
SPRINGBAND CLAMP; 27/12; GREEN
7080841
$13,64 Unit Price incl. VAT
28
COOLANT HOSE; FRONT
5415876
9999999
Not Available
29
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
30
SCR-TFHFL-M6X1.0X25 ZOD
7519342
$3,14 Unit Price incl. VAT
31
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
32
1/4 SAEJ2002;EPDM HOSE;600CM
8450120600
Not Available
33
COOLANT TUBE BRACKET
5451221
$16,79 Unit Price incl. VAT
34
SCREW
7512084
$2,09 Unit Price incl. VAT
35
SPRING BAND CLAMPS; 32/12
7080843
$7,34 Unit Price incl. VAT
36
DART CLIP; PLASTIC
7670090
$2,09 Unit Price incl. VAT
37
TEE CONNECTOR; 1 X 1 X 0.5
7052530
$10,49 Unit Price incl. VAT
38
SPRINGBAND CLAMP; 35/12
7080844
$19,94 Unit Price incl. VAT
39
HOSE CLAMP
7080474
$13,64 Unit Price incl. VAT
40
CLAMP-HOSE 1.312 VINYL COATED
7080851
9999999
Not Available
41
SCREW
7512026
$2,09 Unit Price incl. VAT
42
CONDUIT-FLEX 1.00 ID PE 10CM
552179310
Not Available
43
HOSE CLAMP
7080807
$17,84 Unit Price incl. VAT
44
HOSE CLAMP; 25-40 MM
7081192
$14,69 Unit Price incl. VAT
45
CLAMP-VINYL COATED;1.00IN ID
7081854
$10,49 Unit Price incl. VAT
46
BRKT-HOSE COOLANT
5264570
9999999
Not Available

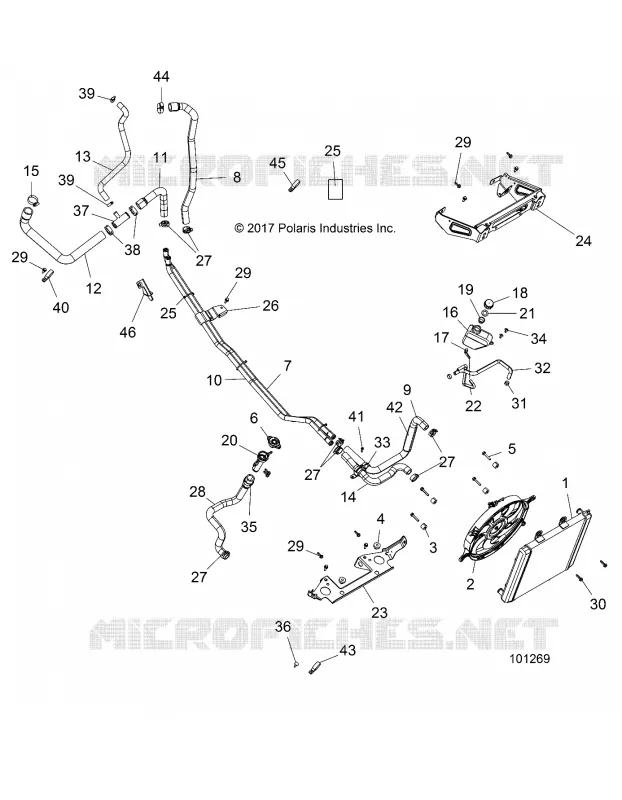

Find the detailed ENGINE, COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
