1
Engine displacement
650
2
Year
2023
3
Trim
650 INDY SP 137
4
Parts Catalog
REAR SUSPENSION
5
Parts Diagram
Parts Catalog
SUSPENSION, SHOCK MOUNTING, REAR SUSP.
by
SWAY BAR
REAR SUSPENSION
1
1
1
2
2
3
3
3
3
4
4
5
5
5
6
6
7
7
8
9
9
9
9
9
9
10
10
10
11
12
13
14
14
15
16
17
18
19
19
20
21
22
1
HEX FLANGE SCREW; 10 MM X 1.5 MM 35 MM
7518957
$6,29 Unit Price incl. VAT
2
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
3
WASHER 10.5 X 24 X 1.2446
7556545
$6,29 Unit Price incl. VAT
4
HEX FLANGE SCREW; 10 MM X 1.5 MM X 40
7519216
$9,44 Unit Price incl. VAT
5
CLIP-TRACK FLAT 012-0107 (10
5251273
$18,89 Unit Price incl. VAT
5
LONG GUIDE TRACK CLIP
5251274
$13,64 Unit Price incl. VAT
5
TRACK-15X137 1.25 RIPSAW II
5414654
$1 125,59 Unit Price incl. VAT
6
WASHER
7556153
$3,66 Unit Price incl. VAT
7
SCR-M10X1.5X35 TX/TRUSS ZODP30
7520369
$11,54 Unit Price incl. VAT
8
SPRING WASHER; .406 X 1.25 X .125
7556490
$9,44 Unit Price incl. VAT
9
BEARING-.7874X1.6535X.4724 NTN
3514384
3515142
$34,64 Unit Price incl. VAT
9
WHEEL SPOKE ASSEMBLY; 7.25
1590459
$82,94 Unit Price incl. VAT
9
RETAINING RING
7710444
$15,74 Unit Price incl. VAT
10
SPACER; IDLER
5432535
$20,99 Unit Price incl. VAT
11
SHAFT-IDLER M10X1.5THDX336 LG
5136745
$62,99 Unit Price incl. VAT
12
IDLER SPACER; LONG
5333285
$20,99 Unit Price incl. VAT
13
BUSHING
7555918
$3,14 Unit Price incl. VAT
14
HEX FLANGE SCREW 10MM X 1.25MM X 250MM
7519327
$36,74 Unit Price incl. VAT
15
CROSS SHAFT; RMK
5137418
$62,99 Unit Price incl. VAT
16
PIVOT ARM WELD; REAR; BLACK
1543905329
Not Available
17
LUBRICATION FITTING
7080424
$9,44 Unit Price incl. VAT
18
WELD-H-BRACKET ECOAT
1544014329
Not Available
19
WSHR-M10.5X25X2.4 ZPC
7556559
$6,29 Unit Price incl. VAT
20
SHAFT-H-BRKT CC AL
5140492
$68,24 Unit Price incl. VAT
21
SFT-M10X1.5IDX17.47ODX220.1 LG
5136572
$52,49 Unit Price incl. VAT
22
CROSS SHAFT; MACHINED
5139172
$47,24 Unit Price incl. VAT

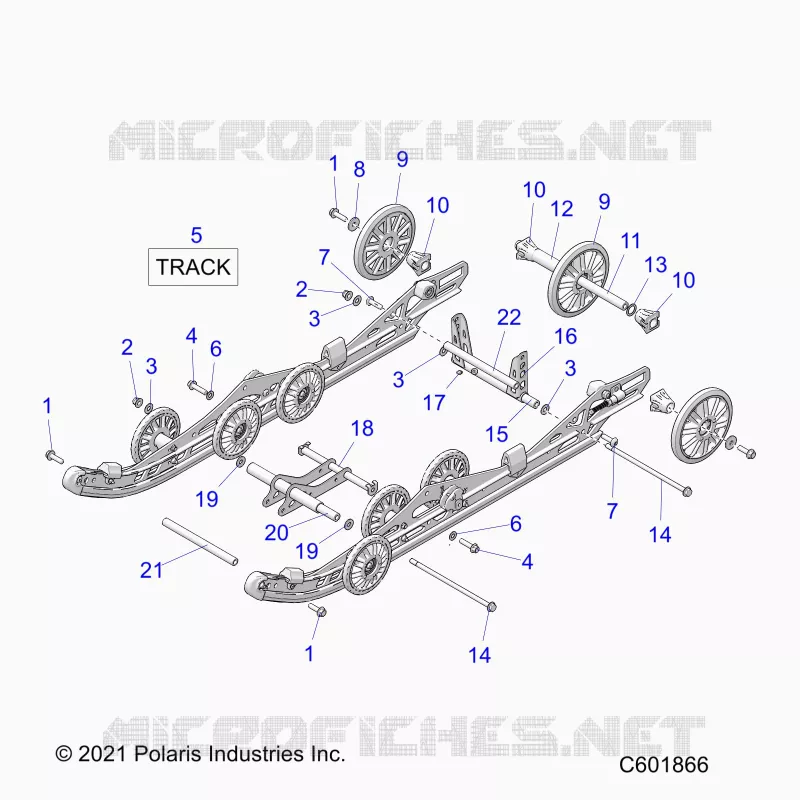

Find the detailed REAR SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
