1
Engine displacement
650
2
Year
2023
3
Trim
650 INDY SP 137
4
Parts Catalog
CHASSIS, CLUTCH GUARD, FOOTRESTS, AND RUNNINGBOARDS
5
Parts Diagram
Parts Catalog
CHASSIS, TIE ROD BOOT ASM.
by
CHASSIS, BULKHEAD ASM.
CHASSIS, CLUTCH GUARD, FOOTRESTS, AND RUNNINGBOARDS
1
2
2
3
4
4
4
4
4
4
4
4
4
4
5
5
6
7
7
8
9
9
9
10
10
11
12
13
14
15
16
17
18
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
CLOSEOFF-FOOTREST RH
5272699
$157,49 Unit Price incl. VAT
2
RIVET 4.8 MM
7661973
$2,09 Unit Price incl. VAT
3
ASM-CONSOLE SUPPORT
1027963
1028623
$62,99 Unit Price incl. VAT
4
RIVET
7661637
$2,09 Unit Price incl. VAT
5
U CLIP; 6.0 MM X 1.0 MM
7547366
$9,44 Unit Price incl. VAT
6
SUPPORT-FOOTREST RH MACH BLK
5143267067
Not Available
7
SCR-TXPH-M6X1.0X25 P80 ZC
7521292
$4,19 Unit Price incl. VAT
8
ASM-RUNNINGBOARD 137 RH BLK
1027427067
Not Available
9
HEX FLANGE NUT; 6 MM X 1.0 MM
7547453
$7,34 Unit Price incl. VAT
10
WASHER
7556064
$9,44 Unit Price incl. VAT
11
ASM-CLUTCH GUARD SUPPORT
1025155
$73,49 Unit Price incl. VAT
12
ASM-RUNNINGBOARD 137 LH BLK
1027426067
Not Available
13
SUPPORT-FOOTREST LH MACH BLK
5143266067
Not Available
14
CLOSEOFF-FOOTREST LH
5269374
5274617
$157,49 Unit Price incl. VAT
15
BOLT-CARR M6X1.0X20 8.8 ZOD
7518994
$6,29 Unit Price incl. VAT
16
ASM-GUARD CLUTCH
1025167
1029233
$125,99 Unit Price incl. VAT
17
ASM-BRKT OIL BOTTLE FRONT
1025803
1029233
$125,99 Unit Price incl. VAT
18
ASM-BRKT OIL BOTTLE REAR
1025804
1029233
$125,99 Unit Price incl. VAT

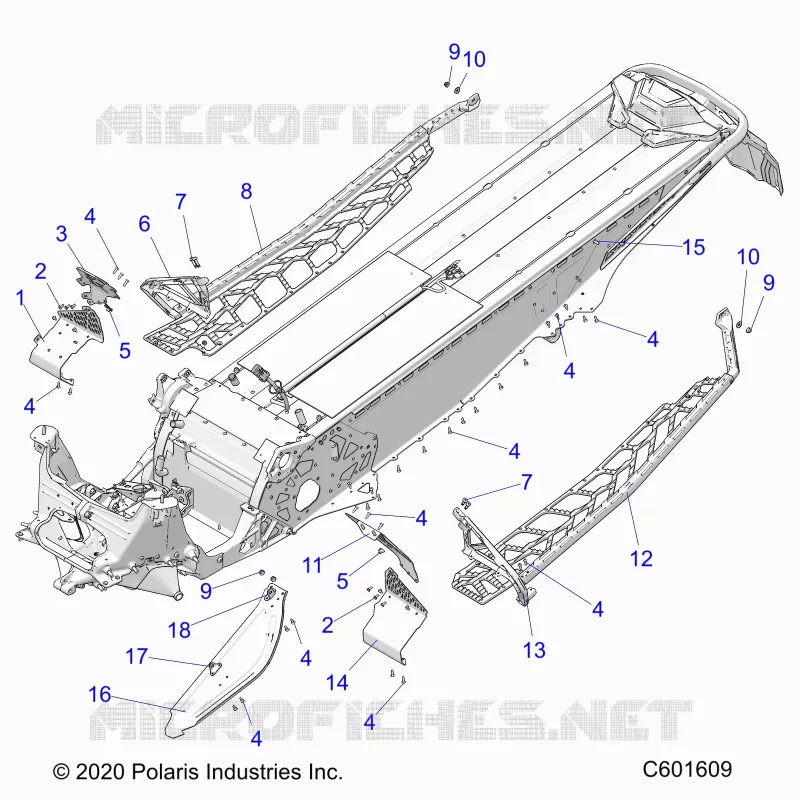

Find the detailed CHASSIS, CLUTCH GUARD, FOOTRESTS, AND RUNNINGBOARDS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
