ENGINE, COOLING SYSTEM for POLARIS SCRAMBLER 850 from 2018

DRIVE TRAIN, REAR GEARCASE INTERNALS

ENGINE, COOLING SYSTEM AND WATER PUMP

ENGINE, COOLING SYSTEM

1

HOSE-RADIATOR ENGINE OUT 25MM

5414392

$104,99 Unit Price incl. VAT

2

RADIATOR HOSE; ENGINE IN; 25 MM

5414391

$104,99 Unit Price incl. VAT

3

BOTTLE ASSEMBLY; COOLANT RECOVERY

1240406

$141,74 Unit Price incl. VAT

4

SPRINGBAND CLAMP; 35/12

7080844

$19,94 Unit Price incl. VAT

5

GROMMET AND INSERT ASSEMBLY

5413509

$30,23 Unit Price incl. VAT

6

NYLOCK FLANGE NUT; 6 MM

7547274

7548027

$3,14 Unit Price incl. VAT

7

SCR-HXFL-M6X1.0X30 RIE DGPNT

7519202

$7,34 Unit Price incl. VAT

8

PRESSURE CAP; 13 PSI

1240466

$104,99 Unit Price incl. VAT

9

ASM-RADIATOR

1240596

1241437

$1 118,24 Unit Price incl. VAT

9

RADIATOR

1240404

$871,49 Unit Price incl. VAT

10

RADIATOR MOUNT GROMMET; LOWER

5413510

$30,23 Unit Price incl. VAT

11

CLAMP-HOSE 1.312 VINYL COATED

7080851

9999999

Not Available

12

BOLT-M6X1.0X15 HXFLG TAP/R-OD

7518513

9999999

Not Available

13

SPRING BAND CLAMPS; 32/12

7080843

$7,34 Unit Price incl. VAT

14

OVERFLOW CAP

5430743

$10,49 Unit Price incl. VAT

15

GASKET

5810279

$4,19 Unit Price incl. VAT

16

CAP PLUG9X(GRN) FLEX TEMP(10)

5433774

$10,49 Unit Price incl. VAT

17

BOTTLE-COOLANT RECOVERY

5437257

1240406

$141,74 Unit Price incl. VAT

18

RADIATOR FAN SHROUD ASM SPORTSMAN XP

2411578

2415279

$467,24 Unit Price incl. VAT

19

HOSE CLAMP; 25-40 MM

7081192

$14,69 Unit Price incl. VAT

20

COOLANT LINE; 27 CM

845012827

Not Available

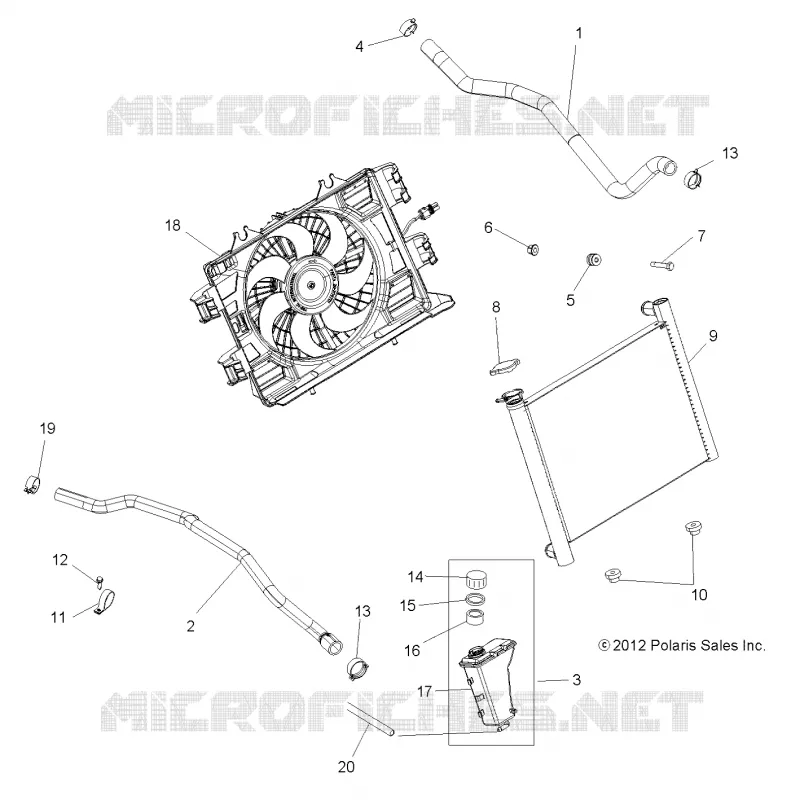

Find the detailed ENGINE, COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
