REAR SUSPENSION for POLARIS SCRAMBLER 850 from 2018

REAR SUSPENSION

1

HEX HEAD FLANGE BOLT 10MM X 1.5MM X140MM

7518467

$10,49 Unit Price incl. VAT

2

HEX FLANGE NUT; 10 MM X 1.5 MM

7547313

$2,09 Unit Price incl. VAT

3

STANDARD BUSHING; ORV

5439874

$4,19 Unit Price incl. VAT

4

CONTROL ARM WELD; REAR; LEFT

1017216067

Not Available

4

CONTROL ARM WELD; REAR; UPPER; RIGHT

1017217067

Not Available

5

FITTING LUBRICATION THREADED(1

7080433

$2,09 Unit Price incl. VAT

6

A-ARM SHAFT

5137346

$31,49 Unit Price incl. VAT

7

BOLT 10 MM X 1.5 MM X 85

7518466

$9,44 Unit Price incl. VAT

8

CONTROL ARM; REAR; LOWER; LEFT; GS BLK

1019410067

Not Available

8

CONTROL ARM; REAR; LOWER; RIGHT; GS BLK

1019411067

Not Available

9

HEX HEAD FLANGE BOLT; 1.5 MM X 130 MM

7518675

$10,49 Unit Price incl. VAT

10

PIVOT SHAFT; 104.9 MM

5137590

$16,79 Unit Price incl. VAT

11

LOWER CONTROL ARM A ARM SHAFT

5136473

5145086

$68,24 Unit Price incl. VAT

12

CONTROL ARM BUSHING; LOWER; .75 IN

5437651

$12,59 Unit Price incl. VAT

13

PIVOT SHAFT; 210.27 MM; ZINC YELLOW

5137594

$16,79 Unit Price incl. VAT

14

A-ARM BUSHING; LONG; 102.36 MM

5436973

$9,44 Unit Price incl. VAT

15

HEX FLANGE SCREW 10MM X 1.25MM X 235MM

7519086

$52,49 Unit Price incl. VAT

16

STANDARD BUSHING; ORV

5439874

$4,19 Unit Price incl. VAT

17

ZERK FITTING

7080510

$10,49 Unit Price incl. VAT

18

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

19

WASHER

7556153

$3,66 Unit Price incl. VAT

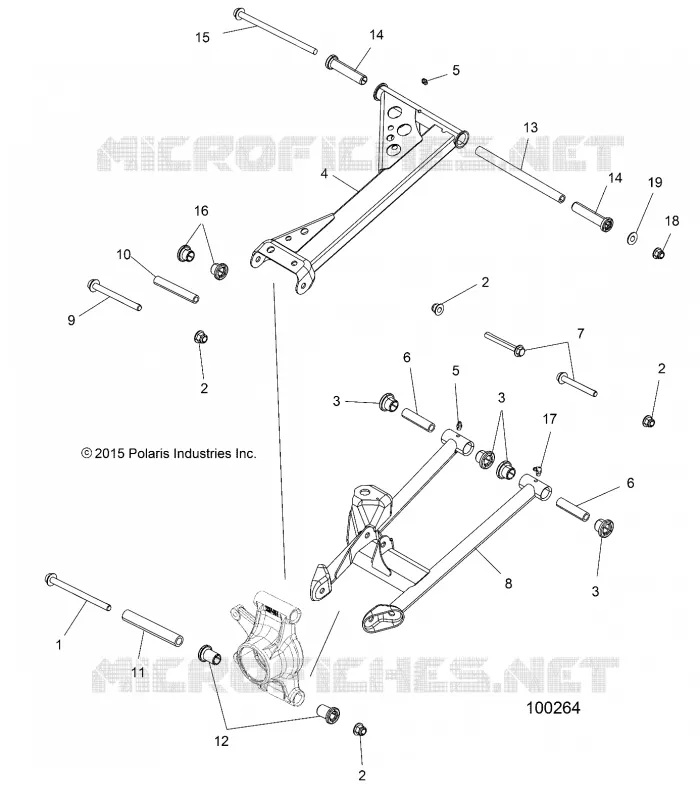

Find the detailed REAR SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
