Engine displacement
500
2
Year
2002
3
Trim
500 WIDETRAK LX
4
Parts Catalog
MAGNETO
5
Parts Diagram
Parts Catalog
OIL PUMP
by
RECOIL STARTER
MAGNETO
1
2
3
4
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
1
2
3
4
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
1
COUPLER
3083909
9999999
Not Available
2
GROMMET
3082969
9999999
Not Available
3
HARNESS-WIRE
3087007
9999999
Not Available
4
ASM. SCREW&WASHER(10)
3081260
9999999
Not Available
5
CLAMP
3081296
9999999
Not Available
6
PLATE COIL
3083987
9999999
Not Available
6
PLATE ASSEMBLY
3087004
9999999
Not Available
7
STATOR
3083991
9999999
Not Available
8
ASM. SCREW AND WASHER(10)
3082365
9999999
Not Available
9
FLYWHEEL ASSEMBLY
3087005
9999999
Not Available
10
ASM. SCREW & WASHER
3083423
9999999
Not Available
11
COIL EXCITER
3083984
9999999
Not Available
12
ASM. SCREW&WASHER(10)
3082175
9999999
Not Available
13
COUPLER MALE
3081513
9999999
Not Available
14
RESISTOR PLUG CAP
4020129
4083595
$52,49 Unit Price incl. VAT
15
IGNITION COIL
3087006
9999999
Not Available
16
SCREW&WASHER (10)
3083784
9999999
Not Available
17
RUBBER NUT
3083240
9999999
Not Available
18
WASHER
3087008
9999999
Not Available

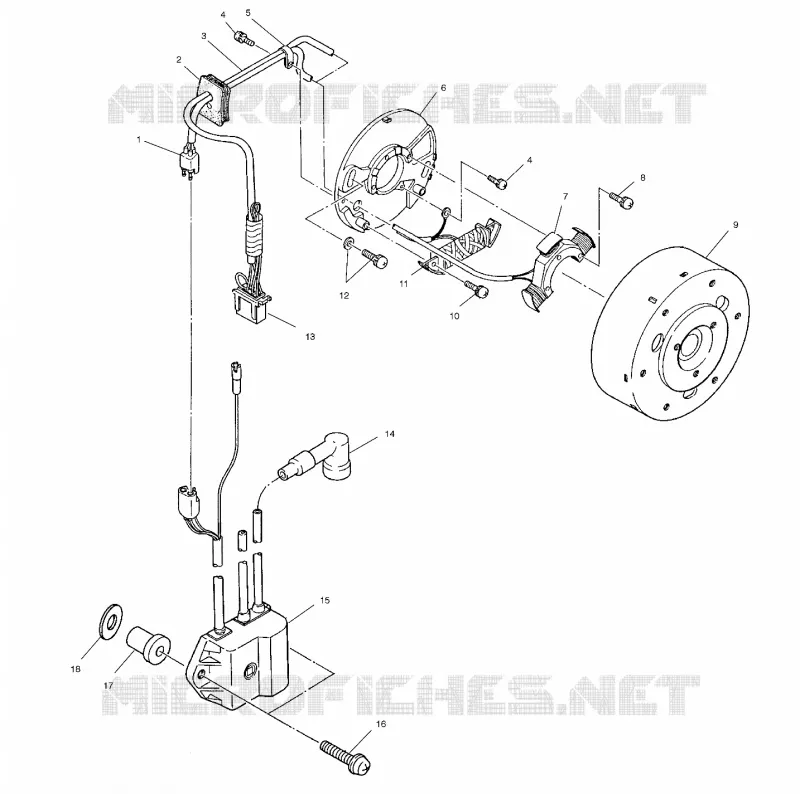

Find the detailed MAGNETO POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
