Parts Catalog
BRAKES, BRAKE PEDAL AND MASTER CYLINDER
5
Parts Diagram
Parts Catalog
BRAKE LINES
by
DRIVE TRAIN, MAIN GEARCASE
BRAKES, BRAKE PEDAL AND MASTER CYLINDER
12
12
13
13
14
14
15
15
16
16
16
16
17
17
18
18
19
19
1
2-EAR RESERVOIR BRAKE ASSEMBLY; TALL
1911224
$68,24 Unit Price incl. VAT
2
DIAPHRAGM-RESERVOIR BRAKE
5413262
$9,44 Unit Price incl. VAT
3
RING-RESERVOIR BRAKE
5437041
$10,49 Unit Price incl. VAT
4
HEX HEAD FLANGE BOLT 6MMX1.0MMX25MM BLK
7518533
$2,09 Unit Price incl. VAT
5
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
6
HOSE-RESERVOIR BRAKE 826MM
1911267826
Not Available
7
MASTER CYLINDER ASSEMBLY
1913033
$257,24 Unit Price incl. VAT
8
NYLOCK FLANGE NUT; 6 MM
7547274
7548027
$3,14 Unit Price incl. VAT
9
SCR-M6X1.0X45 HX-FL-Y/D
7517950
$10,49 Unit Price incl. VAT
10
BRKT-BRAKE MOUNT;BLK
5266924329
Not Available
11
HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM
7518555
$4,19 Unit Price incl. VAT
12
HEX FLANGE BOLT; 8 MM X 1.25 MM X 50 MM
7518677
$7,34 Unit Price incl. VAT
13
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
14
PEDAL PIVOT BUSHING
5433189
$7,34 Unit Price incl. VAT
15
TORSION SPRING; BRAKE
7041750
$16,79 Unit Price incl. VAT
16
WELD-LEVER BRAKE WL SPMN BLK
1913361067
Not Available
16
WELD-LEVER BRAKE SPMN XP BLK
1913360067
Not Available
17
BOLT-M10X1.25X50 HXFLG-OLIVE D
7518559
$10,49 Unit Price incl. VAT
18
SPACER-12.7X10.2X30.5MM
5135720
$12,59 Unit Price incl. VAT
19
NYLOK NUT
7546703
$2,09 Unit Price incl. VAT

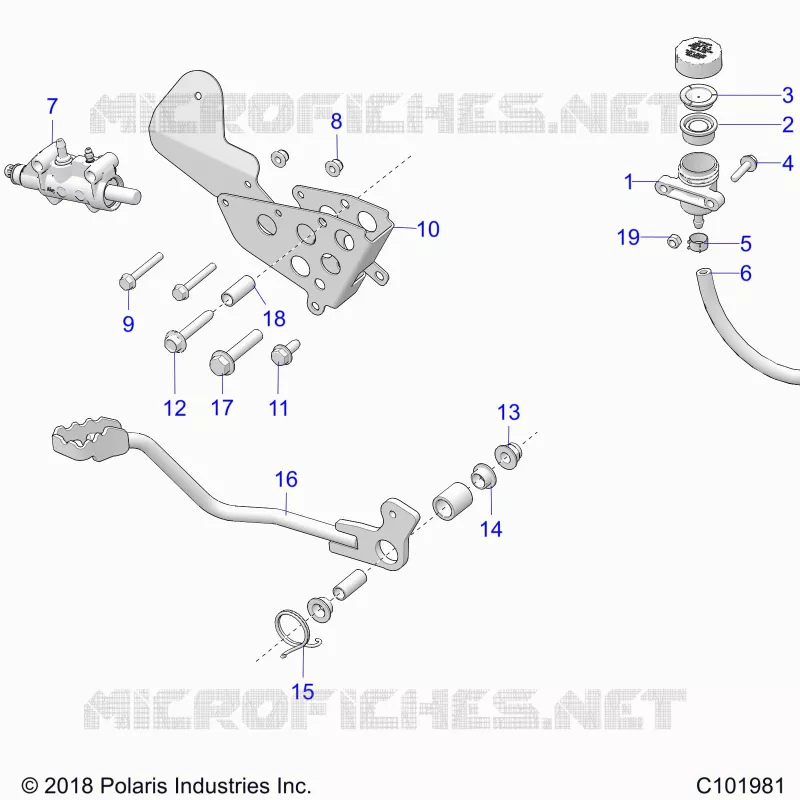

Find the detailed BRAKES, BRAKE PEDAL AND MASTER CYLINDER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
