1
Engine displacement
1000
2
Year
2020
3
Trim
SPORTSMAN 1000 XP 48"
4
Parts Catalog
REAR SUSPENSION CONTROL ARMS- A20SXD95AG
5
Parts Diagram
Parts Catalog
REAR SUSPENSION CONTROL ARMS
by
DECALSS
REAR SUSPENSION CONTROL ARMS- A20SXD95AG
3
3
4
4
4
4
5
5
6
6
7
7
8
8
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
1
HEX HEAD FLANGE BOLT 10MM X 1.5MM X140MM
7518467
$10,49 Unit Price incl. VAT
2
HEX FLANGE NUT; 10 MM X 1.5 MM
7547313
$2,09 Unit Price incl. VAT
3
STANDARD BUSHING; ORV
5439874
$4,19 Unit Price incl. VAT
4
WELD-UCA REAR RH BLK
1025620067
Not Available
4
WELD-UCA REAR LH BLK
1025619067
Not Available
5
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
6
A-ARM SHAFT
5137346
$31,49 Unit Price incl. VAT
7
BOLT 10 MM X 1.5 MM X 85
7518466
$9,44 Unit Price incl. VAT
8
CONTROL ARM; REAR; LOWER; LEFT; GS BLK
1019410067
Not Available
8
CONTROL ARM; REAR; LOWER; RIGHT; GS BLK
1019411067
Not Available
9
HEX HEAD FLANGE BOLT; 1.5 MM X 130 MM
7518675
$10,49 Unit Price incl. VAT
10
PIVOT SHAFT; 104.9 MM
5137590
$16,79 Unit Price incl. VAT
11
LOWER CONTROL ARM A ARM SHAFT
5136473
5145086
$68,24 Unit Price incl. VAT
12
CONTROL ARM BUSHING; LOWER; .75 IN
5437651
$12,59 Unit Price incl. VAT
13
PIVOT SHAFT; 210.27 MM; ZINC YELLOW
5137594
$16,79 Unit Price incl. VAT
14
A-ARM BUSHING; LONG; 102.36 MM
5436973
$9,44 Unit Price incl. VAT
15
HEX FLANGE SCREW 10MM X 1.25MM X 235MM
7519086
$52,49 Unit Price incl. VAT
16
ZERK FITTING
7080510
$10,49 Unit Price incl. VAT
17
WASHER
7556153
$3,66 Unit Price incl. VAT
18
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT

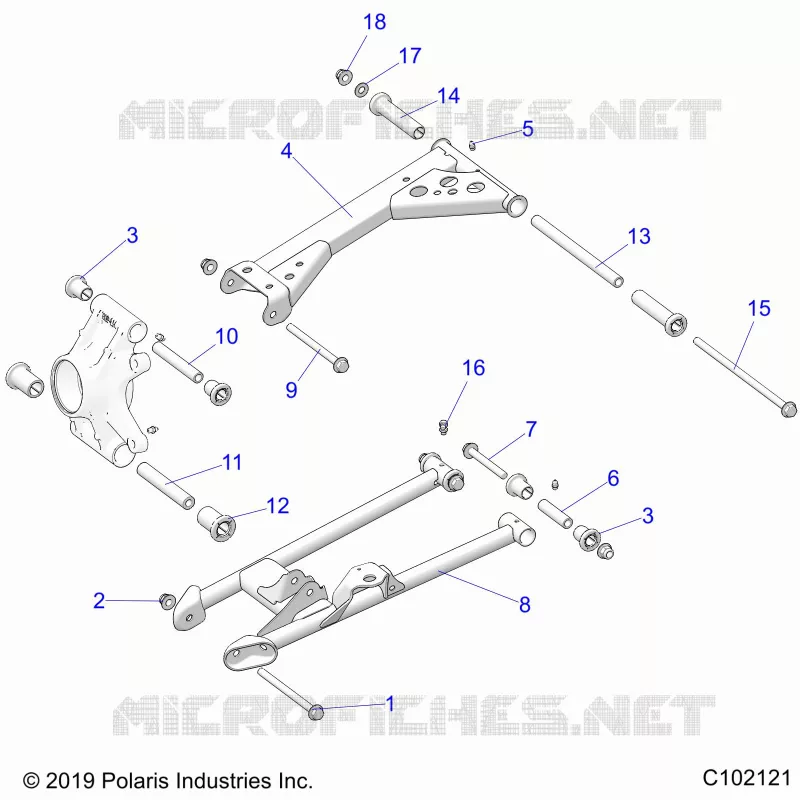

Find the detailed REAR SUSPENSION CONTROL ARMS- A20SXD95AG POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
